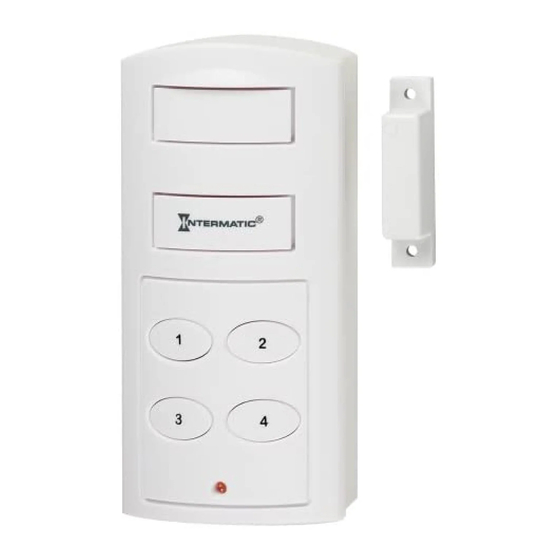

Intermatic SP130B Instructions

Wireless Door Alarm
with Keypad
LOCATION OF CONTROLS
1. Siren
2. Keypad
3. Status LED
4. Battery Compartment
BATTERY INSTALLATION (SEE FIGURES BELOW)
Access the battery compartment on the rear of the unit by removing
the back cover. Press on the upper center part of the cover and slide it
down. Insert four (4) "AA" batteries (not included) following the polar-
ity diagram. When the last battery is inserted, the Battery Low LED will
flash and the Siren will chirp to indicate the batteries are installed
properly and 4-digit code can be set. Replace the battery compartment
cover. The Siren will chirp every 10-15 seconds when the batteries
need replacing. A.C. accessory SP550B can be used instead of
batteries. Output plug must be inserted into AC power plug, located
above in left upper corner of battery compartment.
Slide down
to expose
battery
compartment
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries
as indicated in the battery compartment. Reversed batteries may
cause damage to the device.
3. Do not mix different type of batteries together (e.g. Alkaline and
Carbon-zinc) or old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the
batteries to prevent damage or injury from possible battery
leakage.
5. Do not try to recharge batteries not intended to be recharged;
they can overheat and rupture. (Follow battery manufacturer's
directions.)
6. Will not function properly if batteries are not maintained. Check
performance regularly.
A.C. Power
Plug
INTERMATIC INCORPORATED
SPRING GROVE, ILLINOIS 60081-9698
1
2
4
3
NOTE: Not intended for use in exposed outdoor applications. Will not
operate properly if used in below freezing temperatures (32˚F) or damp
locations.
Will not operate properly if any metal barrier interferes with the space
between the magnetic contact and the alarm unit.
PROGRAMMING THE ALARM
The desired 4-digit code (which cannot be four identical numbers)
must be set immediately (within 5 seconds) after inserting the
batteries. To set the code, select your 4-digit access code, and simply
press the desired 4 digits on the keypad.
NOTE: The alarm must be reprogrammed with your personal code
every time the batteries are removed and replaced.
INSTALLATION
Place the unit in the desired location, preferable
next to the front or back door or a window. Install
the unit using the supplied larger screw (see figure
at right). Install the Magnetic Contact to the right
and approximately 1 1/4 inches below the top of
the alarm unit and flush with its edge using the
included double sided tape.
OPERATION
When leaving the protected area, press keypad
number 4. The Status LED will flash and the Siren
will chirp to indicate the unit is armed. There will
be a delay of 30 seconds to enable you to leave the
protected area before the alarm sounds. When
contact is broken, the alarm will sound for
approximately 60 seconds and reset for 15
seconds. If contact remains broken the alarm will continue to repeat
the cycle.
WARNING: THE ALARM SIREN IS VERY LOUD; PLEASE DO NOT
ALLOW IT TO SOUND FOR LONG LENGTHS OF TIME.
WARNING: NOT INTENDED FOR USE AS A RESIDENTIAL WATER
HAZARD ENTRANCE ALARM.
When returning to the protected area, simply press your personal
alarm code within 10 seconds. This will disarm the unit. The 10
seconds delay enables you to get to the alarm before it sounds.
NOTE: When the fourth digit of your code is entered, the Battery Low
LED will flash and the Siren will chirp to indicate the unit is disarmed.
INSTRUCTIONS
MODEL SP130B
ART608E
