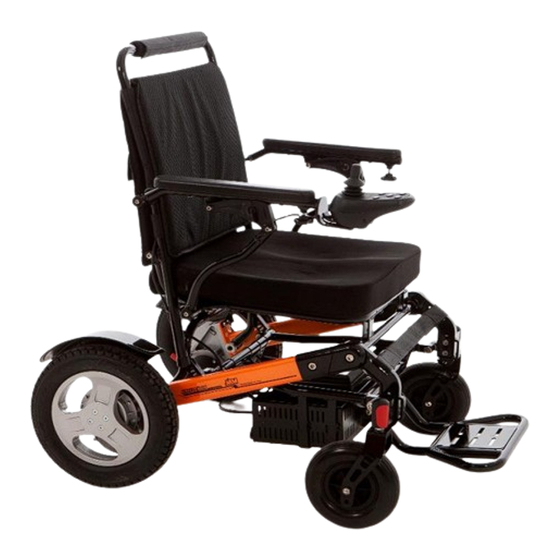

Monarch Ezi-Fold D10 Operating Manual

Fold power wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Fold Power Wheelchair D10
Operating Manual

Advertisement

Table of Contents
loading

Related Manuals for Monarch Ezi-Fold D10

Summary of Contents for Monarch Ezi-Fold D10

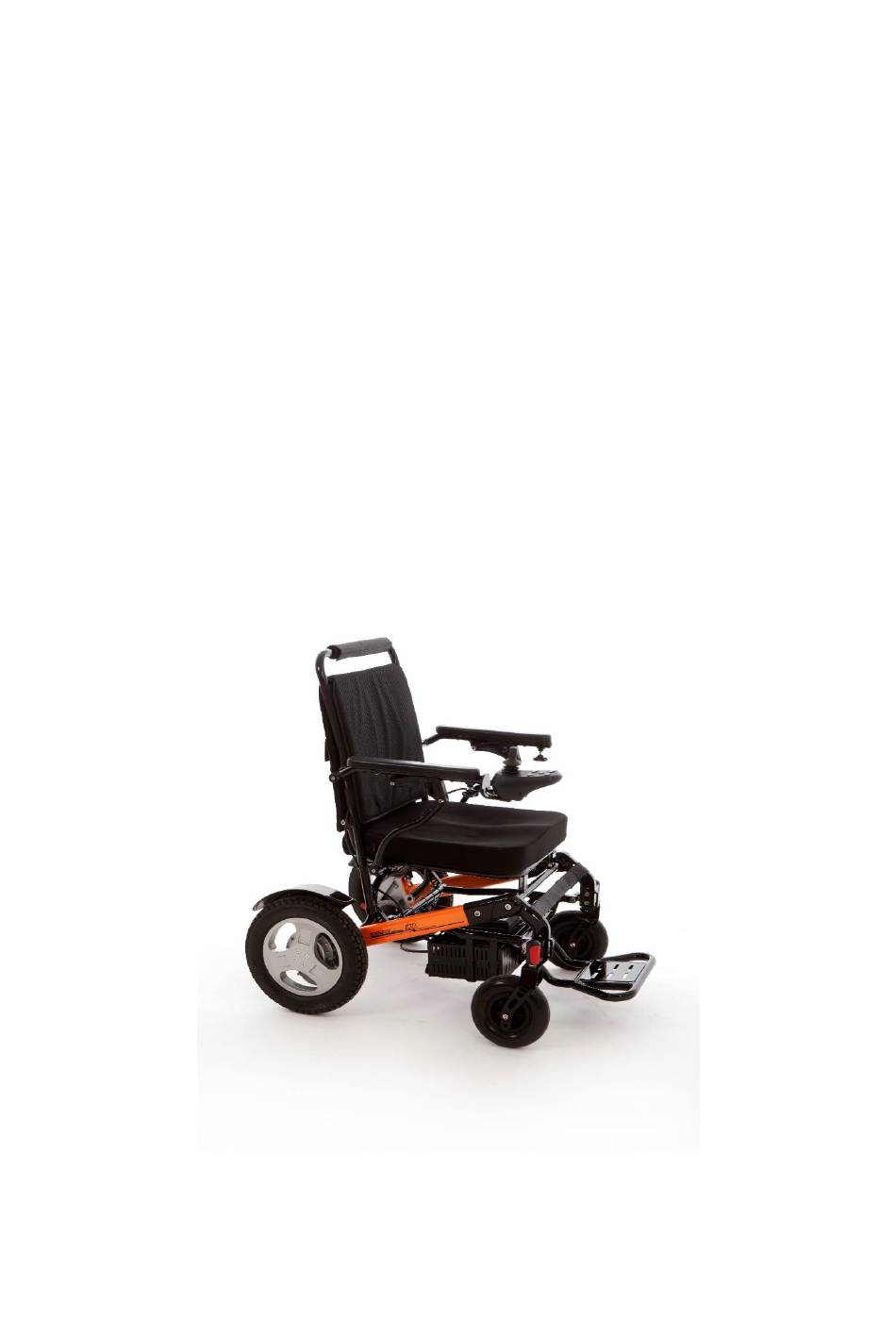

  • Page 1 Fold Power Wheelchair D10 Operating Manual...

  • Page 2: Table Of Contents

    Contents Introduction.........................1 Specifications........................2 Specification Diagram......................3 Safe Operation.........................4-5 Precautions.........................5 Maintenance........................6 Electromagnetic Interference....................7 Install Setup........................7-9 Controller..........................10 Basic operation.........................11 Charging Batteries.......................11-13 Free Wheel Mode......................13 Transporting Your Fold Power Wheelchair D10..............14 Trouble shootings......................15 Diagnostics........................16 Warranty..........................17 Guarantee Card.........................18...

  • Page 3: Introduction

    Introduction Dear User, Thank you for choosing the Ezi-Fold for your portable wheelchair transportation needs. It is important to read through this manual before operating your Ezi-Fold Power Wheelchair to become familiar with its features as well as its limitations and safety information. You will find the operation and care of your Ezi-Fold Power Wheelchair simple and easy.

  • Page 4: Specifications

    Specifications Model Ezi-Fold Material Aluminum alloy unfold size 940*650*975mm fold size 650*350*775mm loading capacity 150kg...
  • Page 5 Motor 250W*2pcs brushless motors Battery 24V 7AH*2 pcs lithium battery max speed 4 MPH Driving range 22KM 8”*1.25” PU solid wheels front wheels 12.5”*2.125” PU solid wheels rear wheels climbing slope max 8° charging time 6-8 hours width of armrest 510mm seat width 470 mm...

  • Page 6: Specification Diagram

    Specification Diagram...

  • Page 8: Safe Operation

    Safe Operation This is the most important section of manual; how to safely operate the Ezi-Fold Wheelchair. Please review this section thoroughly. ◎ General safety: a. Adjust the Ezi-Fold Wheelchair to your personal comfort level as much as possible. b. Take your time to learn how the Ezi-Fold Wheelchair works in a private space before you begin operating around others.
  • Page 9 ◎ Driving the Ezi-Fold Power Wheelchair (1) Be alert to the danger of motor vehicles on roads or in parking spaces. (2) At night or when it is hard to see, use reflective clothing and equipment. (3) The Ezi-Fold is designed for use on firm, even surface such as concrete, asphalt or indoor floor. (4) Do not operate the Ezi-Fold in sand, loose soil or over rough terrain, which could damage wheels, bearings, axles or motors, or loose fasteners.

  • Page 10: Precautions

    Precautions CAUTION: OPERATE SAFELY Do not operate the Ezi-Fold Power Wheelchair in water of any kind. Do not operate the Ezi-Fold Power Wheelchair up or down staircase or escalators. Do not operate the Ezi- Fold Power Wheelchair while on a moving vehicle such as a bus. Do not lean your body to reach out, causing a balance issue.

  • Page 11: Install Setup

    ◎ Batteries (1) Batteries are special lithium batteries designed specifically for use in the Ezi-Fold Power Wheelchair. (2) Read all battery instructions before attempting to change or charge batteries. (3) When you don’t use the Ezi-Fold wheelchair for long periods of time, please charge the battery every month to avoid the battery being damaged.
  • Page 12 3. To expand the Ezi-Fold, grasp the push bar and pull up while holding down on the seat to expand the chair and complete the assembly: Grasp push bar Hold down seat to expand...
  • Page 13 4. Sit on the chair and Lean backwards to make sure the clip locker which located below the seat to the rear of the Ezi-Fold, to lock the seat into place. This step is very important!!! 5. Install the controller into the open slot on the arm of the chair, on the right side (if user needed, can change to left side).
  • Page 14 7. Connect the batteries, using battery serial connection cable to make two batteries in series line (or you can use two batteries individually, no need to connect batteries in series line.), tightening joints. 8. Connect batteries to the CPU which the wire comes from the wheelchair and tightening joint. 9.

  • Page 15: Controller

    Controller The Ezi-Fold is equipped with a joystick style controller. Detail functions as shown: ◎ Controller and Driving Tips 1. Take some time in a safe, controlled environment to learn the operation of controller, the speed and the maneuverability of wheelchair. 2.

  • Page 16: Basic Operation

    Basic operation Before operating your Ezi-Fold, be sure to read all safety information and precautions included in this manual. Operate only in the appropriate environment after you have practiced operation the wheelchair and know how to work the controller. GET IN Be certain that the power is OFF before sitting in the seat of the Ezi-, with no light on the controller, make sure the footrest is down before getting into the wheelchair.
  • Page 17 1. Turn the power off. 2. Plug in the charger to the controller port (see below), please notice connect the charger cable first, then turn the power on. Controller Charge port 3. Allow your wheelchair to charge for 6-8 hours or when the light on the charger turns green, which means your batteries are full charged.
  • Page 18 2. Flip open the charger port protector on the front of battery. 3. Use the secondary charger pigtail to adapt the battery charger to plug into the battery directly. ◎ More information on the Fold Power Wheelchair D10 batteries... 1. The Fold Power Wheelchair comes with two charged 24V 7AH lithium batteries. 2.

  • Page 19: Free Wheel Mode

    13. Check the battery indicator light daily if you use the Ezi-Fold Wheelchair frequently. 14. Do not use any battery chargers that have not been certified by Monarch Mobility. 15. If damaged, do not handle the battery without protective gloves and eyewear.
  • Page 20 Push down two red levers on each wheel. Transporting Your Ezi-Fold To transport your Ezi-Fold Wheelchair, it is advised that you fold it up following the procedures below. Note: Never transport the power wheelchair in a tie up system (electric mode), as the Ezi-Fold is not compatible with them.

  • Page 21: Trouble Shootings

    4. Fold the wheelchair. 5. When folded, the seat cross bar can be used to move the wheelchair easily. Seat cross bar Trouble shootings The following represents the most common questions asked about the Ezi-Fold about everyday use; check this helpful guide or the operator’s manual for more information if you have a question about using your power wheelchair.

  • Page 22: Diagnostics

    3. Battery power is too low. 3. Charge the battery. Why is the wheelchair noisy or 1. Speed is set too low. 1. Raise the speed. At low vibrating when turning? speeds, the motor may sound or 2. Motor is damaged. feel strained.

  • Page 23: Warranty

    communicating with the dealer, provide the specific problems in detail as much as possible. No. 1 red light flash: indicates the pressure of battery is not full. No. 2 red light flash: indicates no signal of joystick. No.3 red light flash: indicates the wheelchair is charging. No.

  • Page 24: Guarantee Card

    maintenance and service, to make sure the work is down properly. The warranty does not cover: 1. Products damaged by user negligence. 2. products damaged accidentally. 3. Products damaged intentionally. 4. Products that have been subjected to negligence. 5. Products that have been subjected to abuse. 6.
