Summary of Contents for Saab 9-3

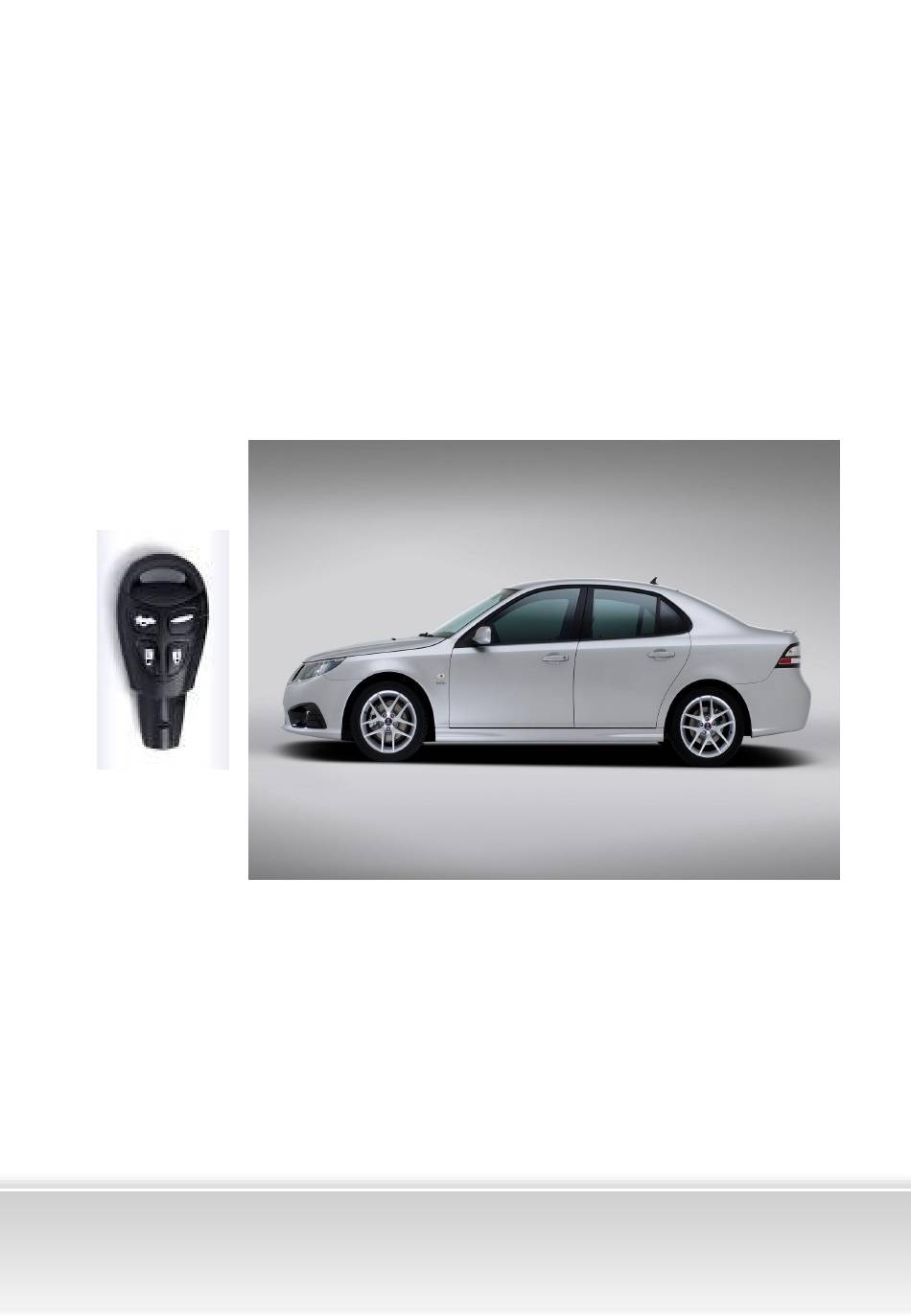

- Page 1 Saab 9-5 (9650) Key Programming Saab 9-3 (9440) Key Programming Saab Academy...

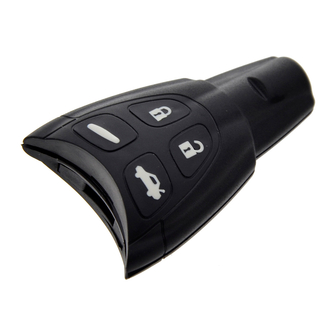

- Page 2 Saab 9-5 (9650) Key Programming Introduction: This course will show how to • program keys and remote controls for Saab 9-3 (9440). The programming is done with • Tech 2 under the menu Add/Remove. Security Access via TIS2WEB is •...
- Page 3 Saab 9-5 (9650) Key Programming Preparation Have all keys (new keys and You need to use the CANdi • • keys previously used for this diagnostic interface for Tech 2. vehicle) at hand.
- Page 4 Saab 9-5 (9650) Key Programming Tech 2 navigation Insert the key that can start the Connect Tech 2 to the diagnostic • • car (the valid key) and turn to connector. “ON”.
- Page 5 Saab 9-5 (9650) Key Programming Tech 2 navigation Power up Tech 2. Press “ENTER” and select “F0: • • Diagnostics”. The memory card software • version must be SAAB 148.000.
- Page 6 Saab 9-5 (9650) Key Programming Tech 2 navigation Select Model Year. Select “SAAB 9-3”. • •...
- Page 7 Saab 9-5 (9650) Key Programming Tech 2 navigation Select “F4: All”. Select “F7: Add / Remove”. • •...
- Page 8 Saab 9-5 (9650) Key Programming Tech 2 navigation Select “F2: Add Keys”. The text says this task will • • require Security Access from TIS2WEB and you need all vehicle keys at hand. Press “ENTER” to continue. •...
- Page 9 Saab 9-5 (9650) Key Programming Tech 2 navigation Power Tech2 Off and then On to Get Security Access from • • go to the start screen. TIS2WEB.
- Page 10 Saab 9-5 (9650) Key Programming Tech 2 navigation Return to task: Select “F2: Add Insert a key that can start the • • Keys”. car (a valid key) but do NOT turn it. Press OK to continue. •...
- Page 11 Saab 9-5 (9650) Key Programming Tech 2 navigation Press “Yes” to program the next Insert next key but do NOT turn • • key. Press OK to continue. •...
- Page 12 Saab 9-5 (9650) Key Programming Tech 2 navigation Press “No” when all keys are Remove the key. • • programmed.
- Page 13 Saab 9-5 (9650) Key Programming Tech 2 navigation Insert a key. Turn the key to “ON”. • •...
- Page 14 Saab 9-5 (9650) Key Programming Tech 2 navigation Vehicle DTCs are cleared. The programming is completed. • •...
- Page 15 Saab 9-5 (9650) Key Programming Saab 9-5 (9650) Key Programming Saab Academy...
- Page 16 Saab 9-5 (9650) Key Programming Introduction: This course will show how to • program keys (remote controls) for Saab 9-5 (9650). The programming is done with • the TIS2WEB SPS application and the MDI interface with USB The programming takes about •...
- Page 17 Saab 9-5 (9650) Key Programming Preparation Have all keys (new keys and Keep MDI and PC outside the • • keys previously used for this car. Connect MDI to DLC and to vehicle) at hand. PC with USB (Not wirelessly).
- Page 18 Saab 9-5 (9650) Key Programming Preparation Place a key to be programmed in Turn the parking lights on to • • the key pocket. All other keys keep the data bus awake. must be more than 10 m away from the car. Ignition must be OFF.
- Page 19 Saab 9-5 (9650) Key Programming Programming Start SPS. Select “J2534 MDI” and • • “Reprogram ECU”. Disregard of any initial message • to turn ignition on.
- Page 20 Saab 9-5 (9650) Key Programming Programming Select the correct car. Verify the VIN number. • •...
- Page 21 Saab 9-5 (9650) Key Programming Programming Select “Immobilizer Learn”. Press “Next”. • •...
- Page 22 Saab 9-5 (9650) Key Programming Programming Information only. Please read Select “Program Transponder or • • and click “Next” to continue. Remote Key”.
- Page 23 Saab 9-5 (9650) Key Programming Programming Security wait time of 12 Transponder key information • • minutes. have been deleted in the control unit. Proceed to program the first key. • Note: the first key is already positioned in the key pocket.
- Page 24 Saab 9-5 (9650) Key Programming Programming First key learned. Select “Yes” if you have more • • keys to learn.
- Page 25 Saab 9-5 (9650) Key Programming Programming Continue to program all keys. Ignition OFF when all keys are • • programmed.
- Page 26 Saab 9-5 (9650) Key Programming Post Programming Procedures Press and hold the Start button Follow the Post Programming • • until ignition goes on. instructions. Finish by synchronizing the remote controls.
- Page 27 Saab 9-5 (9650) Key Programming Post Programming Procedures The programming is finished. Press and hold the Start button • • to turn ignition on before clearing all vehicle DTCs. Switch off the lights. •...
- Page 28 Saab 9-5 (9650) Key Programming The keys should be programmed...
