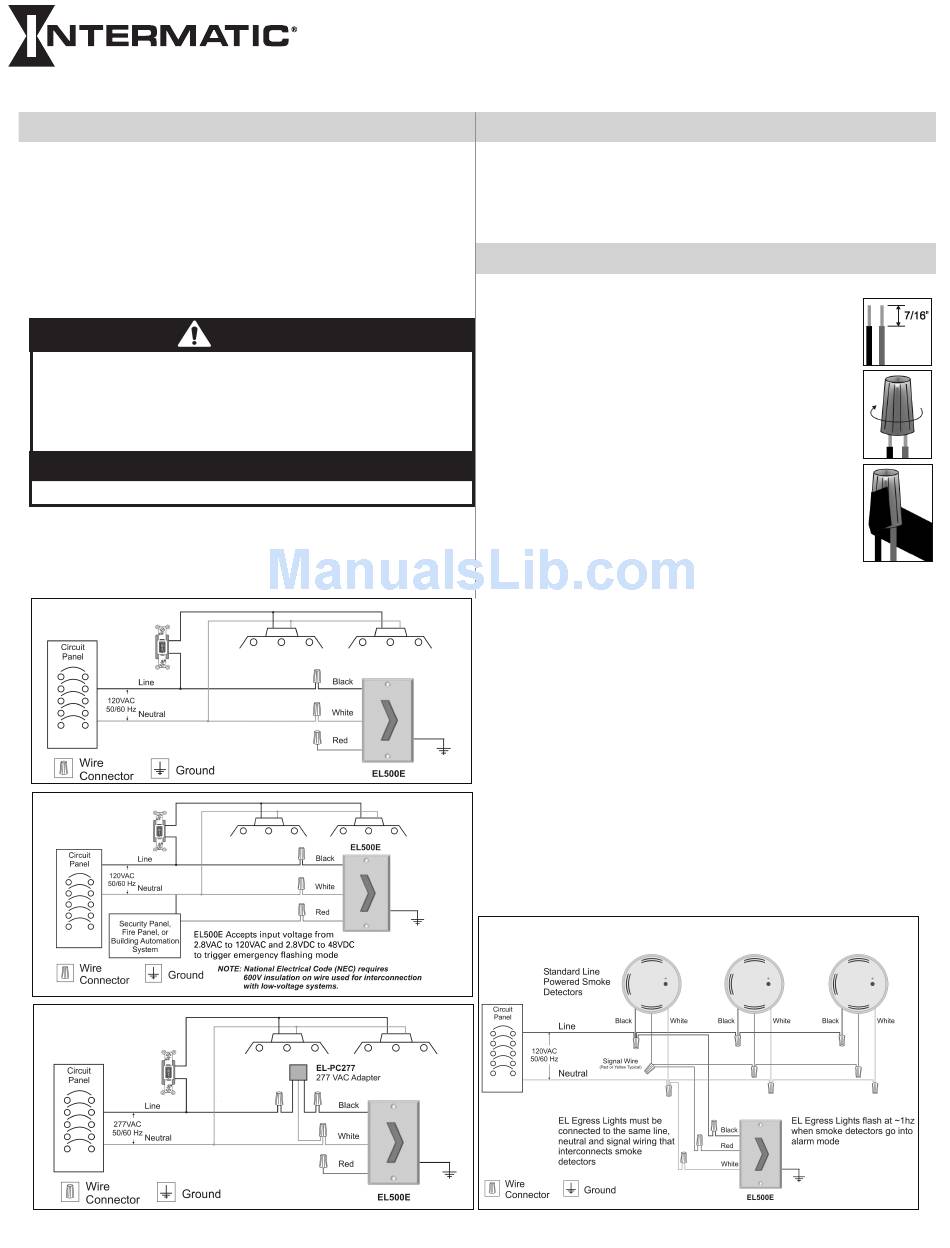

Intermatic EL500E Installation And User Instructions

MODEL EL500E
Installation and User Instructions
Specifications
• Voltage — 120 Volts, 50/60 Hz
• Consumption — 17.0 watts max.
• Battery — Single rechargeable AA NiMH provides 4 hours life in use
• Light Source — 3 high-output red LEDs
• Temperature Operating Range — 32°F to 104°F / 0°C to 40°C
• Storage Range — -31°F to 158°F / -35°C to 70°C
• Environmental — 10% to 95% non-condensing relative humidity
• For Indoor Use Only
Electrical shock hazard. To avoid fire, shock, or death, turn off
•
power at circuit breaker and test that power is off before wiring.
• Follow local electrical codes during installation.
Connect to copper conductors only.
•
Connect to Class 1 wiring only.
•
NOTICE
No user-serviceable parts.
•
EL500E Standard
Wiring Diagram
EL500E Standard
Wiring Diagram
EL500E 277VAC
Wiring Diagram
Power Failure Egress Path Lighting
WARNING
Before You Begin
NOTE: This unit must be connected to the same circuit as the
smoke detectors.
1.
Turn off power at the service panel by REMOVING FUSE or
TURNING THE CIRCUIT BREAKER OFF.
2.
Test to VERIFY that the power is off.
Installation Instructions
1.
Remove existing receptacle from the wall box (if necessary).
2.
Strip building wires to 7/16".
3.
Connect the BLACK wire to the line building wire, us-
ing a twist connector (provided).
4.
Connect the WHITE wire to the neutral building wire,
using a twist connector (provided).
5.
Optional: connect the RED wire to the smoke alarm
wire, using a twist connector (provided).
NOTE: Insert wires straight into twist connector, then
twist clockwise. Make sure all twist connectors are tight.
Secure each twist connector with electrical tape. Make
sure no bare wire shows below the twist connector.
6.
Connect the ground wire from the box to the GREEN
screw on the EL500E unit. If there is no ground wire,
ground the EL500E unit to the box. If using a plastic
box, connect to ground as supplied.
7.
Tuck wires into wall box leaving room for the EL500E unit.
8.
Using screws provided, mount the EL500E unit to the wall box,
then install wall plate.
9.
Turn power back on at the service panel.
EL500E Smoke Alarm Option Wiring Diagram
