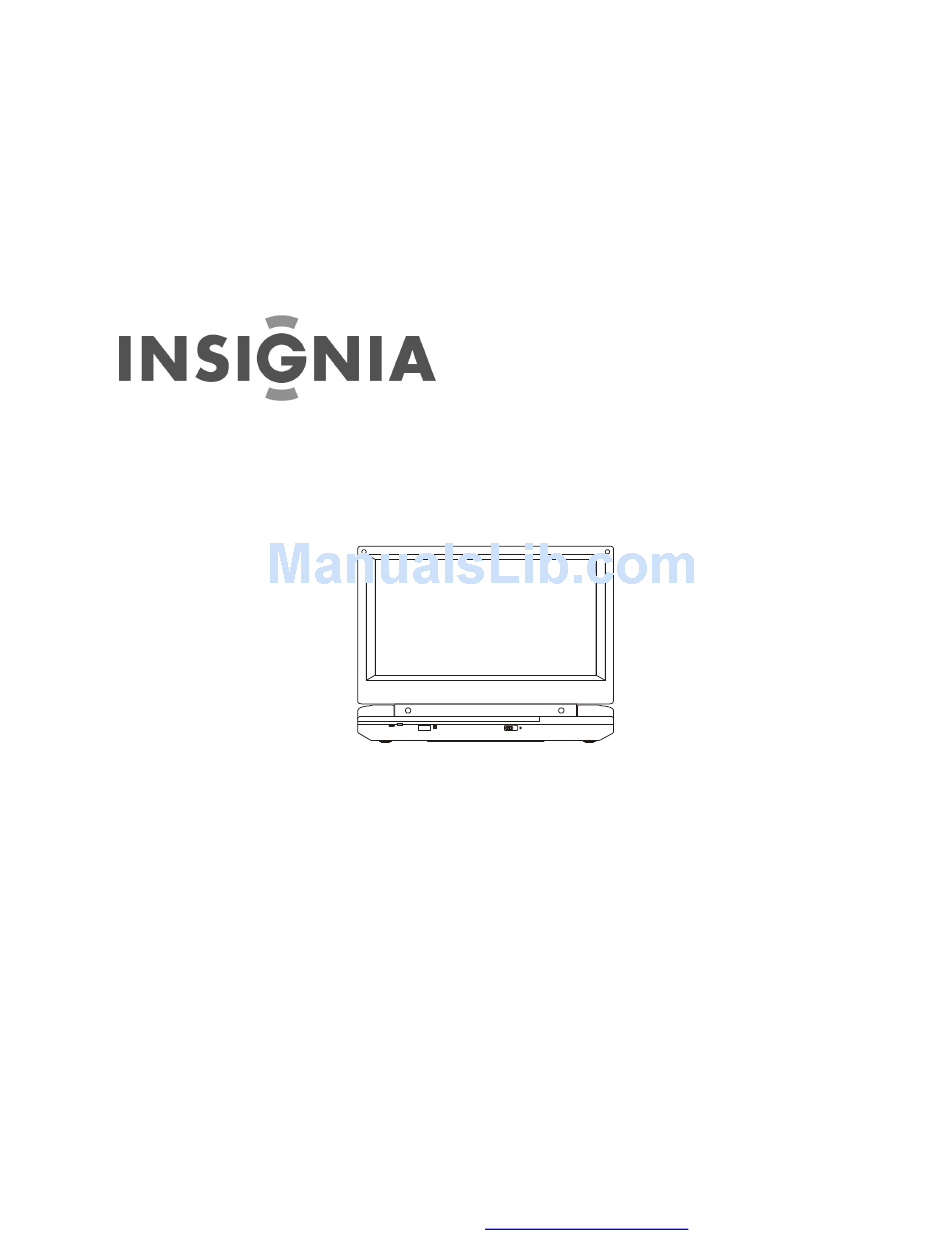

- Page 1 IS-PD101351 PORTABLE 9" LCD MONITOR AND DVD PLAYER Owner’s Manual PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com...
- Page 2 Notice: 1.This Product incorporates copyright protection technology that is pro- tected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights own- ers. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited view- ing uses only unless otherwise authorized by Macrovision Corporation.
-
Page 3: Table Of Contents
Content A. Introduction ... 1 B. Cautions and Warnings ... 1 C. Contents ... 3 D. Powering and installation ... 3 E. Controls, Indicators, and Connectors ... 4 F. Loading and Playing a Disc ... 5 G. Setup... 6 H. Basic Operation ... 12 I. -
Page 4: Introduction
A. Introduction Thank you for choosing the IS-PD101351 portable DVD player. The main features include a 9" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices or your home. - Page 5 operation, never cover or block the slots and openings with a cloth or other material. Keep the unit away from an open flame such as fire, candle etc. It is hazardous to replace the battery incorrectly. Replace the battery only with the same or equivalent type, in order to protect the enviromnent, please dispose the battery properly.
-
Page 6: C. Contents
7.Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region 1. DVD is with other regional codes cannot be played in this unit C. -
Page 7: Controls, Indicators, And Connectors
E. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 2) 1) LCD Panel Shut Off Switch 2) Stop Button 3) Previous Button 4) Next Button 5) MENU Button 6) Wide Button 7) Up Button 8) Right Button 9) Play/OK Button 10) Left Button 11) Down Button PDF created with FinePrint pdfFactory Pro trial version... -
Page 8: Loading And Playing A Disc
2. Remote Control View (Refer to Figure 3) 1) Display Button 2) Angle Button 3) Subtitle Button 4) Audio Button 5) Zoom Button ENTER Buttons 7) Return Button 8) A-B Button 9) Forward Button 10) Reverse Button 11) Slow Button 12) Stop Button 13) Numeric Keypad 14) Setup Button... -
Page 9: Setup
G. Setup 1. General Setup Page 1)With no disc inside the player, press ‘SETUP’ to display the Main screen of the Setup Menu on the screen and “General Setup Page” appears. At the same time, “ Setup Menu and the unit will resume it’s last playback mode. 2)Press the ENTER button, “TV Display”... - Page 10 a) TV Display * Normal/PS: When the player outputs signal to a normal TV, a nor- mal picture is shown on the full screen. * Normal/LB: When the player outputs signal to a normal TV, a nor- mal picture is shown on the screen with a black strip at both the top and bottom of the screen.
- Page 11 2.Video Quality Setup 1)In Setup menu, Press the page. 2)Press the ENTER button, “Brightness” is highlighted. 3)Press the setup page. 4) Press 5) Press the to confirm your selection. 6) Repeat steps 3-5 for other menus. Note: Press a) Brightness c) Hue PDF created with FinePrint pdfFactory Pro trial version or button to select “Video Quality Setup”...
- Page 12 3. Password In Setup menu, Press the Page” and Press ENTER twice to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and the Confirmed New Password. Press ENTER to confirm the change. Note: The default password is 3308.
- Page 13 page. 4) Press to enter the sub menu. Preference Audio Language 5) Press the button to select the sub menu and press the ENTER to confirm your selection. 6) Repeat steps 3-5 for other menus. Note: Press to return the previous menu. a) Audio b) Subtiltle c) Disc Menu...
- Page 14 d) Select ‘Parental’ using the UP/DOWN button, then press RIGHT to enter the submenu. Parental Preference Screen Display Select the parental level you desire using the UP/DOWN button for discs with lock-out function or multiple rating levels. These are listed from the lowest level (1 Kid Safe) to the highest level (8 Adult).
-
Page 15: Basic Operation
H. Basic Operation POWER OPEN PLAY SLOW PAUSE STOP NEXT PREVIOUS FORWARD REVERSE LEFT/RIGHT/UP/DOWN ENTER NUMBERS MENU REPEAT DISPLAY ANGLE SUBTITLE AUDIO ZOOM SETUP PDF created with FinePrint pdfFactory Pro trial version Turn the unit on/off Remove/load the disc Start Play/Execute item or setting Play at 1/2, 1/4, 1/8 or 1/16 times speed Still Picture (1 time) Stop at the present playing point /... -
Page 16: Menu
I. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu. - Page 17 2. ANGLE During playback of a disc, press ‘ANGLE’ to display the available angles for discs containing multi-angles*, with the current angle number (1) and the total number of angles (2) displaying. Press ‘ANGLE’ to select another angle, then press again to exit and return to the normal view- ing angle.
- Page 18 4. AUDIO During playback press ‘AUDIO’ to select the audio language you desire*, with the current Audio Channel Number (1) and the total num- ber of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automati- cally if the ‘AUDIO’...
- Page 19 6. A-B REPEAT a. During playback press a first time ‘A-B’ to set the Starting Point A. A-B Repeat Starting Point Screen Display b. Press ‘A-B’ a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B. A-B Repeat Ending Point Screen Display c.
-
Page 20: Playing Audio Cds
7. REPEAT a. During playback press ‘REPEAT’ constantly to see the repeat mode as right. Chapter: Repeat the current chapter Title: Repeat the current title All: Repeat all chapters and titles Off: Resume normal playback The ‘Chapter’ repeat display shows below for example: K. - Page 21 Total Elapsed: The current track playing and the total time that the Total Remain: The current track playing and the amount of time Display Off: Take ‘Single Elapsed’ displlay as a example: USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: •...
-
Page 22: Playing Mp3 Discs
L. Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song is compressed into the MP3 format with very little loss of audio quality while taking up much less disc space. CD-R /RW discs that have been encoded in MP3 format are compatible with this system. - Page 23 4. Use the song. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF(Folder). Pressing REPEAT consecutively changes the repeat options: • Single • Repeat One (repeat playback of a song) • Repeat Folder (repeat playback of a specific folder) •...
-
Page 24: Playing Jpg File
M. Playing JPG file 1) Load the JPG Disc into tray. 2) Select JPG file by pressing “UP/DOWN” or ENTER button through menus or submenus. To go back previous menu page, use LEFT button. 3) You can preview the JPG file which you selected by pressing “PLAY” or “ENTER”. -
Page 25: Connecting To A Tv Or Another Monitor
N. Connecting to a TV or another monitor ( Refer to Figure 4) You can also connect the DVD player to a TV to enjoy high quality stereo sound and picture on another monitor. Connect one end of the audio/video cable’s black (1/8” plug) plug into the unit’s DVD AV Out jack, and connect the other end to the AUDIO INPUT jacks on your TV or Monitor through an optional RCA output cable(white = left channel, red = right channel, yellow=video). -
Page 26: Specifications
O. Specifications Compatible DISC: DVD/CD/MP3/JPEG Signal system: NTSC Panel size: 9 inch Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4V Audio S/N: Better than 60 dB Dynamic range : Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12V Power consumption: 12 W... - Page 27 battery in optimum condition. Under no circumstances short the bat- tery terminals, store the battery in a metal container, or leave the bat- tery in a humid or damp environment. Ideally, store the battery in an airtight container with desiccant or other dehumidifying agent. Each full recharge takes approximately five-hours and one full charge can provide power to the player for at least 2 hours.
- Page 28 Installing the Battery Pack: 1. First, make sure the player is in “Power Off” mode and that the AC power supply has been disconnected. 2. Flip down the monitor. 3. Push the battery towards the rear flank of the player until it locks into position.
-
Page 29: Troubleshooting
Q. Troubleshooting PROBLEM No sound or distorted sound Can’t advance through a movie The icon ( appears on screen Picture is distorted No forward or reverse scan PDF created with FinePrint pdfFactory Pro trial version SOLUTION • Make sure your DVD is connected properly. Make sure all cables are securely inserted into the appropriate jacks. - Page 30 Troubleshooting (Cont) PROBLEM IR sensor inoperative Disc won’t play Play starts, but then stops immediately PDF created with FinePrint pdfFactory Pro trial version SOLUTION • Verify that the batteries in the remote are fresh. • Verify that the remote sensor eye is not obstructed.
