Summary of Contents for Infinity CS 50

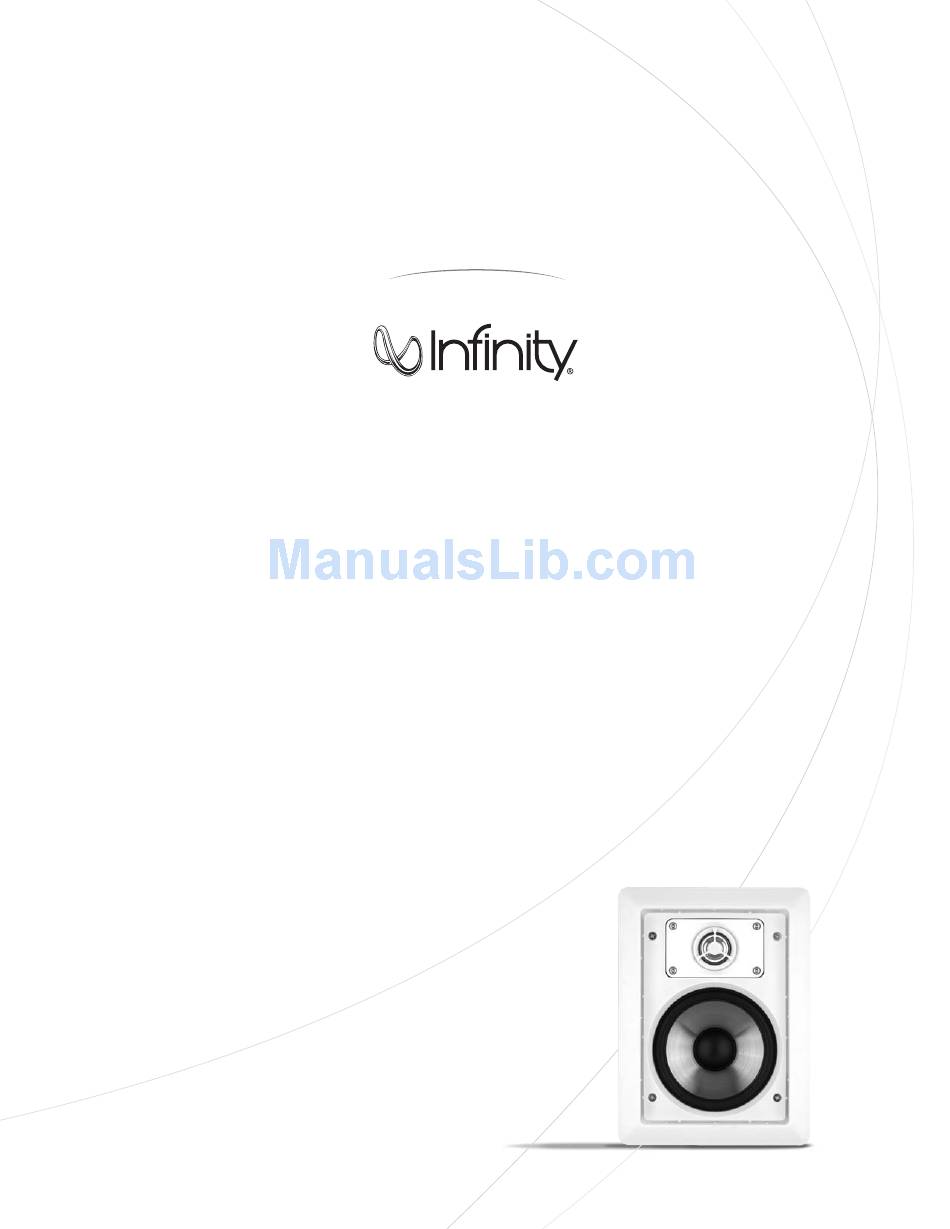

- Page 1 S E R I E S CS 50 CS 60 CS 60R CS 60RDT CS 80R Owner’s Guide...
- Page 2 CS S WNER ’ S ERIES UIDE Introduction Planning Your System Placement Installation Speaker Connections Existing Construction Specifications...
-
Page 3: Planning Your System
NTRODUCTION Infinity CS Series The CS Series of in-wall/ceiling loudspeakers continues Infinity’s longstanding commitment to accurate sound reproduction. All CS Series speakers deliver uncompromised performance in any stereo, multichannel home theater or whole-house music system. Unpacking the Speakers Carefully unpack the speakers. If you suspect damage from transit, report it immediately to your dealer and/or delivery service. -
Page 4: Installation
For surround channel use, install the speakers alongside the listening position. NOTE: An Infinity powered subwoofer will add impact and realism to both music and film soundtracks. Contact your Infinity dealer for recommendations on subwoofer models for your application. -
Page 5: Speaker Connections
Before completing the installation, you must connect your speakers to your system. First, turn off all audio-system power. Use high-quality speaker wire to make your connections. Use at least #16-gauge speaker wire with polarity coding. Heavier gauge wire is recommended for larger distances. Consult the chart above or your dealer for recommendations.The side... - Page 6 ≥1/2" 3. NOTE: Always allow at least 4. Cut the drywall. one-half inch between a wall stud and the speaker cutout or the locking tabs will not be able to swivel into place. 5. Connect the speaker 6. Place the speaker wires to the speaker.
-
Page 7: Specifications
CS 50RIF Preconstruction Rough-In Frame Infinity continually strives to update and improve existing products, as well as create new ones. The specifications and construction details in this and related Infinity publications are therefore subject to change without notice. CS 60 CS 60R 45Hz –... - Page 8 © 2004 Harman International Industries, Incorporated Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA 516.674.4INF (4463) www.infinitysystems.com Infinity is a registered trademark of Harman International Industries, Incorporated. Part No. 170-0049...
