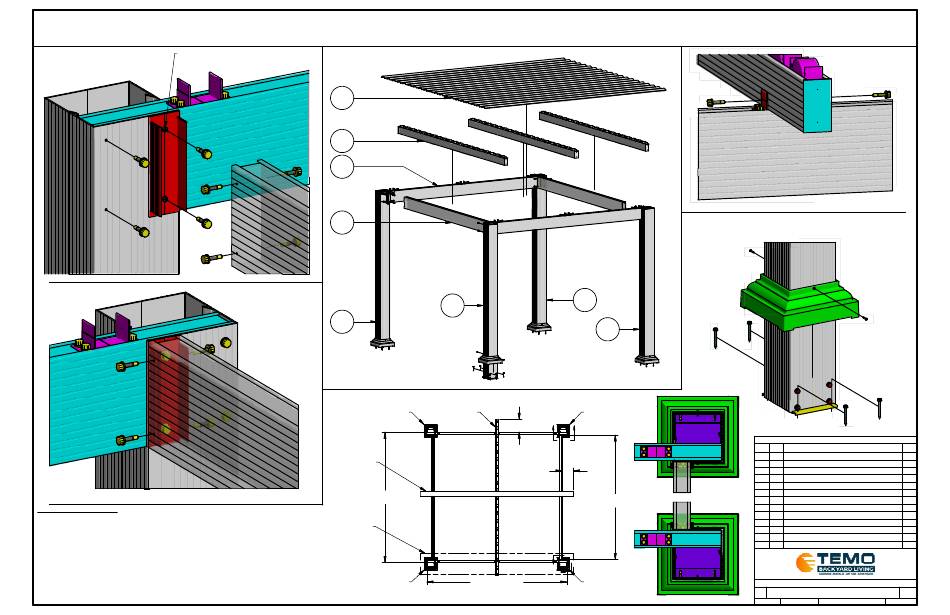

TEMO 10' X 10' FIXED CAPRI Assembly Manual

10' X 10' FIXED CAPRI ASSEMBLY GUIDE
REMOVE #8 SCREWS
DROP BEAM INTO PLACE
SECURE WITH BI-HEX SCREWS
DETAIL A
DETAIL B
INSTALLATION INSTRUCTIONS:
#1. SLIDE BASE/CAP OVER AND DOWN COLUMN A/C AS SHOWN (TAPE IN PLACE). SQUARE AND LEVEL COLUMN,
THEN SECURE IN PLACE WITH TAPCON SCREWS AS SHOWN FOR CONCRETE OR ITEM #X FOR WOOD DECK. SLIDE
BASE / CAP DOWN AND SECURE IN PLACE WITH #6 SCREWS
#2. POSITION COLUMN B/D ADJACENT TO COLUMN A/C. REPEAT STEP 1.
#3. REMOVE (2) FACTORY INSTALLED #8 SCREWS AS SHOWN IN DETAIL B. LOWER "BEAM" INTO COLUMNS PRE-PUNCHED
SLOTS CREATING AN ARCHWAY. SECURE BEAM IN PLACE WITH (8) BI-HEX SCREWS.
#4. LOCATE COLUMN B/D BEHIND COLUMN A/C. REPEAT STEPS 1-3 CREATING A SECOND ARCHWAY.
#5. CONNECT BOTH ARCHWAYS. SLIDE "BRACE" OVER RAFTER / BEAM FLAT CAPS. SECURE TO RAFTER / BEAM FLAT CAP WITH
(4) BI-HEX SCREWS. NOTE "BRACE" HAS (4) PRE-DRILLED HOLES AT EACH END TO LOCATE SCREWS.
6. LOWER RAFTERS INTO FACTORY INSTALLED "RAFTER TO BEAM CONNECTORS" AND SET OVERHANG. ENSURE RAFTERS ARE
CENTERED AND FLUSH TO ONE ANOTHER. SECURE RAFTERS WITH BI-HEX SCREWS AS SHOWN IN DETAIL D.
#7. SET CRESCENT OVERHANG AND SNAP CRESCENTS INTO FACTORY INSTALLED CRESCENT HANGERS. ENSURE CRESCENTS
ARE CENTERED AND FLUSH TO ONE ANOTHER.
7
6
4
5
1
2
COLUMN B RAFTER
9.900" TYP.
CRESCENT
102.360" OUTSIDE
BEAM TO BEAM
"ARCHWAY"
COLUMN A 109.750" "BEAM"
1
2
COLUMN A
F
DETAIL F
8.890"
TYP.
97.750"
"BRACE"
DETAIL G
G
COLUMN B
DETAIL C
DETAIL D
NOTE: ITEMS 10, 12, AND 13 NOT SHOWN.
10' X 10' FIXED CAPRI PRE-ASS'Y PARTS LIST
ITEM
QTY DESCRIPTION CHK
1 2 CAPRI COLUMN A ASSEMBLY
2 2 CAPRI COLUMN B ASSEMBLY
3 4 6" FLORENTINE BASE/CAP
4 2 2" X 6" X 109.750" BEAM / RAFTER ASSEMBLY (BEAM)
5 2 2" X 6" X 97.750" BEAM / RAFTER (BRACE)
6 3 2" X 4" X 122.000" RAFTER ASSEMBLY
7 20 120.000" CRESENT
8 8 #6 X 3/4" FH TEK SCREW
9 50 #12 X 1" LG. BI-HEX TEX SCREW
10 16 #12 X 2-1/4" T.P. SCREW W / NEO WASHER
11 16 1/4 X 2 1/2" TAPCON ANCHOR SCREW
12 1 11MM BI-HEX SCREW DRIVE TIP
13 1 TOUCH-UP BOTTLE
20400 HALL ROAD CLINTON TWP., MI 48038
SIZE DESCRIPTION: REV.
D 10' X 10' FIXED CAPRI ASSEMBLY GUIDE A
SCALE: NONE DATE: 12/5/2019 © TEMO SUNROOMS INC. 2019 SHEET 1 OF 2
