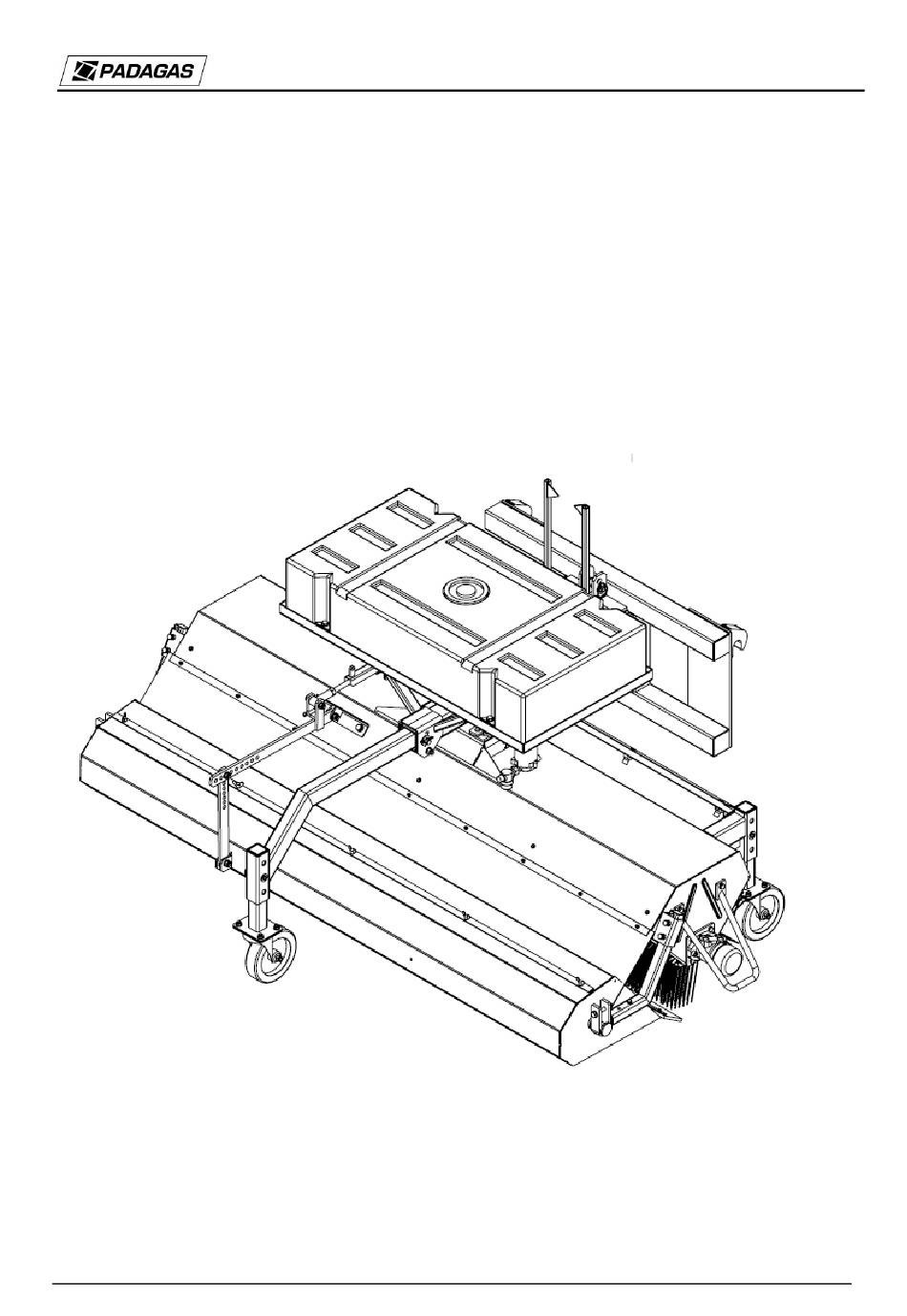

- Page 1 FKM-GKM User manual FKM-GKM 130/150/180/230 ©UAB V. Padagas ir ko. All right reserved.
-
Page 2: Table Of Contents
5.4 OPERATING THE SWEEPING MACHINE ................16 5.5 HYDRAULIC UNIT ........................17 6. SWEEPER EQUIPMENT ........................ 18 6.1 ADDITIONAL EQUIPMENT ..................... 18 6.2 HYDRAULIC COMPONENTS AND ADDITIONAL OPTIONS ..........18 6.3 ELECTRICAL COMPONENTS ....................19 ©UAB V. Padagas ir ko. All right reserved. -
Page 3: Introduction
In case of use of the sweeping machine for non-intended purposes, the warranty is deemed null and void. ©UAB V. Padagas ir ko. All right reserved. -
Page 4: Work Safety
- Danger to persons working in unprotected workplaces - Malfunctioning of the equipment - Inefficiency of the described methods of putting into service and repair works - Damage to persons due to mechanical and chemical effects ©UAB V. Padagas ir ko. All right reserved. -
Page 5: Principles Of Safe Operation
- If in any position the light fitted to the trusses is tucked away / hidden, additional lamps must be fitted. - When connecting the sweeper to the tractor, the suspension must be adjusted according to the level indicators (Fig. 1). ©UAB V. Padagas ir ko. All right reserved. - Page 6 - When the machine is switched off, a dangerous weakening inertia occurs. At that time, do not get near the machine. Wait until the machine is completely off. - Hydraulic unit pressure must be null. ©UAB V. Padagas ir ko. All right reserved.
-
Page 7: Safety Instructions Related To Repair, Control And Installation Works
At a specified frequency of inspection; After repair or a break in operation. The life of the hydraulic hoses and tubes must not exceed 6 years. During the inspection, check the following: ©UAB V. Padagas ir ko. All right reserved. -
Page 8: Modifications And Replacement Of Parts
Original spare parts and parts approved by the manufacturer guarantee safety. Use of other parts may invalidate the consumer's right to claim damages in the event of a malfunction or an accident. ©UAB V. Padagas ir ko. All right reserved. -
Page 9: Guideline And Warning Notes And Symbols On The Sweeper
WARNING! Before touching the parts of the machine, wait until they stop completely. When the engine is switched off, the sweeping segments will rotate for a while and may cause injury. ©UAB V. Padagas ir ko. All right reserved. -
Page 10: Additional Data
Warranty certificate 3.2 WARRANTY CONDITIONS V.Padagas ir Ko, UAB guarantees that the sweeping machine will be free from manufacturing defects, except for parts produced by other companies, for a period of 12 months from the date of loading or 6 months from the date of delivery to the consumer. -
Page 11: Instructions On The Use
The sweeping machine may be attached to: Tractors Front loaders The sweeper’s nameplate is located on the right side of the sweeper frame (Fig. 2). Fig. 2. Location of the nameplate. ©UAB V. Padagas ir ko. All right reserved. -
Page 12: Sweeper Description
5. USING THE SWEEPING MACHINE Before starting the sweeper operation, the user must read the user manual. Directives for proper operation must be followed. ©UAB V. Padagas ir ko. All right reserved. -
Page 13: Preconditions For The Sweeper's Attachment To The Tractor
CAUTION! DO NOT open the container of the sweeping machine without raising it from the ground. 5.3 TEST OPERATION The sweeping machine must be tested: Before starting the operation ©UAB V. Padagas ir ko. All right reserved. -
Page 14: Operating The Sweeping Machine
Note: If sweeper with the box and side brush is monted in the tractors end, the sweeper can not be torned to the sides. ©UAB V. Padagas ir ko. All right reserved. -
Page 15: Hydraulic Unit
After disconnecting the hydraulic quick connect couplers from the tractor, the hydraulic coupler plug must be covered with a special hydraulic stopper, and the hydraulic hoses must be hang in a designated area to prevent the hoses from being contaminated or damaged. ©UAB V. Padagas ir ko. All right reserved. -
Page 16: Sweeper Equipment
Hydraulic lock. Using when sweeping machine with hydraulic tipping. Prevents the sweepr collector from opening. ©UAB V. Padagas ir ko. All right reserved. -
Page 17: Electrical Components
The water pump is used to ensure a steady flow of water over any operating range. The pump voltage is 12 V or 24 V. Marker light. The marker lamp clearly defines the width of the vehicle. ©UAB V. Padagas ir ko. All right reserved.
