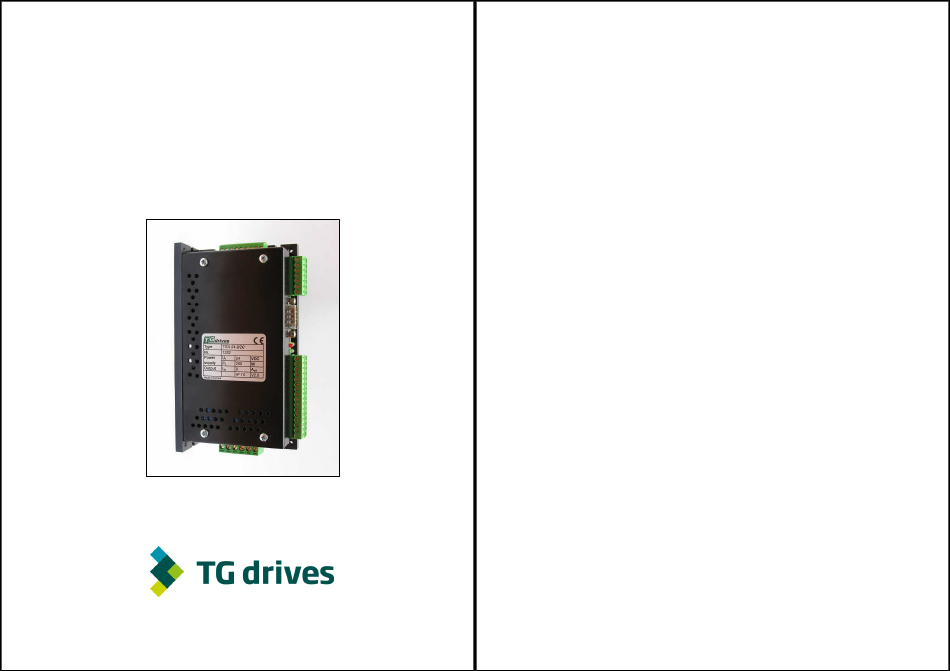

DIGITAL SERVOAMPLIFIER Type description: TGA-24-9/20 TGA-24-9/20 standard version TGA-24-9/20-O1 optional communication connector X1 – 8 pin TGA-24-9/20-O3 optional supply voltage 48VDC TGA-24-9/20-O4 analog input ± 10V Instruction manual TGA-24-9/20-O8 lite version design Edition 06/2012 servotechnics...
0 - 40 size may be determined from EN60204. Relative humidity max. 85 We only guarantee the conformance of the servoamplifiers with the standards for industrial areas, if the components (motors, cables, amplifiers etc) are delivered by TG Drives s.r.o.
Page 4
Recommended connection diagram Resolver cable connection (X7) The resolver cable connection for TGT1,TGT2, TGT3,TGH2,TGH3 servomotors with the cable glands The resolver cable connection for TGT1,TGT2, TGT3,TGH2,TGH3 servomotors with the round connectors The resolver cable connection for TGH0 servomotors with the flying leads The ferrite rings use to decrease the electromagnetic noice.
Page 5
Motor cable connection (X8) RS232 interface, PC connection (X1) The setting of the regulator parameters, inputs/outputs setting, position control and position profiles can be carried out with an ordinary commercial PC. Motor cable connection for TGT1, TGT2, TGT3, TGH2 and TGH3 servomotors is Connect the PC interface (X1) of servoamplifier while the supply to the equipment is described in the chapter Recommended connection diagram (page 7).
(RS422 signals level) in all of the operation modes as feedback for the control system or as setpoint position in Master-Slave operation. TG Drives, s.r.o. www.tgdrives.com Jeneweinova 37 info@tgdrives.cz 617 00 Brno phone: 00420 545 234 935...
