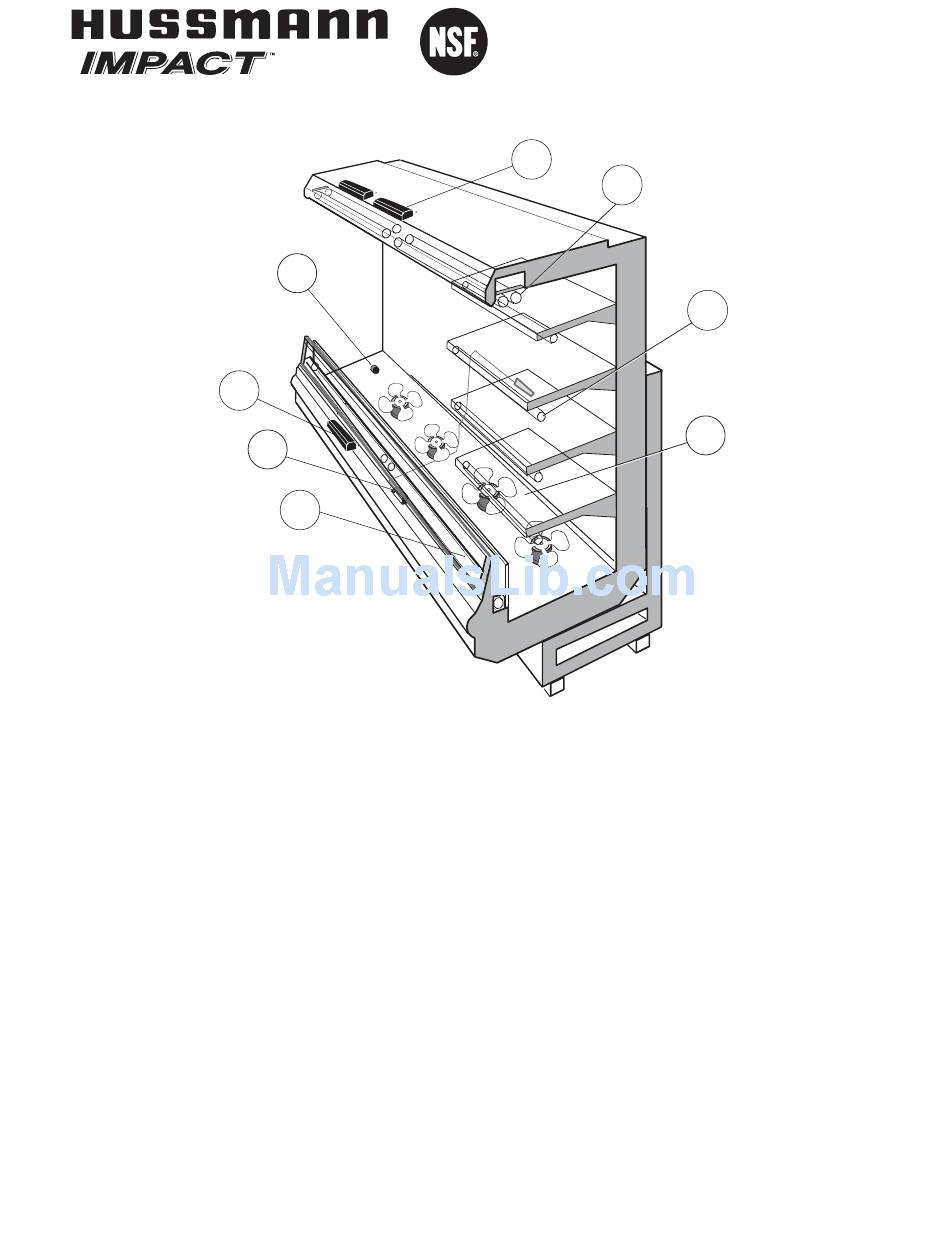

Hussmann impact m5g merchandisers: data sheet
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

D
Item
Part #
Description
F
A
T
AN
SSEMBLIES AND
HERMOSTATS
A.
9W Fan Assembly
0047000
Fan Motor, Evaporator
(MO.4410103)
0315470
Fan Blade (FB.0315470)
embossing toward motor
B.
0411744
Standard Non-adjustable
Defrost Thermostat (CT.0411744)
C.
0137880
Optional Adjustable
Refrigeration Thermostat
(CT.4481084)
Note: Revision D adds the 10-ft model and After Market numbers.
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
®
Merchandisers
B
C
E
Wiring Item #
D
E
Item
Part #
L
B
AMPS AND
ALLASTS
D.
Ballast, Electronic
(1)
0428648
0428649
E.
(2)
(3)
M5G
Technical Data Sheet
P/N 0378422_D
NSF
®
Certified
March 2007
E
A
Description
Wiring Item #
2 lamps (BA.4480823)
3 lamps (BA.0428649)
Fluorescent Lamp
Replace with like fixtures
P/N 0378422_D
(4)
(5)

Advertisement

loading

Related Manuals for Hussmann IMPACT M5G

Summary of Contents for Hussmann IMPACT M5G

  • Page 1 Optional Adjustable Refrigeration Thermostat (CT.4481084) Note: Revision D adds the 10-ft model and After Market numbers. ©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM ® Wiring Item # Item Part #...

  • Page 2: Plan Views

    NOTE: Water seal outlet must clear front skid rail; water seal rotation in forward direction only due to low base. Refrigeration Outlet Back of case to center of refrigeration outlet (D) RH End of case to center of refrigeration outlet 2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. Dimensions shown as inches and (mm). (1835) (703) (775)

  • Page 3: Refrigeration Data

    NSF Certification These merchandisers are manufactured to meet ANSI /National Sanitation ® Foundation (NSF ) Standard #7 requirements. P/N 0378422_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM Dimensions shown as inches and (mm). (966) (1368) (1356) (769) (234)

  • Page 4: Electrical Data

    3 Row Canopy and 1 Row Rail Optional Shelf Lighting 1 Row of Shelves 2 Rows of Shelves 3 Rows of Shelves 4 Rows of Shelves 4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 8 ft 10 ft 12 ft Amperes 8 ft 10 ft 12 ft 2.80...

  • Page 5: Shelf Lighting

    Grayed components in 10 foot and 12 foot models only. R = Red Y = Yellow G = Green BL = Blue B = Black W = White = 120V P OWER P/N 0378422_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM 120V N Fans ROWN Connector...

  • Page 6: Light Circuits

    Grayed components in 10 foot and 12 foot models only. R = Red Y = Yellow G = Green BL = Blue B = Black W = White 6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. RANGE OR RANGE OR...
