Instructions
Item Part #
Description
F
A
T
AN
SSEMBLIES AND
HERMOSTATS

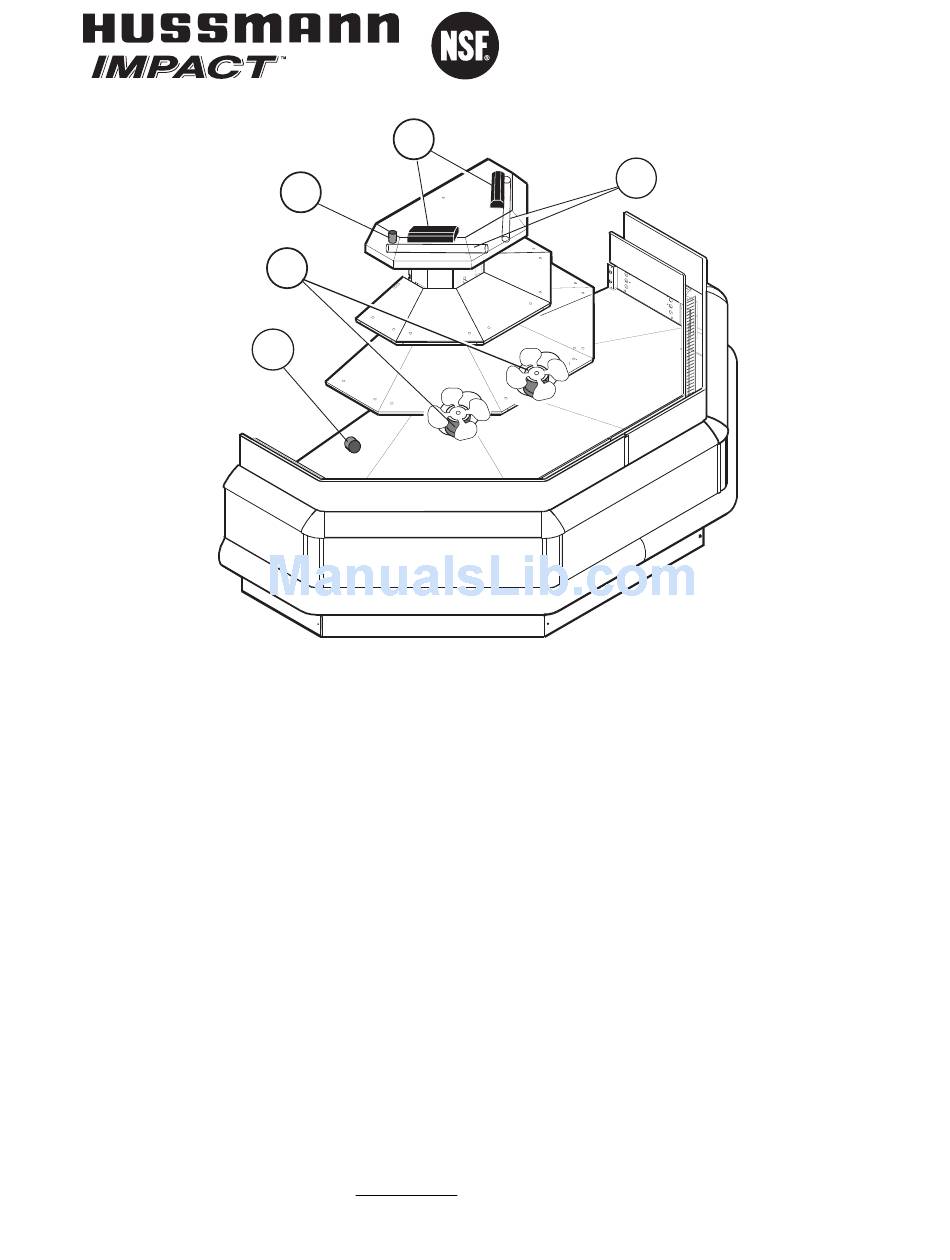

A. 9W End Compartment Fan Assembly
0441749
Fan Motor, Standard (MO.4410575)
0377253
Fan Blade (FB.4780616)
embossing away from motor
B. 0398558
Standard Non-Adjustable
Defrost Thermostat (CT.4481088)
Note: Changed items have been underlined.
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
®
Merchandisers
C
D
A
B
Wiring Item #
E
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Item Part #
L
B
AMPS AND
ALLASTS
C. 0135966
(1)
D. 0039764
E.
(2)
CW2-EGE
Technical Data Sheet
P/N 0399452_C
NSF
®
Certified
July 2007
Description
Wiring Item #
Ballast, Electronic
1 lamp (BA.4480883)
Lamp Starter (EP.4481081)
Fluorescent Lamp
Replace with like fixtures
P/N 0399452_C
(3)
(4)
(5)
Advertisement
Related Manuals for Hussmann IMPACT CW2-EGE
Summary of Contents for Hussmann IMPACT CW2-EGE
- Page 1 B. 0398558 Standard Non-Adjustable Defrost Thermostat (CT.4481088) Note: Changed items have been underlined. ©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM ® Wiring Item # Item Part # AMPS AND ALLASTS C.
-
Page 2: Plan Views
Center of case to center of pipe connection Outside diameter of the drip pipe Water seal outlet must clear front skid rail. 2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. Dimensions shown as inches and (mm). (2070) (305) (648) -
Page 3: Refrigeration Data
NSF Certification This merchandiser model is manufactured to meet ANSI/NSF (National Sanitation Foundation) Standard #7 requirements for construction, materials & cleanability. P/N 0399452_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM (273) 12 in. Shelf 16 in. Shelf (1219) -
Page 4: Electrical Data
Note 1: All CW2 end compartments are equipped with energy efficient fan motors as standard. Note 2: CW2 end compartments are not available with 2 row canopy lighting due to space constraints. 4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. CW2-EGE Amperes 0.76... - Page 5 All components must have mechanical ground, and the merchandiser must be grounded. R = Red Y = Yellow G = Green BL = Blue B = Black W = White = 120V P OWER P/N 0399452_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM 120V N Fans ROWN WARNING...
- Page 6 All components must have mechanical ground, and the merchandiser must be grounded. R = Red Y = Yellow G = Green BL = Blue B = Black W = White 6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. CW2-EGE END COMPARTMENT LIGHTING SCHEMATIC...
