TENNADYNE
TENNADYNE

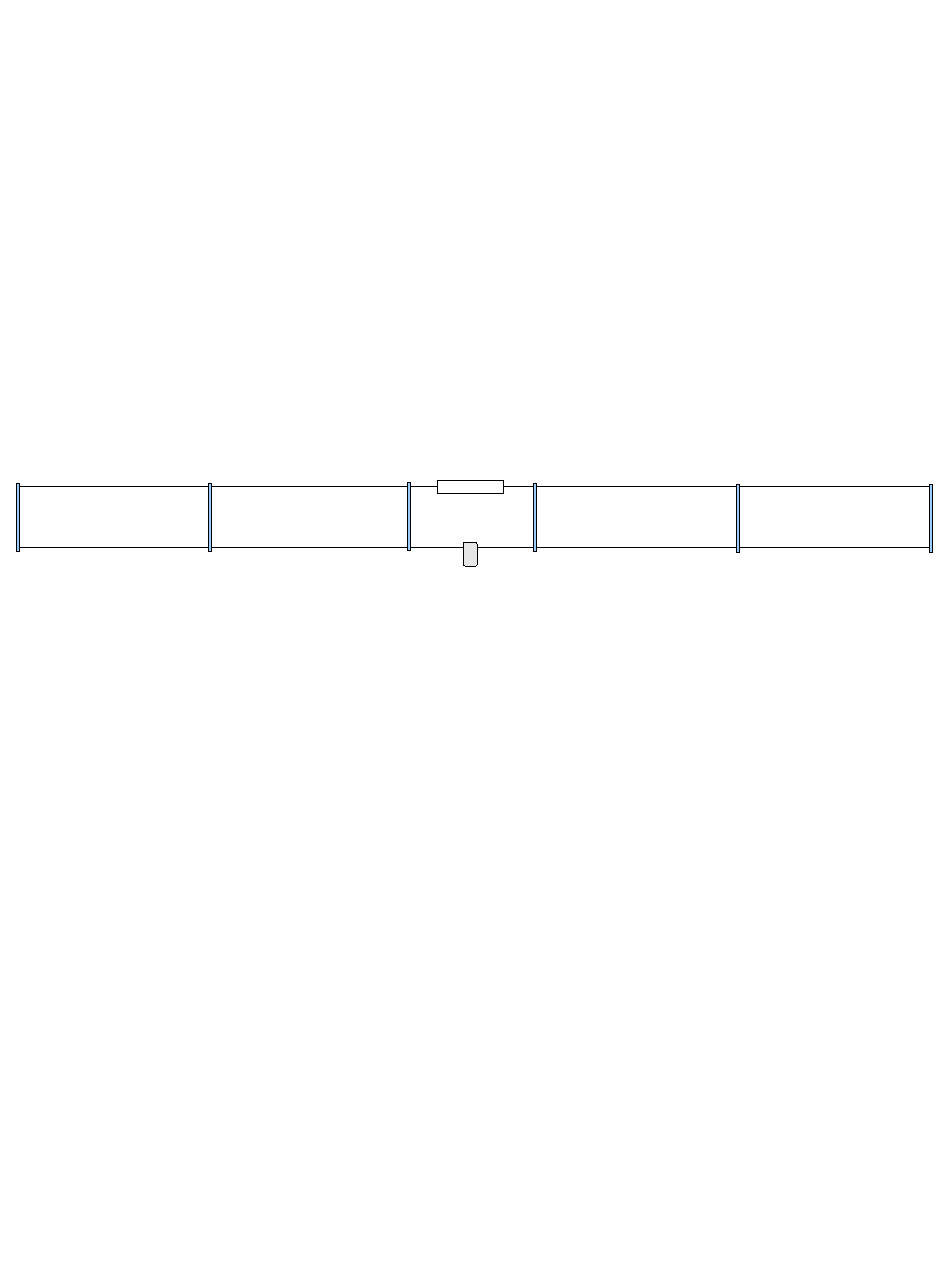

Folded Terminated Dipole
Folded Terminated Dipole
The
TD series terminated folded dipole is a broadband antenna designed
TENNADYNE
®
for fixed station, multi-frequency applications. The antenna can be mounted
horizontally between two support systems, or as an inverted 'V' using a single
central support mast. This antenna type is widely used by military, commercial and
broadcasting services. The TD antenna line is made with extremely durable stranded Copper
Clad Steel
●
●
●
●
●
●
Specifications:
Impedance: 50 Ohm nominal
Bandwidth :1.8-30 MHz
Length
: 90 ft.
Power
: 1.5kw Impulse
: 500w PEP SSB
: 200w AM/FM/RTTY
Connector : SO 239
Price
: Only USD 250.00
TD-90
TD-90
Pre Tuned no measuring or cutting!!
Easy to install
Fantastic NVIS performer
Great for ALE Applications.
An excellent broadband antenna.
Ground Independent.
®
®
Advertisement
Related Manuals for TENNADYNE TD Series
Summary of Contents for TENNADYNE TD Series
- Page 1 Folded Terminated Dipole Folded Terminated Dipole TD-90 TD-90 TD series terminated folded dipole is a broadband antenna designed TENNADYNE ® for fixed station, multi-frequency applications. The antenna can be mounted horizontally between two support systems, or as an inverted ‘V’ using a single central support mast.
-
Page 2: Antenna Safety
One of the most important components in any radio station is the antenna. It is important to take time and plan out your installation. Antenna Safety Under no circumstances will be liable for any damages TENNADYNE TENNADYNE ® ® or consequential damages arising from use or misuse of our products. -
Page 3: Installation
All electric power lines, cable lines and telephone lines look alike. To be safe, assume ANY overhead line can kill you. Do not place an antenna where it could potentially fall on to, or blow into a power line. To determine the SAFE DISTANCE follow these steps: (a)Determine the proposed height of your antenna. -
Page 4: Warranty
WARRANTY TENNADYNE® guarantees each product to be free from defects in material and workmanship for 90 days from date of purchase. The warranty applies to the original purchaser only, and we will repair or replace the product at our discretion. Under no circumstances will liable for any damages TENNADYNE®... - Page 5 Field Test Results: TD-90 SWR Other Manufacturer SWR 10.1 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0...
- Page 6 Comments from Field Tester: 1. The wind/snow static. (tik tik tik sound from static discharge) is not present with the TD-90 as it is with the other manufacturer(OM). During mild to heavy winds, the OM can pull a small static arc from the coaxial line and you hear the tick tick tick in the radio speaker from it being discharged.
