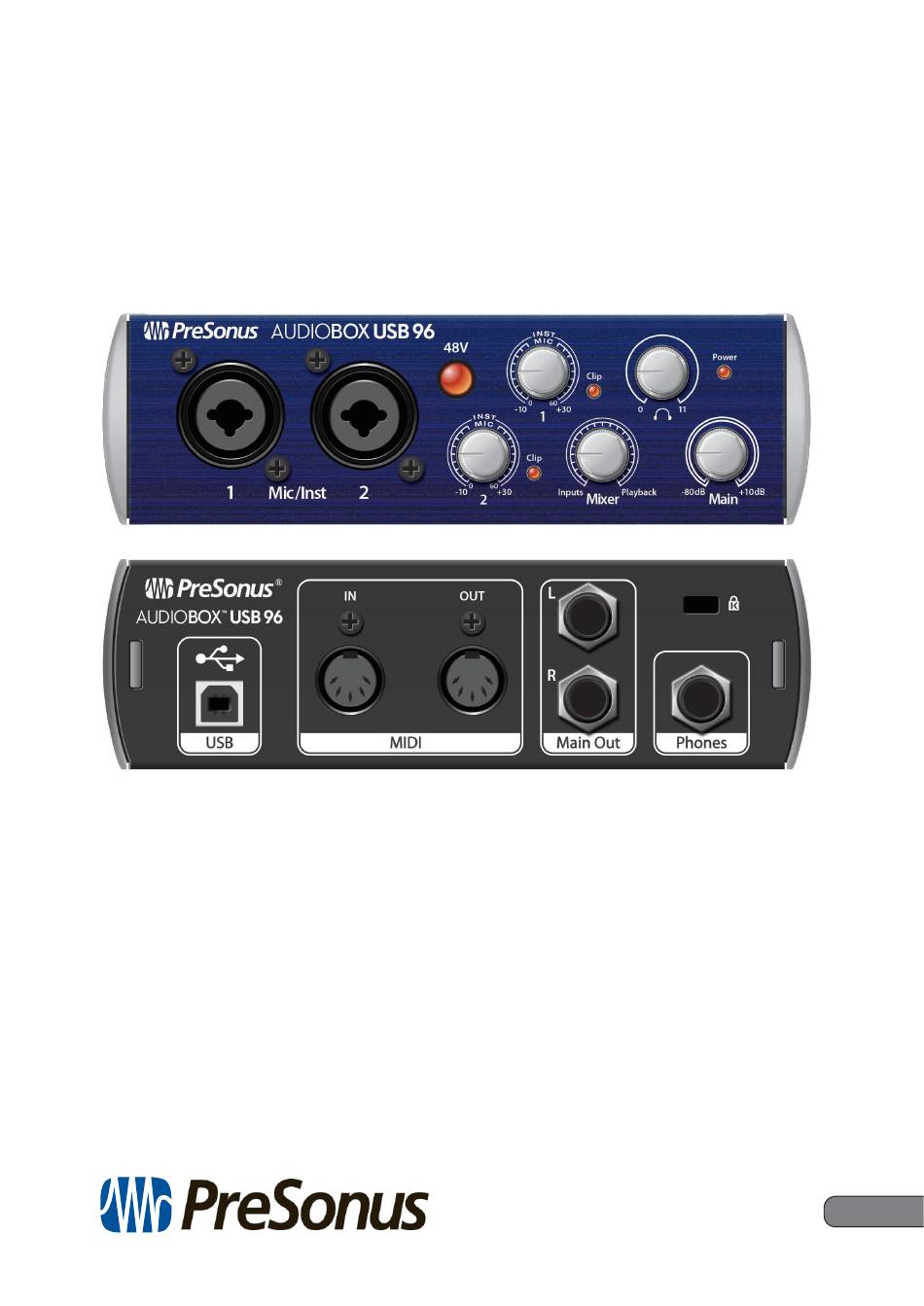

- Page 1 AudioBox USB ® USB Audio Interface USB音频接口 Owner’s Manual 用户指南 ® English www.presonus.com...
-
Page 2: Table Of Contents
4.3.1 Configuring Your Audio I/O TableofContents 目录内容 配置你的音频输入/输出 — 16 Overview 概述 — 1 4.3.2 Creating Audio and Instrument Tracks Introduction 简介 — 1 创建音频和乐器轨道 — 17 Summary of AudioBox 4.3.3 Recording an Audio Track USB Hardware — 18 录制一个音频轨道 Features AudioBox USB硬件功能摘要... -
Page 3: Overview 概述
Introduction Overview 概述 Introduction 简介 Thank you for purchasing the PreSonus AudioBox USB®96. PreSonus Audio Electronics has designed the AudioBox USB96 utilizing high-grad components to ensure optimum performance that will last a lifetime. Loaded with 2 high- headroom, Class A microphone preamplifiers; professional 24-bit 96 kHz converters;... -
Page 4: Summary Of Audiobox Usb Hardware Features Audiobox
Summary of Studio One Artist Software Features Studio One Artist 软件功能摘要 All PreSonus audio interfaces include PreSonus Studio One Artist recording software, which comes with more than 4 GB of plug-ins, loops, and samples, giving you everything you need for music recording and production. -
Page 5: What Is In The Box 包装里有什么
AudioBox USB®96 Overview 20个高质量的Native Effects 插件；音箱模拟（Ampire XT）、延迟 • （Analog Delay、Beat Delay）、失真（RedLightDist™）、动态处理 (Channel Strip, Compressor, Gate, Expander, Fat Channel, Limiter, Tricomp™)。均衡器（Channel Strip, Fat Channel, Pro EQ），调制 （Autofilter, Chorus, Flage, Phaser, X-Trem），混响（Mixverb™, Room Reverb），以及实用工具（Binaural Pan、Mixtool、相位表、频谱表、 调谐器) More than 4 GB of loops, samples, and instruments, featuring: Presence™ XT •... -
Page 6: Hook-Up 联机
¼-inch phone plug or an XLR plug. Microphone/InstrumentInputs. AudioBox USB96 的两个通道都有 麦克风/乐器组合插孔。这个接口可以配¼英寸电话插头或XLR插头。 MicrophoneInputs.The XLR inputs on channels 1 and 2 are equipped with two custom PreSonus microphone preamplifiers. These preamps work great with all types of microphones including dynamic, ribbon, and condenser microphones. MicrophoneInputs. 通道1和2的XLR输入配备了两个定制的... - Page 7 AudioBox USB®96 Hook-up an instrument, or turning phantom poweron or off,will createa momentary spike in the audio output of your AudioBoxUSB96.Becauseof this, we highly recommend that you turn down the main output level and channel trims before changing connections or turning phantom poweron or off.This simple step will add years to life of your audio equipment.
-
Page 8: Rear-Panel Connections
AudioBox USB®96 Hook-up Owner’sManual Rear-Panel Connections ClipIndicator. All channels feature clip LEDs next to the trim controls. The red clip indicator LED will illuminate when the channel’s input signal reaches 0 dBFS. At this level, your mic preamp/line trim signal will exhibit signs of clipping (distortion). - Page 9 AudioBox USB®96 Hook-up Phones. The Phones knob controls the volume of the headphone output on the rear of the unit. The headphone amplifier is quite powerful, and the volume goes to 11, so use the maximum setting with extreme caution. Phones.
-
Page 10: Connection Diagram 连接图
Hook-up AudioBox USB®96 Owner’s Manual Connection Diagram MIDI I/O. MIDI stands for“Musical Instrument Digital Interface.”MIDI inputs andoutputsallowconnectionto,andcommunicationwith, externalMIDI equipment.OnefunctionoftheseportsisMIDI sequencingbuttheMIDI protocolcanbeusedformuchmorethan instrumentsandsequencing. MIDI I/O. MIDI是 "Musical Instrument Digital Interface" 的意 思。MIDI输入和输出允许连接到外部MIDI设备并与之通信。这些端 口的一个功能是MIDI排序，但MIDI协议可用于乐器和排序之外的其 他用途。 Power User Tip: MIDI is not audio but is frequently used to trigger or controlan audio source (such as a plug-in or synthesizer). -
Page 11: Connecting Toacomputer
AudioBox USB96. Once registered, all software downloads will be available from within your My PreSonus user account. Please review the Quick Start Guide that came with your AudioBox USB96 for complete instructions. -
Page 12: Universal Control (Windows)
AudioBox USB®96 Connecting to a Computer Power User Tip: It is recommended that you temporarily disable or turn off any anti-virus programs you have running to prevent installation issues. 用户提示： 建议你暂时禁用或关闭你正在运行的任何反病毒程序，以防止安装问题。 3.1.1 Universal Control (Windows) Sample Rate. Changes the sample rate. Sample Rate. - Page 13 AudioBox USB®96 Connecting to a Computer Note: When adjusting the block size, the Safe Mode will automatically change to provide the best performance. 注意：在调整区块大小时，安全模式将自动改变，以 提供最佳性能。...
-
Page 14: Installation For Mac Os X 安装
Launch Ableton Live. 启动Ableton Live。 Go to Options | Preferences | Audio. 进入选项|首选项|音频。 Choose Driver Type: Asio | Audio Device: ASIO PreSonus AudioBox USB96. 选择驱动类型。音频设备。ASIO PreSonus AudioBox USB96。 Go to Input Config: Enable and select the desired Input channels. 转到输入配置。启用并选择所需的输入通道。... - Page 15 Driver. Activate each of these labels for your AudioBox USB96. When you are done, close this window. 1. 启动Logic。 2. 进入Logic | 首选项 | 音频。 3. 点击 "设备 "标签。 4. 在 Core Audio 标签上，选中Enabled。 5. 从设备菜单中选择 PreSonus AudioBox USB96。 6. 你会被问到是否要重新启动 Logic。点击尝试（重新）启动。 USB96具有自定义I/O标签，以加快工作流程。 你的AudioBox 要启用这些标签以便在Logic中使用，请转到选项|音频|I/O标签。 Provided 驱动程序提供的。...
- Page 16 8. Go to Options | Audio... and click on the General tab. 转到选项|音频…并单击General选项卡。 9. Set the Playback Timing Master to “PreSonus AudioBox USB96... DAW Out 1.” 设置播放定时主程序为 “PreSonus AudioBox USB96…DAW Out 1” 10. Set the Recording Timing Master to “PreSonus AudioBox USB96... Mic/Inst 1.”...
-
Page 17: Studio One Artist Quick Start
PreSonus Studio One Artist music- production software to begin recording, mixing, and producing your music. To install Studio One Artist, log into your My PreSonus account and register your AudioBox USB96. Your product key for Studio One Artist will automatically be registered to your My PreSonus account, along with your hardware registration. - Page 18 Downloading and Running the Studio One Installer 下载并运行Studio One安装程序 To install Studio One Artist, download the Studio One Artist installer from your My PreSonus account to the computer on which you will use it. 要安装 Studio One Artist，请从你的 My PreSonus 帐户下载...
-
Page 19: Setting Up Studio One 设置 Studio One
当你第一次启动 Studio One Artist 时，将提示你安装它的配套内容。 选择你希望添加的内容，然后单击“Install”。内容从你的 My PreSonus 用户帐户中，自动开始下载并安装。 Power User Tip: You may be prompted to enter your My PreSonus user account information. Clicking “Remember Credentials” will allow you to have immediate access to any content you purchase from the PreSonus Marketplace. -
Page 20: Configuring Audio Devices
In the middle of the Start page, you will see the Setup area. Studio One Artist automatically scans your system for all available drivers and selects a driver. By default, it will choose a PreSonus driver if one is available. - Page 21 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Setting Up Studio One 4.2.2 Configuring MIDI Devices 配置 MIDI设备 From the External Devices window in Studio One Artist, you can configure MIDI keyboard controllers, sound modules, and control surfaces. This section will guide you through setting up your MIDI keyboard controllers and sound modules.
- Page 22 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Setting Up Studio One The MIDI controls (keyboard, knobs, faders, etc.) will be set up as a Keyboard. The sound modules will be set up as an Instrument. MIDI 键盘控制器是一种硬件设备，一般用于演奏和控制其他MIDI设备、 虚拟乐器和软件参数。在 Studio One Artist 中，这些设备被称为键 盘，它们必须经过配置才能使用。在某些情况下，你的...
- Page 23 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Setting Up Studio One From the menu on the left, select your MIDI controller from the list of manufacturers and models. If you do not see your MIDI controller listed, select New Keyboard. At this point, you can customize the name of your keyboard by entering the manufacturer and device names.
- Page 24 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Setting Up Studio One Studio One allows you to filter out specific control functions. If you would like Studio One to ignore After-touch, Pitch Bend, Program Change, or all CC messages, enable filtering for any or all of these messages. Studio One允许你过滤掉特定的控制功能。如果你想让Studio One忽...
- Page 25 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Setting Up Studio One sound module. MIDI乐器控制器（keyboards、MIDI吉他等）以MIDI数据的形式向音色模块 和虚拟乐器发送音乐信息，音色模块按照指示产生声音来响应。音色模块可 以是独立的声音设备，也可以集成到一个MIDI乐器中，比如键盘合成器。 Studio One Artist 把所有的音色发生器都称为乐器。一旦你设置了你的 MIDI键盘控制器，花点时间来配置你的声音模块。 Make sure you have connected the MIDI In of your external sound module to the MIDI Out of your AudioBox USB96 or other MIDI interface.
- Page 26 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Setting Up Studio One Specify which MIDI channels will be used to communicate with this sound module. For most purposes, you should select all MIDI channels. If you are unsure of which MIDI channels to select, we suggest you select all 16. 指定哪些...
- Page 27 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Creating a New Song Creating a New Song 创作一首新歌曲 Now that you’ve configured your audio and MIDI devices, let’s create a new Song. We’ll start by setting up your default audio I/O. 现在你已经配置了你的音频和MIDI设备，让我们来创建一个新 的歌曲。我们将从设置你的默认音频输入/输出开始。...
-
Page 28: Configuring Your Audio I/O
AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Creating a New Song "确定 "按钮。 Power User Tip: If you plan to import loops into your Song, make sure that the Stretch Audio Files to Song Tempo option is selected. This will automatically import loops at the correct tempo. 用户提示：... -
Page 29: Creating Audio And Instrument Tracks
AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Creating a New Song Click on the Outputs tabs to enable any or all of the outputs on your audio interface. In the lower right corner, you will see the Audition Select menu. This allows you to choose the output from which you will audition audio files prior to importing them into Studio One Artist. - Page 30 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Creating a New Song 在编曲窗口的左上角，你会注意到几个按钮。最靠右的按钮 是 " Add Tracks" 按钮。点击这个按钮，打开 " Add Tracks" 窗口。 In the Add Tracks window, you can customize the track name and color, add a preset rack of effects, and set the physical source for the input and output of your audio tracks.
-
Page 31: Recording An Audio Track
AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Creating a New Song Power User Tip: If you would like to add an audio track for each of the available inputs, go to Track | Add Tracks for All Inputs. 用户提示：如果你想为每个可用的输入添加一个音轨，请进入音轨|为所有 输入添加音轨。 Instrument tracks are nearly identical to audio tracks. -
Page 32: Adding Virtual Instruments And Effects
AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Creating a New Song You are now ready to start recording. For complete instructions, please consult the Studio One Reference manual located in Help | Studio One Reference Manual. 现在可以开始录音了。要获得完整的说明，请参阅在Help | Studio One Reference Manual 参考手册中的Studio One参考手册。... - Page 33 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Creating a New Song Drag-and-Drop Effects 拖放效果 add a plug-in effect to a track, click the Effects button in the browser and select the plug-in or one of its presets in the effects browser.
- Page 34 AudioBoxUSB®96 Studio One Artist Quick Start Owner’sManual Creating a New Song 通过将音频和 MIDI文件从文件浏览器拖拽到Arrange视图，可以快速定位、试听和 导入到你的歌曲中。如果你将文件拖到一个空白的空间，将创建一个新的轨道，该 文件将放置在你拖动它的位置。如果将文件拖动到现有的音轨，该文件将作为音轨 的新部分放置。...
-
Page 35: Technical Information
AudioBox USB®96 Technical Information Owner’sManual Specifications Technical Information 技术信息 Specifications 规格 Microphone Preamp Type XLR Female,Balanced Frequency Response (±3.0 dB) 20 Hz to 20 kHz Input Impedance (Balanced) 1200Ω THD+N(unwtd,1kHz@+4dBuOutput,UnityGain) < 0.008% S/NRatio(UnityGain,Ref.=+4dBu,20Hzto22kHz) > 95 dB CommonMode Rejection Ratio (1 kHz, 55 dB Gain) >... - Page 36 © 2017 PreSonus Audio Electronics, Inc. All Rights Reserved. FaderPort, PreSonus, and Universal Control are trademarks or registered trademarks of PreSonus Audio Electronics, Inc. Studio One is a registered trademark of PreSonus Software Ltd. Mac and Mac OS are registered trademarks of Apple, Inc., in the U.S.
- Page 37 AudioBox USB ® USB Audio Interface 音频接口 Owner’s Manual 用户指南 ® Baton Rouge • USA www.presonus.com...
