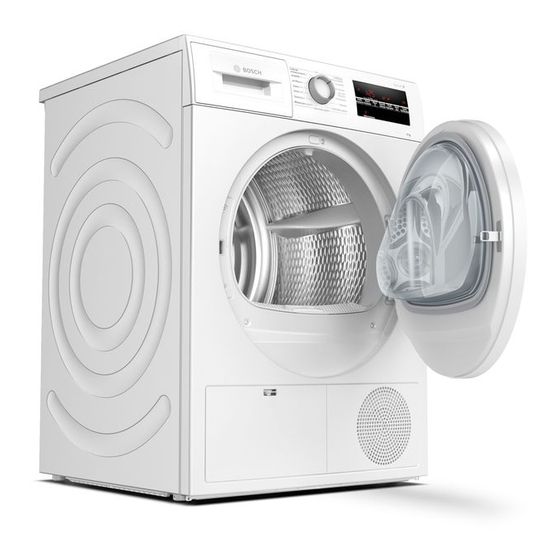

- Page 1 Tumble dryer WTG86419GR en Installation and operating instructions...
- Page 2 Caution! To meet the high quality demands required by Bosch, every tumble dryer This signal word indicates a possibly that leaves our factory is carefully dangerous situation. Not heeding the checked to ensure that it functions caution can cause property and/or correctly and is in perfect condition.
-
Page 3: Table Of Contents
Contents e n I n s t a l l a t i o n a n d o p e r a t i n g i n s t r u c t i o n s Intended use....4 Operating the appliance . -
Page 4: Intended Use
Intended use Intended use Safety instructions T he following safety information This appliance is intended for private ■ I n t e n d e d u s e S a f e t y i n s t r u c t i o n s and warnings are provided to domestic use only. - Page 5 Safety instructions Do not allow children to Warning ■ clean or maintain this Risk of suffocation! appliance unsupervised. If allowed to play with the Keep children under 3 years packaging/plastic film or ■ and pets away from this packing components, children appliance.
-
Page 6: Installation
Safety instructions The mains plug must be Installation ■ freely accessible at all times. Warning If this is not possible, in Risk of electric shock/fire/ order to comply with the material damage/damage to relevant safety regulations, a the appliance! switch (all pole If the appliance is not installed disconnection) must be built properly, this may lead to a... - Page 7 Safety instructions Incorrectly placing (stacking) Warning ■ this appliance on top of a Risk of fire/material damage/ washing machine may result damage to the appliance! in injury, material damage The use of extension cords or and/or damage to the power strips may result in fire appliance.
-
Page 8: Operation
Safety instructions Warning Operation Risk of injury! Warning The appliance is very heavy. ■ Risk of explosions/fire! Lifting it may result in injury. Laundry that has come into Do not lift the appliance on contact with solvents, oil, wax, your own. wax remover, paint, grease or The appliance has sharp Ri s k of i n j u ry! - Page 9 Safety instructions If there is coal dust or flour in Warning ■ the air around the appliance, Risk of poisoning/material this may cause an explosion. damage! Make sure that the area Condensation water is not around the appliance is kept suitable for drinking and may clean when it is in operation.
- Page 10 Safety instructions Light objects such as hair Warning ■ and lint may be sucked into Risk of burns! the air inlet when the The exterior of the appliance's appliance is in operation. rear panel becomes very hot Keep these away from the during operation.
-
Page 11: Cleaning/Maintenance
Safety instructions Cleaning/Maintenance Warning Risk of poisoning! Warning Poisonous fumes may be given Risk of death! off by cleaning agents that The appliance is powered by contain solvents, e.g. cleaning electricity. There is a risk of solvent. electric shock if you come into Do not use cleaning agents that contact with live components. - Page 12 Safety instructions Caution! Material damage/damage to the appliance Cleaning agents and agents for pretreating laundry (e.g. stain removers, prewash sprays, etc.) may cause damage if they come into contact with the surfaces of the appliance. Therefore please note: Do not allow these agents to ■...
-
Page 13: Environmental Protection
Environmental protection Energy-saving tips Environmental protection Spin the laundry before drying. ■ The drier the laundry, the shorter the drying time will be, thus P ackaging/old appliance consuming less energy. E n v i r o n m e n t a l p r o t e c t i o n Load the dryer with the maximum Dispose of packaging in an ■... -
Page 14: Installation And Connection
Installation and connection Warning Installation and Children could lock themselves in the connection dryer, putting their lives at risk! Do not set up the dryer behind a door S cope of delivery or sliding door as this may obstruct the I n s t a l l a t i o n a n d c o n n e c t i o n dryer door or prevent it from opening. -
Page 15: Optional Accessories
Installation and connection During installation ensure that: Platform: ■ For easier loading and unloading, The dryer is placed on a clean, level ■ raise your dryer with a platform. and firm surface, Transport laundry with the clothes The mains plug can be accessed at ■... -
Page 16: ΠDraining The Condensation
Draining the condensation water Place the condensation hose in the ΠDraining the "parked" position. condensation water C ondensation will form in the appliance D r a i n i n g t h e c o n d e n s a t i o n w a t e r as it dries the laundry. - Page 17 Draining the condensation water Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C). Caution! Accumulated water can be drawn back into the dryer and may cause material damage. Check that the water drains away from the wash basin quickly.
-
Page 18: The Main Points In Brief
The main points in brief The main points in brief T h e m a i n p o i n t s i n b r i e f Load the laundry and close Switch on the dryer. Select a programme and, the door. -
Page 19: Getting To Know Your Appliance
Getting to know your appliance Getting to know your appliance D ryer G e t t i n g t o k n o w y o u r a p p l i a n c e ( Condensate container 0 Control and display panel 8 Drum interior light (depending on the model) @ Dryer door... -
Page 20: Control Panel
Getting to know your appliance Control panel ( Use the programme selector to switch the dryer on and off and to select the programme. 0 Programmes ~ Page 23. 8 Start button for starting or interrupting the programme ~ Page 25. @ Buttons ~ Page 25. -
Page 21: Display Panel
Getting to know your appliance Display panel Display panel Buttons in the display panel "Anti-Crease" selected. ” Fine adjustment of the dryness – level. ( Select the degree of dryness. Time programme selected. 0 Select the drying time. "Ready in" time selected. 8 Select the Ready in time. -
Page 22: Laundry
Laundry Notes Laundry – When washing laundry to be tumble-dried, use the correct P reparing the laundry amount of detergent and care L a u n d r y products as specified in the Warning manufacturer's instructions. Risk of explosion/fire! –... -
Page 23: Programmes And Buttons
Programmes and buttons Programmes and buttons P rogrammes P r o g r a m m e s a n d b u t t o n s Programme and fabrics Maximum load and programme settings/info Name of the programme The maximum load is based on the dry weight of the fabrics Which fabrics is the programme suitable for? - Page 24 Programmes and buttons Ζεστό πρόγρ. χρόνου (Time programme warm) 3 kg All types of fabric; time programme. You can adjust the programme length using the button for Suitable for pre-dried or slightly damp laundry and for drying off the drying time. multi-layered, thick laundry.
-
Page 25: Buttons
Programmes and buttons Buttons Buttons Explanations and notes Not all buttons and their functions can be selected in all programmes. Note: If the laundry is too damp after drying, you can finely adjust the dryness level e.g. Επίπεδο Cupboard Dry. The dryness level can be increased with the degree of dryness in στεγνώματος... -
Page 26: Operating The Appliance
Operating the appliance Default programme settings Note: Operating are standard settings that are already defined when a programme the appliance is selected. After selecting a programme, you can see the default L oading laundry and programme settings in the display O p e r a t i n g t h e a p p l i a n c e switching on the dryer panel. -
Page 27: Changing The Programme Or Adding Laundry
Operating the appliance Changing the programme or Removing laundry and adding laundry switching off the dryer You can remove or add laundry and Remove the laundry. change or alter the programme at any Turn the programme selector to the time during drying. "off"... -
Page 28: Clean The Fluff Filter
Operating the appliance Clean the fluff filter Dry the fluff filter, close it and reinsert the fluff filter. During drying, fluff and hair from Note: the laundry is trapped by the fluff filter. If the fluff filter is blocked or dirty, this reduces the flow of air, which prevents the dryer from achieving its maximum performance. -
Page 29: Emptying The Condensate Container
Operating the appliance Emptying the condensate Push in the condensate container until you feel it lock back into place container in the dryer. Condensation will form in the appliance as it dries the laundry. If there is no drain hose connected to the appliance, the condensation water from the appliance will run into the condensation container. -
Page 30: Setting The Signal And Current
Setting the signal and current Activating setting mode Setting the signal and Switch the dryer on. Select the "Cottons" programme in current position 1 and wait for five seconds. Setting mode is now activated. The Y ou can change the following settings: symbols go out on the display panel S e t t i n g t h e s i g n a l a n d c u r r e n t and the programme duration is... -
Page 31: Cleaning
Cleaning Press the "Ready in" time button or Cleaning the drying time button to change the volume. C leaning the dryer and the Turn the programme selector C l e a n i n g control panel clockwise to position 5. The current is shown on the display. -
Page 32: Cleaning The Heat Exchanger
Cleaning Cleaning the heat exchanger Remove the top cap from the heat exchanger. Notes Clean the heat exchanger several ■ times a month if you use the dryer more than twice a week. If there is debris in the heat ■... -
Page 33: Cleaning The Moisture Sensor
Cleaning Remove all fluff from the seals on Cleaning the moisture sensor the dryer and on the heat exchanger. Allow all the water to drip off. The dryer is equipped with a Note: First insert the heat exchanger, and stainless-steel moisture sensor. The then fit the heat exchanger's top cap moisture sensor measures how damp in place. -
Page 34: Faults And What To Do About
Faults and what to do about them Faults and what to do about them F a u l t s a n d w h a t t o d o a b o u t t h e m Faults Cause/remedy ð... - Page 35 Faults and what to do about them Faults Cause/remedy Drying time too long? The fluff filter may be dirty and cause a longer drying time. Clean the fluff fil- ■ ter. If the air inlet on the dryer is blocked or not freely accessible, this may ■...
-
Page 36: After-Sales Service
After-sales service After-sales service A fter-sales service A f t e r - s a l e s s e r v i c e If you cannot rectify the fault yourself (faults, what to do?), please contact our after-sales service. We will always find an appropriate solution to avoid unnecessary visits by engineers. -
Page 37: Consumption Values
Consumption values Consumption values C onsumption values table C o n s u m p t i o n v a l u e s Spin speed used for Programme spinning the Duration** Energy consumption** laundry Cottons 9 kg 4.5 kg 9 kg 4.5 kg 10/13 A... -
Page 38: Technical Data
Technical data Technical data D imensions: T e c h n i c a l d a t a 85 x 60 x 60 cm Height x width x depth Weight: Approx. 45 kg Maximum load: 9 kg Condensate container: 4.6 l Connected voltage: 220 - 240 V... - Page 40 Free and easy registration – also on mobile phones: www.bosch-home.com/welcome Looking for help? You´ll find it here. Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
