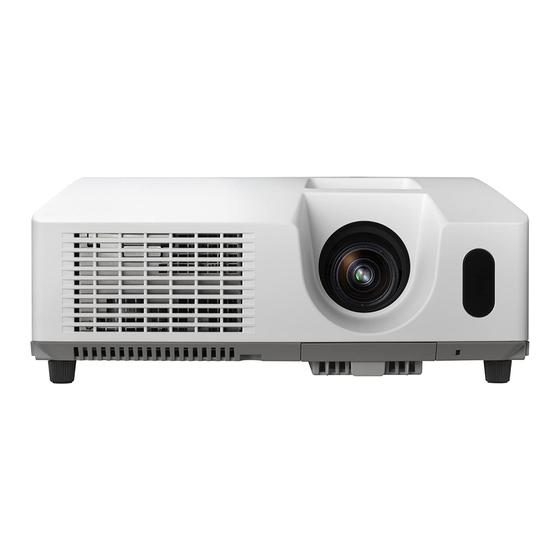

Hitachi CP-X2011N User Manual
  1. Manuals
  2. Brands
  3. Hitachi Manuals
  4. Projector
  5. CP-X2011N
  6. User manual
Hitachi CP-X2011N User Manual

Hitachi CP-X2011N User Manual

Hitachi cp-x2011n: user guide
Hide thumbs Also See for CP-X2011N:

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
Projector
CP-X2011N/CP-X2511N
/CP-X3011N/CP-X4011N
User's Manual (detailed)
Operating Guide – Technical
Example of computer signal
Resolution (H x V) H. frequency (kHz) V. frequency (Hz)
720 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1280 x 768
1280 x 800
1280 x 960
1280 x 1024
1280 x 1024
1280 x 1024
1400 x 1050
1600 x 1200
NOTE
• Be sure to check jack type, signal level, timing and resolution before
connecting this projector to a PC.
• Some PCs may have multiple display screen modes. Use of some of these modes
will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some cases.
Refer to the number of display pixels above.
• Although the projector can display signals with resolution up to UXGA (1600x1200),
the signal will be converted to the projector's panel resolution before being displayed.
The best display performance will be achieved if the resolutions of the input signal
and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a composite
sync or a sync on G.
37.9
31.5
37.9
37.5
43.3
35.2
37.9
48.1
46.9
53.7
49.7
48.4
56.5
60.0
68.7
67.5
47.7
49.7
60.0
64.0
80.0
91.1
65.2
75.0
1
Rating
85.0
VESA
59.9
VESA
72.8
VESA
75.0
VESA
85.0
VESA
56.3
VESA
60.3
VESA
72.2
VESA
75.0
VESA
85.1
VESA
74.5
60.0
VESA
70.1
VESA
75.0
VESA
85.0
VESA
75.0
VESA
60.0
VESA
60.0
VESA
60.0
VESA
60.0
VESA
75.0
VESA
85.0
VESA
60.0
VESA
60.0
VESA
Signal mode
TEXT
VGA (60Hz)
VGA (72Hz)
VGA (75Hz)
VGA (85Hz)
SVGA (56Hz)
SVGA (60Hz)
SVGA (72Hz)
SVGA (75Hz)
SVGA (85Hz)
Mac 16" mode
XGA (60Hz)
XGA (70Hz)
XGA (75Hz)
XGA (85Hz)
1152 x 864 (75Hz)
W-XGA (60Hz)
1280 x 800 (60Hz)
1280 x 960 (60Hz)
SXGA (60Hz)
SXGA (75Hz)
SXGA (85Hz)
SXGA+ (60Hz)
UXGA (60Hz)

Advertisement

loading

Related Manuals for Hitachi CP-X2011N

Summary of Contents for Hitachi CP-X2011N

  • Page 1 • Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above. • Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector’s panel resolution before being displayed.
  • Page 2 Initial set signals Initial set signals The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu. Back porch (B) Active video (C) Data...
  • Page 3 Connection to the ports NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed. TYPE A DC5V 0.5A COMPUTER IN1, COMPUTER IN2, D-sub 15pin mini shrink jack <Computer signal> • Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive) •...
  • Page 4 Connection to the ports (continued) TYPE A DC5V 0.5A COMPONENT Cb/Pb RCA jack x3 • System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60 Port Component video Y, 1.0±0.1Vp-p with composite sync, 75Ω terminator Cb/Pb Component video Cb/Pb, 0.7±0.1Vp-p, 75Ω terminator Cr/Pr Component video Cr/Pr, 0.7±0.1Vp-p, 75Ω terminator S-VIDEO Mini DIN 4pin jack •...

  • Page 5: Audio Out

    TYPE A DC5V 0.5A HDMI • Type :Digital audio/video connector • Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz) Signal T.M.D.S. Data2 + T.M.D.S. Data2 Shield T.M.D.S. Data2 - T.M.D.S. Data1 + T.M.D.S. Data1 Shield T.M.D.S. Data1 - T.M.D.S. Data0 + AUDIO IN1, AUDIO IN2 Ø3.5 stereo mini jack...
  • Page 6 Connection to the ports (continued) TYPE A DC5V 0.5A USB TYPE A USB A type jack Signal - Data + Data Ground CONTROL D-sub 9pin plug • About the details of RS-232C communication, please refer to the following page. Signal (No connection) RJ-45 jack Signal...

  • Page 7: To Input Scart Rgb Signal

    TYPE A TYPE B DC5V 0.5A RCA plugs To input SCART RGB signal to the projector, use a SCART to RCA cable. Connect the plugs refer to above ex.. For more reference, please consult your dealer. Connection to the ports (continued)
  • Page 8 RS-232C cable (cross). Use the cable that fulfi lls the specifi cation shown in fi gure Turn the computer on, and after the computer has started up turn the projector Set the COMMUNICATION TYPE to OFF. ( COMMUNICATION in the User's Manual - Operating Guide)
  • Page 9 1. Protocol 19200bps,8N1 2. Command format Byte Number Command Action <SET>Change setting to desired value [(cL)(cH)] by [(eL)(eH)]. <GET>Read projector internal setup value [(bL) (bH)] . <INCREMENT> BEh EFh Increment setup value [(bL)(bH)] by 1. <DECREMENT> Decrement setup value [(bL)(bH)] by 1.
  • Page 10 When the projector cannot execute the received command for any reasons, the projector returns the error code. In such a case, check the sending code and the setting status of the projector. (4) Data reply : 1Dh + xxxxh When the projector receives the GET command correctly, the projector returns the responce code and 2 bytes of data.

  • Page 11: Command Control Via The Network

    Connection Turn off the projector and the computer. Connect the projector's LAN port and the computer's LAN port with a LAN cable. Use the cable that fulfi lls the specifi cation shown in fi gure (Use CAT-5 or greater LAN Cable when LAN ports are used ) Turn the computer on, and after the computer has started up turn the projector on.
  • Page 12 Command Control via the Network Communicaion Port The following two ports are assigned for the command control. TCP #23 TCP #9715 Configure the following items form a web browser when command control is used. Port Settings Network Control Port1 (Port: 23) Network Control Port2 (Port: 9715) When the authentication setting is enabled, the following settings are required.

  • Page 13: Command Control Settings

    [Connection ID] Random value from 0 to 255 (This value is attached to the reply data). NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data. • Provide an interval of at least 40ms between the response code and any other code.
  • Page 14 (5) Authentication error reply : 1Fh + 0400h + ××h (6) Projector busy reply: 1Fh + ××××h + ××h When the projector is too busy to receives the command ,the projector returens the error code. In such a case, check the sending code and send the same command again.
  • Page 15 Connect the projector's CONTROL port and the RS-232C port of the devices that you want to control with a RS-232C cable. Turn the computer on, and after the computer has started up turn the projector Set the COMMUNICATION TYPE to NETWORK BRIDGE. (...

  • Page 16: Communication Settings

    NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables. • Turn off (the power of ) both the projector and other devices and unplug , beore connecting them.
  • Page 17 RS-232C Communication / Network command table (continued) RS-232C Communication / Network command table Names Operation Type Turn off Turn on Power COMPUTER IN1 COMPUTER IN2 COMPONENT S-VIDEO Input Source VIDEO USB TYPE A USB TYPE B Error Status MAGNIFY Increment Decrement NORMAL FREEZE...
  • Page 18 RS-232C Communication / Network command table (continued) Names Operation Type CONTRAST Execute Reset 1 DEFAULT 1 CUSTOM 2 DEFAULT 2 CUSTOM 3 DEFAULT 3 CUSTOM GAMMA 4 DEFAULT 4 CUSTOM 5 DEFAULT 5 CUSTOM 6 DEFAULT 6 CUSTOM 9 steps gray scale User Gamma 15 steps gray scale BE EF Pattern...
  • Page 19 RS-232C Communication / Network command table (continued) Names Operation Type User Gamma Increment Point 7 Decrement User Gamma Execute Point 7 Reset User Gamma Increment Point 8 Decrement User Gamma Execute Point 8 Reset 1 HIGH 1 CUSTOM 2 MID 2 CUSTOM 3 LOW 3 CUSTOM...
  • Page 20 RS-232C Communication / Network command table (continued) Names Operation Type COLOR TEMP Increment OFFSET B Decrement COLOR TEMP OFFSET B Execute Reset COLOR Increment Decrement COLOR Reset Execute TINT Increment Decrement TINT Reset Execute SHARPNESS Increment Decrement SHARPNESS Execute Reset ACTIVE IRIS THEATER PRESENTATION...
  • Page 21 RS-232C Communication / Network command table (continued) Names Operation Type H POSITION Increment Decrement H POSITION Execute Reset H PHASE Increment Decrement H SIZE Increment Decrement H SIZE Reset Execute AUTO ADJUST Execute EXECUTE PROGRESSIVE VIDEO NR AUTO SMPTE240 COLOR SPACE REC709 REC601 COMPONENT...
  • Page 22 RS-232C Communication / Network command table (continued) Names Operation Type AUTO VIDEO HDMI FORMAT COMPUTER AUTO NORMAL HDMI RANGE ENHANCED AUTO COMPUTER IN1 SYNC ON G OFF AUTO COMPUTER IN2 SYNC ON G OFF FRAME LOCK – COMPUTER IN1 FRAME LOCK – COMPUTER IN2 FRAME LOCK - HDMI...
  • Page 23 RS-232C Communication / Network command table (continued) Names Operation Type COMPUTER IN1 COMPUTER IN2 MONITOR OUT - COMPONENT COMPUTER IN1 MONITOR OUT COMPUTER IN2 - S-VIDEO COMPUTER IN1 COMPUTER IN2 MONITOR OUT - VIDEO COMPUTER1 COMPUTER2 MONITOR OUT COMPUTER IN 3 - HDMI COMPUTER1 MONITOR OUT...
  • Page 24 RS-232C Communication / Network command table (continued) Names Operation Type VOLUME - HDMI Increment Decrement VOLUME - LAN Increment Decrement VOLUME - USB Increment TYPE A Decrement VOLUME - USB Increment TYPE B Decrement VOLUME - Increment STANDBY Decrement MUTE SPEAKER AUDIO IN1 AUDIO IN2...
  • Page 25 RS-232C Communication / Network command table (continued) Names Operation Type AUDIO1 AUDIO AUDIO2 SOURCE - AUDIO3 HDMI AUDIO_HDMI AUDIO IN1 AUDIO IN2 AUDIO SOURCE - AUDIO IN3 COMPONENT AUDIO IN1 AUDIO IN2 AUDIO SOURCE - AUDIO IN3 S-VIDEO AUDIO IN1 AUDIO IN2 AUDIO SOURCE -...
  • Page 26 RS-232C Communication / Network command table (continued) Names Operation Type POLSKI TÜRKÇE DANSK ČESKY MAGYAR ROMÂNĂ SLOVENSKI HRVATSKI ΕΛΛΗΝΙΚΑ LANGUAGE LIETUVIŲ EESTI LATVIEŠU ‫ﺓیﺏﺭﻉﻝﺍ ﺓﻍﻝﻝﺍ‬ ‫ﻯﺱﺭﺍﻑ‬‎ PORTUGUÊS BRA BE EF NOTE) Not all of the languages in this table are supported. MENU Increment POSITION H...
  • Page 27 RS-232C Communication / Network command table (continued) Names Operation Type TEST PATTERN DOT-LINE1 DOT-LINE2 DOT-LINE3 DOT-LINE4 TEMPLATE CIRCLE 1 CIRCLE 2 MAP 1 MAP 2 TEMPLATE On/ C. C. - DISPLAY AUTO CAPTIONS C. C. - MODE C. C. - CHANNEL AUTO SEARCH AUTO...
  • Page 28 RS-232C Communication / Network command table (continued) RS-232C Communication / Network command table (continued) Names Operation Type COMPUTER IN1 COMPUTER IN2 USB TYPE A USB TYPE B HDMI COMPONENT S-VIDEO VIDEO SLIDESHOW MY IMAGE MESSENGER MY BUTTON-1 INFORMATION AUTO KEYSTONE V BE EF MY MEMORY ACTIVE IRIS ＊...
  • Page 29 RS-232C Communication / Network command table (continued) RS-232C Communication / Network command table (continued) Names Operation Type COMPUTER IN1 COMPUTER IN2 USB TYPE A USB TYPE B MY SOURCE HDMI COMPONENT S-VIDEO VIDEO Magnify Position Increment Decrement Magnify Position Increment Decrement REMOTE FREQ.

  • Page 30: Pjlink Command

    PJLink command PJLink command Commands Control Description POWR Power Contorol POWR ? Power Status inquiry INPT Input Source selection INPT ? Input Source inquiry AVMT AV Mute AVMT ? AV Mute inquiry (continued on next page) Parameter or Response 0 = Standby 1 = Power On 0 = Standby 1 = Power On...
  • Page 31 1st number (digits 1 to 5): Lamp Time 2nd number : 0 = Lamp off, 1 = Lamp on 11 12 21 22 23 31 41 51 52 Responds with the name set in "PROJECTOR NAME" of "NETWORK" HITACHI CP-X2011N...
