Navien G 002212 Series Installation Instructions

Condensate neutralizer

Advertisement

Quick Links

INTRODUCTION
WARNING
Please follow these installation instructions carefully in order to avoid a safety hazard and/or injury.
• "Risk of damage to appliance". The neutralizer kit inlet and discharge must be at a lower
elevation than the condensate drain from appliance.
• Do NOT allow exhaust ue gases to vent through the neutralizer kit. All condensate drains
must have a trap to prevent ue gas leakage. Flue gas leakage can cause injury or death from
carbon monoxide.
• Connection to the appliance and neutralizer kit must be installed to ensure that no
condensate back ow can occur into the appliance.
• Do not connect more than ONE appliance to the neutralizer kit.

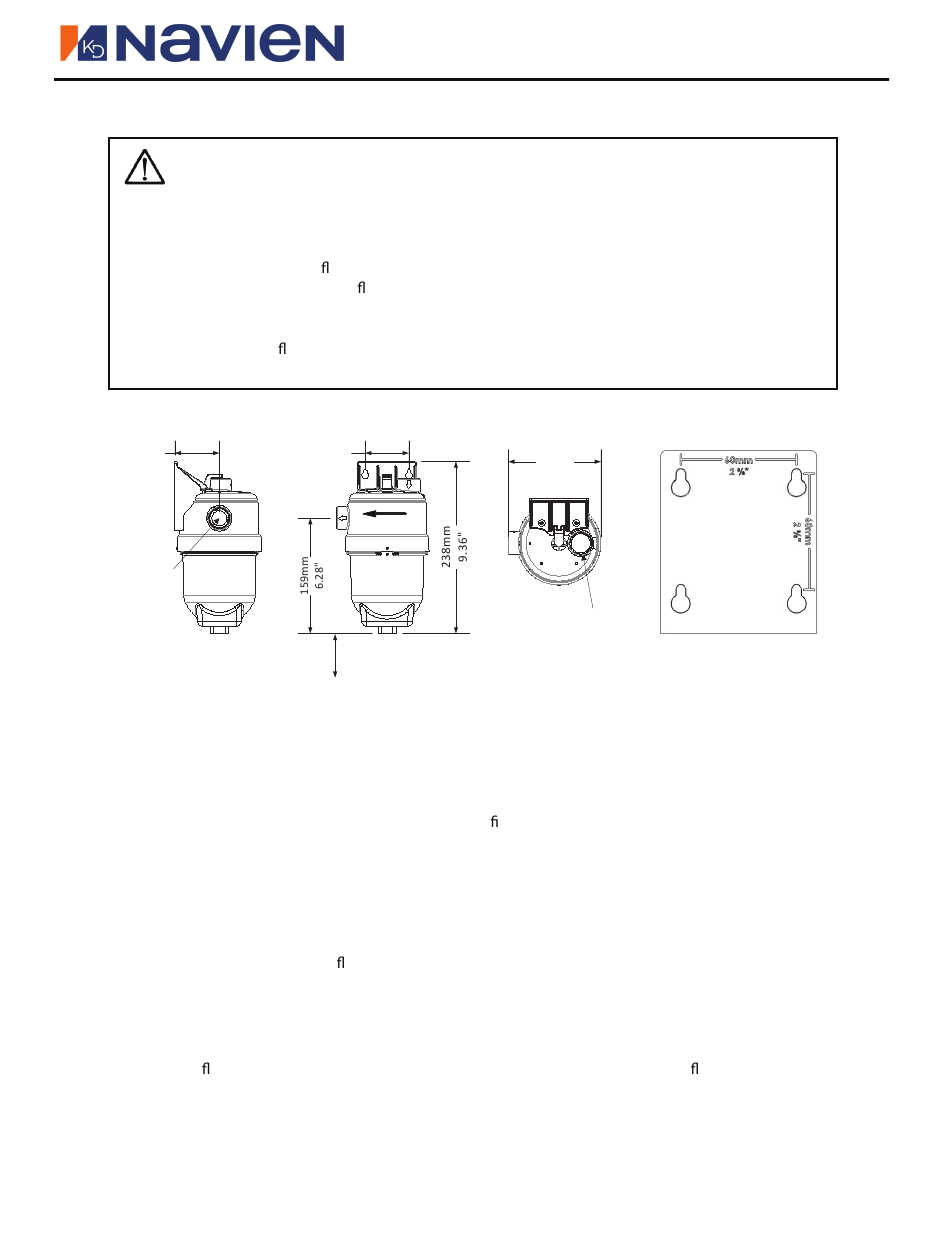

DIMENSIONS AND INCLUDED PARTS
62mm
2.43"
¾" FNPT outlet
SPECIFICATIONS
Condensate Neutralizer Kit Part No.: GXXX002212
Replacement Media Part No.: GXXX001323
Max Flow Rate: 1.6 gph (6.05 lph)
Weight: 4.0 lbs (2.0 +/- 5% kgs)
Condensate Neutralizer Kit Includes:
• One (1) corrosion-resistant neutralizer housing with 4" ll/access openings (0.26 gallon / 1 liter volume)
with 3/4"- 14 FNPT threaded INLET and OUTLET connections
• One (1) 1/2" FNPT x 1/2" PVC Socket Weld Adapter
• Two (2) 3/4" MNPT x 1/2" PVC Socket Weld Adapters
• One (1) Wall Mounting Bracket with Screws
OPERATION
• The appliance condensate will ow through the neutralizing media, raising the pH of the condensate to a level
that will help prevent corrosion of the domestic drain and the public sewer system.
PREPARE FOR INSTALLATION
NOTE: Connections to the appliance and neutralizer kit must be installed to ensure that no condensate
back ow can occur. Connect corrosion resistant piping and secure it to the oor or wall to prevent
movement and/or damage.
Open the capsule and ensure media is level inside. If necessary, the orientation of the neutralizer can be reversed
by removing the wall bracket and moving it to the other side of the lid (see Figure 1 on next page).
• The INLET has a top connection port and the OUTLET has a side connection. Mount the neutralizer unit on the
wall by securing it with the provided bracket (see INCLUDED PARTS section above).
60mm
2.37"
FLOW
70 mm
*Required
3.75" mm
bo�om clearance
Condensate Neutralizer
Installation Instructions
128mm
5.03"
Wall Bracket
¾" FNPT Inlet
