SAFETY INSTRUCTIONS
Download the complete instruction manual www.
ariston.com.au or call the phone number shown on
the warranty booklet.
Before using the appliance, read these safety
instructions. Keep them nearby for future reference.
These instructions and the appliance itself provide
important safety warnings, to be observed at all times.
The manufacturer declines any liability for failure to
observe these safety instructions, for inappropriate
use of the appliance or incorrect setting of controls.
These instructions are valid if the country symbol
appears on the appliance. If the symbol doesn't
appear on the appliance, it is necessary to refer to the
technical instructions which will provide the necessary
instructions concerning
to the conditions of use of the country.
CAUTION: The use of the gas cooking appliance
results in the production of heat, moisture and
products of combustion in the room in which it is
installed. Ensure that the kitchen is well ventilated
especially when the appliance is in use: keep natural
ventilation holes open or install a mechanical
ventilation device (mechanical extractor hood).
Prolonged intensive use of the appliance may call for
additional ventilation, for example opening of the
window, or more
level of mechanical ventilation where present.
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age must be kept away unless continuously supervised.
WARNING: If the surface is cracked, switch o the
appliance to avoid the possibility of electric shock.
WARNING: Danger of
the cooking surfaces.
CAUTION: The cooking process has to be
supervised. A short cooking process has to be
supervised continuously.
WARNING: Unattended cooking on a hob with fat
or oil can be dangerous – risk of
extinguish a
with water, but switch
blanket.
Do not use the hob as a work surface or support.
Do not use or store
appliance.
If the information in this manual is not followed
exactly, a
or explosion may result causing property
damage or injury.
Very young children (0-3 years) should be kept
away from the appliance. Young children (3-8 years)
should be kept away from the appliance unless
continuously supervised. Children from 8 years old
and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge can use this appliance only if they are
of the appliance
ventilation, increasing the
Do not store items on
NEVER try to
materials in or near this
IMPORTANT TO BE READ AND OBSERVED
supervised or have been given instructions on safe
use and understand the hazards involved. Children
must not play with the appliance. Cleaning and user
maintenance must not be carried out by children
without supervision.
CAUTION: In case of hotplate glass breakage:-shut
immediately
element and isolate the appliance from the power
supply; - do not touch the appliance surface; -do not
use the appliance.
In case the appliance has a glass lid, it can break in if it
is heated up. Turn
plates before closing the lid. Do not shut down lid
when burner is alight.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IS IN OPERATION.
DO NOT MODIFY THIS APPLIANCE.
DO NOT USE THIS APPLIANCE AS A SPACE HEATER.
DO NOT USE OR STORE FLAMMABLE MATERIALS
NEAR THIS APPLIANCE.
PERMITTED USE
CAUTION: the appliance is not intended to be
operated by means of an external switching device,
such as a timer, or separate remote controlled system.
This appliance is intended to be used in household
and similar applications such as:
shops,
and other working environments; farm
houses; by clients in hotels, motels, bed & breakfast
and other residential environments.
No other use is permitted (e.g. heating rooms).
This appliance is not for professional use. Do not
use the appliance outdoors.
Use pots and pans with bottoms the same width as
that of the burners or slightly larger (see
Make sure pots on the grates do not protrude beyond
the edge of the hob.
Improper use of the grids can result in damage to
the hob: do not position the grids upside down or
slide them across the hob.
If the hob surface is in glass material, do not use the cast iron griddles, ollar
the
stones, terracotta pots and pans.
Do not use: heat
burners simultaneously for one receptacle (e.g. Fish kettle).
Should particular local conditions of the delivered gas make the ignition of
In case of installation of a hood above the cooktop, please refer to the hood
instructions for the correct distance.
The protective rubber feet on the grids represent a choking hazard for
young children. After removing the grids, please ensure that all the feet are
INSTALLATION
The appliance must be handled and installed by
two or more persons - risk of injury. Use protective
gloves to unpack and install - risk of cuts.
Installation, including water supply (if any) and
electrical connections, and repairs must be carried out
part of the appliance unless
all burners and any electrical heating
all the burners and the electric
kitchen areas in
such as metal mesh, or any other types; two
EN
table).
stated in the

Advertisement

Table of Contents
loading

Summary of Contents for Ariston GGA24BKAUS

  • Page 1 IMPORTANT TO BE READ AND OBSERVED Download the complete instruction manual www. supervised or have been given instructions on safe ariston.com.au or call the phone number shown on use and understand the hazards involved. Children the warranty booklet. must not play with the appliance. Cleaning and user...
  • Page 2: Gas Connection

    user manual. Keep children away from the installation GAS CONNECTION WARNING: Prior to installation, ensure that the site. After unpacking the appliance, make sure that it local distribution conditions (nature of gas and gas has not been damaged during transport. In the event pressure) and the adjustment of the appliance are of problems, contact the dealer or your nearest After- compatible.
  • Page 3: Cleaning And Maintenance

    CLEANING AND MAINTENANCE After connection to the gas supply, check for leaks WARNING: Ensure that the appliance is switched with soapy water. Light up the burners and turn the and disconnected from the power supply before knobs from max position to minimum position to performing any maintenance operation;...
  • Page 4: Installation

    DIMENSIONS AND DISTANCES TO BE MAINTAINED Mod.: GGA24BKAUS Mod.: GGA34BKAUS The appliance belongs to class 3 and is therefore subject to al l the provisions established by the provisions governing such appliances. NOTE: In case of installation of a hood above the cooktop please refer to the range hood instructions for the correct distance. Clearance A, between the highest part of the highest burner of the gas cooking appliance and a range hood or exhaust fan (overhead clearance), shall be no less than 600 mm for a range hood, and no less than 750 mm for an exhaust fan.
  • Page 5 ASSEMBLY Position the hob in the worktop opening made respecting the dimensions indicated in the Instruction. Check that the appliance is in a good condition after having removed the outer packaging and internal wrappings from around the various loose Never leave the packaging materials (cardboard, bags, polystyrene foam, nails, etc.) within children’s reach since they could become potential sources of danger.
  • Page 6 The gas connection is located in the rear and on the right hand underside of these appliances: 24 mm (mod: GGA24BKAUS), 230 mm (mod: GGA34BKAUS). B. If installing with a hose assembly, install with a hose assembly that complies with AS/NZS 1869, 10mm ID, class B or D, no more than 1.2m long and in accordance with AS/NZS 5601.
  • Page 7 ELECTRICAL CONNECTION IMPORTANT: the appliance must be installed following the manufacturer's instructions. The manufacturer will not be liable for injury to persons or animals or property damage caused by an incorrect installation. of the appliance 380 mm from the right hand side. The voltage and power consumption are detailed on the underside of the appliance. Ensure that the appliance is correctly rated to the supply.

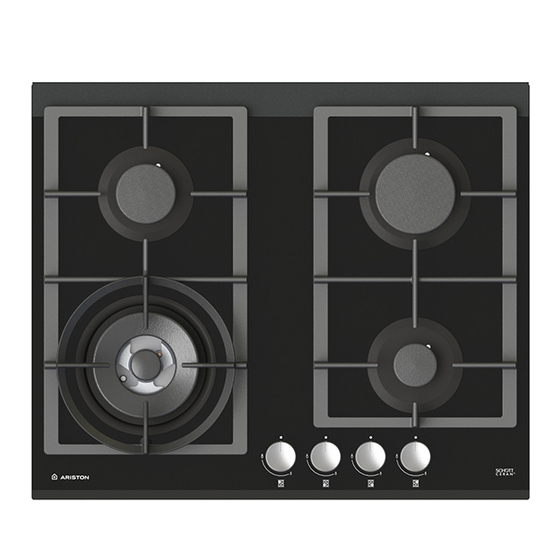

  • Page 8: Product Description

    PRODUCT DESCRIPTION MODEL: GGA34BKAUS GGA24BKAUS Natural U-LPG Ultra rapid gas burner/WOK 14.5 MJ/h 12.6 MJ/h Rapid gas burner 12.0 MJ/h 10.4 MJ/h Semirapid reduced gas burner 5.4 MJ/h 4.9 MJ/h Symbols Semirapid gas burner 7.1 MJ/h 6.3 MJ/h Shaded circle...
  • Page 9 PRACTICAL ADVICE FOR USING THE BURNERS ADAPTING TO DIFFERENT TYPES OF GAS EN please stick to the following rules: • use pots and pans with bottoms the same width as that of the burners or slightly larger (see table on the right); •...
  • Page 10: Replacing The Injectors

    NATURAL GAS TO UNIVERSAL LP GAS CONVERSION PROCEDURE Appliance models: Gas vitroceramic cooktop models: 60 cm. 4 Burners 90 cm. 5 Burners 1. Remove each burner cap and burner skirt. 2. Remove the Natural Gas main injector with a 7 mm/VF tube spanner and replace with the appropriate size Universal LP Gas main injector for each burner.
  • Page 11: Maintenance And Cleaning

    MAINTENANCE AND CLEANING WARNINGS: Disconnect the appliance from the power supply. Comply with the following instructions, before remounting the parts: CLEANING THE HOB SURFACE • • All the enamelled and glass parts should be cleaned with warm water and a neutral solution. Contact the technical assistance service for repairs.
  • Page 12: Wiring Diagram

    Made in X XXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX or require service call: Australia Phone: 1300 762 219 www.ariston.com.au New Zealand Phone: (09) 306 1020 WIRING DIAGRAM GGA24BKAUS GGA34BKAUS HOTPLATES WITH 4 BURNERS HOTPLATES WITH 5 BURNERS ELECTRIC ELECTRIC WIRING WIRING DIAGRAM DIAGRAM IGNITION...
