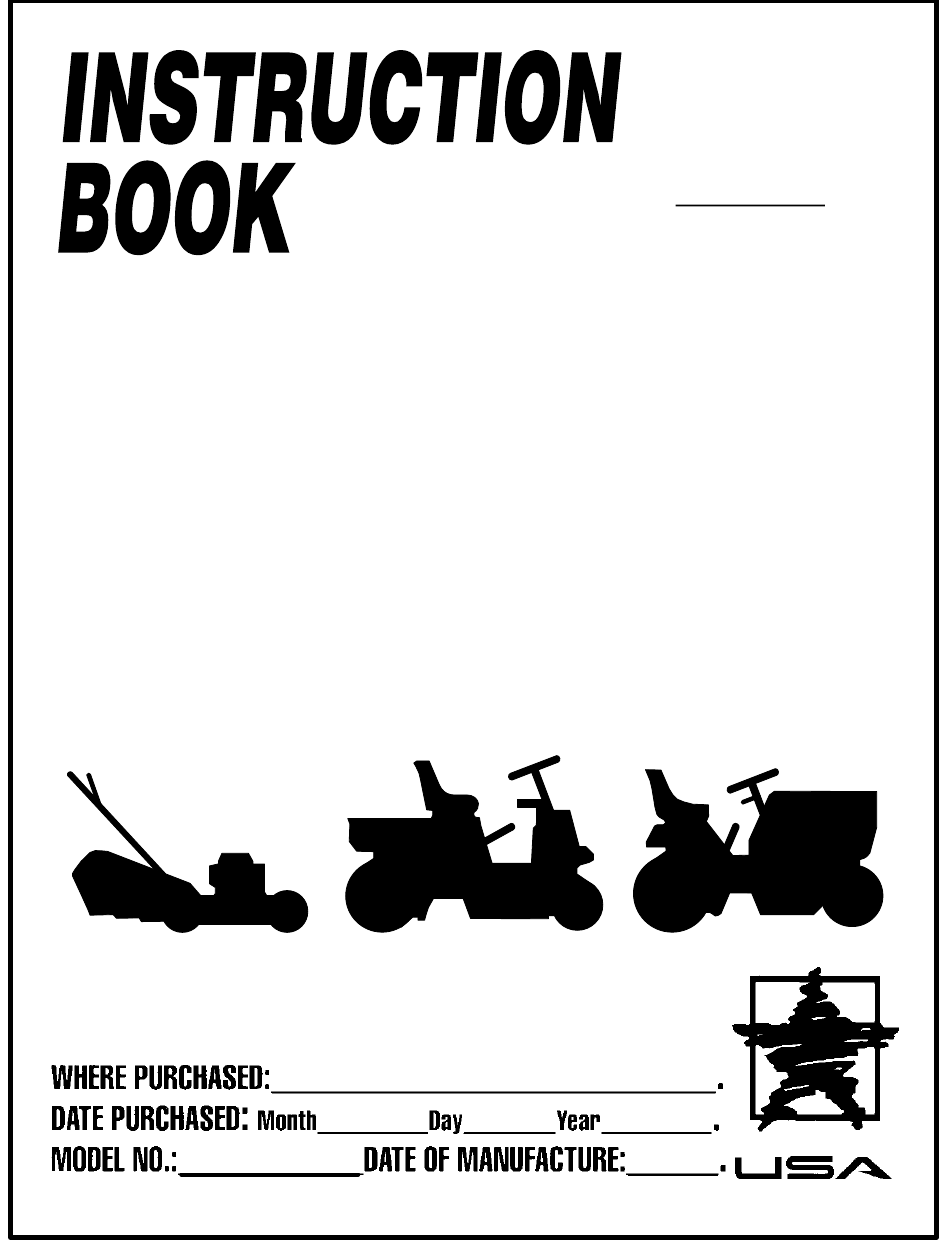

Read and keep this book
for future reference. This book contains
important information on SAFETY, PREPARATION,
OPERATION, AND MAINTENANCE.
PRODUCT INFORMATION
The owner must be certain that all
the product information is included with the unit.
This information includes
the INSTRUCTION BOOKS,
the REPLACEMENT PARTS and the WARRANTIES.
This information must be included to make sure state laws and other laws
are followed.
RECORD THE FOLLOWING INFORMATION ABOUT YOUR UNIT. THIS
INFORMATION IS NECESSARY WHEN ORDERING PARTS OR IN
CASE OF LOSS OR THEFT.
F–040743L
MODEL
465605x48B
BUILT IN THE
