FLAV-R-SAVOR
Merchandising Cabinets
This manual contains important safety information
concerning the maintenance, use and operation of this
product. Failure to follow the instructions contained in this
manual may result in serious injury. If you're unable to
understand the contents of this manual, please bring it to
the attention of your supervisor. Do not operate this
equipment unless you have read and understood the
contents of this manual.
with Heat & Humidity
FSD & FSDT Series
Installation &
Operating Manual
I&W #07.05.005.00
Este manual contiene importante información sobre
seguridad concerniente al mantenimiento, uso y
operación de este producto. Cualquier falla en el
seguimiento de las instrucciones contenidas en este
manual puede resultar en un serio daño. Si usted no
puede entender el contenido de este manual por
favor pregunte a su supervisor. No opere este
equipo al menos que haya leído y comprendido el
contenido de este manual.
®
Advertisement
Table of Contents
Related Manuals for Hatco FLAV-R-SAVOR FSD-1
Summary of Contents for Hatco FLAV-R-SAVOR FSD-1
- Page 1 FLAV-R-SAVOR Merchandising Cabinets with Heat & Humidity FSD & FSDT Series Operating Manual This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in serious injury. If you’re unable to understand the contents of this manual, please bring it to the attention of your supervisor.
-
Page 2: Table Of Contents

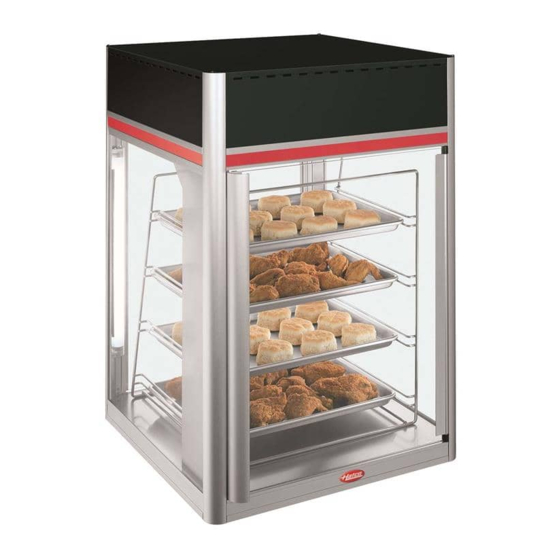

Heat & Humidity are designed to hold prepared foods for prolonged periods of time while maintaining that “just-made” quality. Hatco Heat & Humidity Cabinets provide the best environment for food products by regulating the air temperature while at the same time balancing the humidity level. -
Page 3: Important Safety Instructions
Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject... -
Page 4: Model Description
It has a revolving rack that holds three or four display trays. The FSDT-1 is a single door model with revolving display motor like the FSD-1, but it is 5" (127 mm) taller and holds four or five display trays. MODELS FSD-1X AND FSDT-1X... -
Page 5: Specifications
Model Voltage FSD-1 220-230 (CE) 230-240 (CE) FSD-1X 220-230 (CE) 230-240 (CE) FSD-2 220-230 (CE) 230-240 (CE) FSD-2X 220-230 (CE) 230-240 (CE) FSDT-1 220-230 (CE) 230-240 (CE) FSDT-1X 220-230 (CE) 230-240 (CE) FSDT-2 220-230 (CE) 230-240 (CE) FSDT-2X 220-230 (CE) 230-240 (CE) The electrical information in the shaded areas pertains to Export models only. -
Page 6: Plug Configuration
If the plug and receptacle do not match, contact a qualified electrician to determine the proper voltage and size and install the proper electrical outlet. DIMENSIONS Width Depth Model FSD-1 22-1/2" 24" (572 mm) (610 mm) FSD-1X 22-1/2" 24"... -
Page 7: Installation
UNPACKING The Flav-R-Savor Holding and Display Cabinets are shipped with most components installed and ready for operation. The following installation instructions must be performed before plugging in and operating the cabinet. WARNING Do not lay unit on the side with the control panel or damage to the unit could occur. -
Page 8: Location
INSTALLATION LOCATION WARNING For safe and proper operation, the unit must be located a reasonable distance from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur. CAUTION To avoid any injury or damage locate the Holding Cabinet at the proper counter height, in an area that is convenient for use. -
Page 9: Relocating Proximity Switch
RELOCATING PROXIMITY SWITCH (Rotating Rack Models Only—FSD-1, FSDT-1, FSD-2, FSDT-2) (See Figure 7) FSD Models equipped with rotating rack will require relocating the proximity switch(es) when reversing the door(s). The proximity switch stops the rack from rotating when the door is opened. Follow these steps listed so the proximity switch is in the proper position after reversing the door(s). -
Page 10: Operation
OPERATION WARNING Some exterior surfaces on the unit will get hot. Use caution when touching these areas to avoid injury. WARNING To prevent any injury, discontinue use if power cord is frayed or worn. CAUTION Unit is not weatherproof. For safe and proper operation the unit must be located indoors where the ambient air temperature is a minimum of 70°F (21°C) and a maximum of 85°F (29°C). -
Page 11: Food Holding Guide
Wrapped Sandwiches 2 Hours NOTE: All times and settings are recommendations only and may vary depending on product preparation, cooking time and internal food temperature. GENERAL Hatco Flav-R-Savor Holding Cabinets are designed for maximum durability and performance, with minimum maintenance. -
Page 12: Draining The Reservoir
3. Carefully lower the glass until it rests in the bottom channel of the cabinet. Removing Rotating Rack (Models FSD-1, FSDT-1, FSD-2, FSDT-2) 1. Open the front access door. 2. Remove the two cotter pins from the rotating rack coupling located at the top of the rack inside the cabinet. -
Page 13: Display Light Bulb Replacement
Some aftermarket or generic replacement characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. -
Page 14: Accessories
ACCESSORIES STACKING KIT Special brackets are available for stacking one unit on top of another. This stacking hardware secures the top unit to the lower unit. Holes must be drilled into both units and brackets attached using hardware supplied. (See Figure 11.) ADJUSTABLE LEGS 4"... -
Page 15: Display Racks
DISPLAY RACKS A wide assortment of plated racks are available to “customize” the Flav-R-Savor to your foodservice operation. FSD Only (See Figure 14) 5-Shelf Multi-Purpose Rack, Model - FS5SMPACC 3-Tier Circle Rack, Model - FSD3TCRACC 3-Tier Pan Rack, Model - FS3TPRACC‡ FSDT Only (See Figure 15) 7-Shelf Multi-Purpose Rack, Model - FST7SMPACC 4-Tier Circle Rack, Model - FSDT4TCRACC... -
Page 16: Hatco Limited Warranty
Hatco reserves the right to accept or reject any such claim in whole or in part. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer’s sole expense. - Page 17 NOTES Form No. FSDM-1005 Form No. FSDM-1005...
- Page 18 NOTES Form No. FSDM-1005...
- Page 19 NOTES Form No. FSDM-1005 Form No. FSDM-1005...
-
Page 20: Authorized Parts Distributors
Cone’s Repair Service Flanders Moline 309-797-5323 P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A. Parts & Service Fax (800) 690-2966 Printed in U.S.A. October 2005 HATCO AUTHORIZED PARTS DISTRIBUTORS NEW YORK Acme American Repairs, Inc. 317-545-9655 Brooklyn Alpro Service Co. Brooklyn...
