Eaton Power Xpert C445 Manual

Powtr Xptrt C445 motor managtmtnt rtlay
Component module display stand
Power circuit
L1
L2
L3
PTC M
(Optional)
M

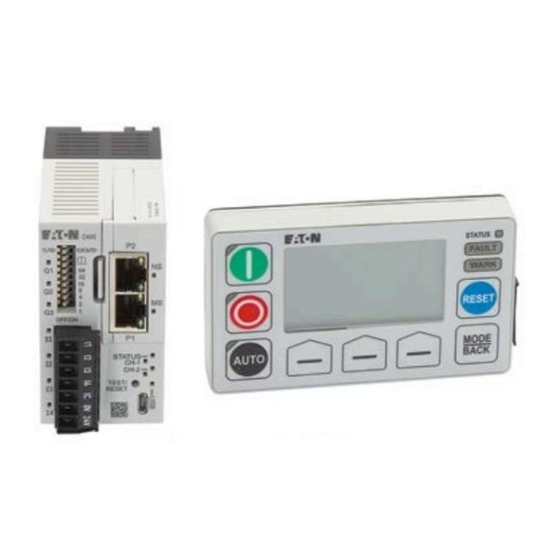

The Power Xpert® C445 motor management relay display
stand is designed to be a compact, interactive sales and
training tool. It simulates a fully line-powered C445
system that can be configured and controlled using the
Power Xpert in Control software via USB.
24 Vdc display stand ftaturts
•
•
•
This dtmo stand can functione:
1. As a standalone tool utilizing the instructions on
2. In conjunction with the Power Xpert inControl software
Using tht Powtr Xptrt inControl PC tool for this dtmoe:
1. Launch the online demo website through www.eaton.com/c445
2. Follow the step-by-step directions as displayed on the screen.
Control circuit
24 Vdc (or)
120/240 Vac
(CH-1)
Base control module, measurement module and user interface
Functional keypad to simulate ON/HAND, OFF , AUTO
and RESET commands
Four pushbuttons to simulate line power and three faults
the reverse side of this pamphlet.
for a more in-depth overview.
by clicking the Power Xpert C445 demo icon.
Automation circuit
M
(CH-2)
Optional Fieldbus Card
PROFIBUS (or)
EtherNet/IP / Modbus TCP
USB
Optional
USB
Modbus Serial
