Model No. IMTL39525
Serial No.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete sat-
isfaction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-753-4645
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Patent Pending
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for Image 10.0 IMTL39525
Summary of Contents for Image 10.0 IMTL39525

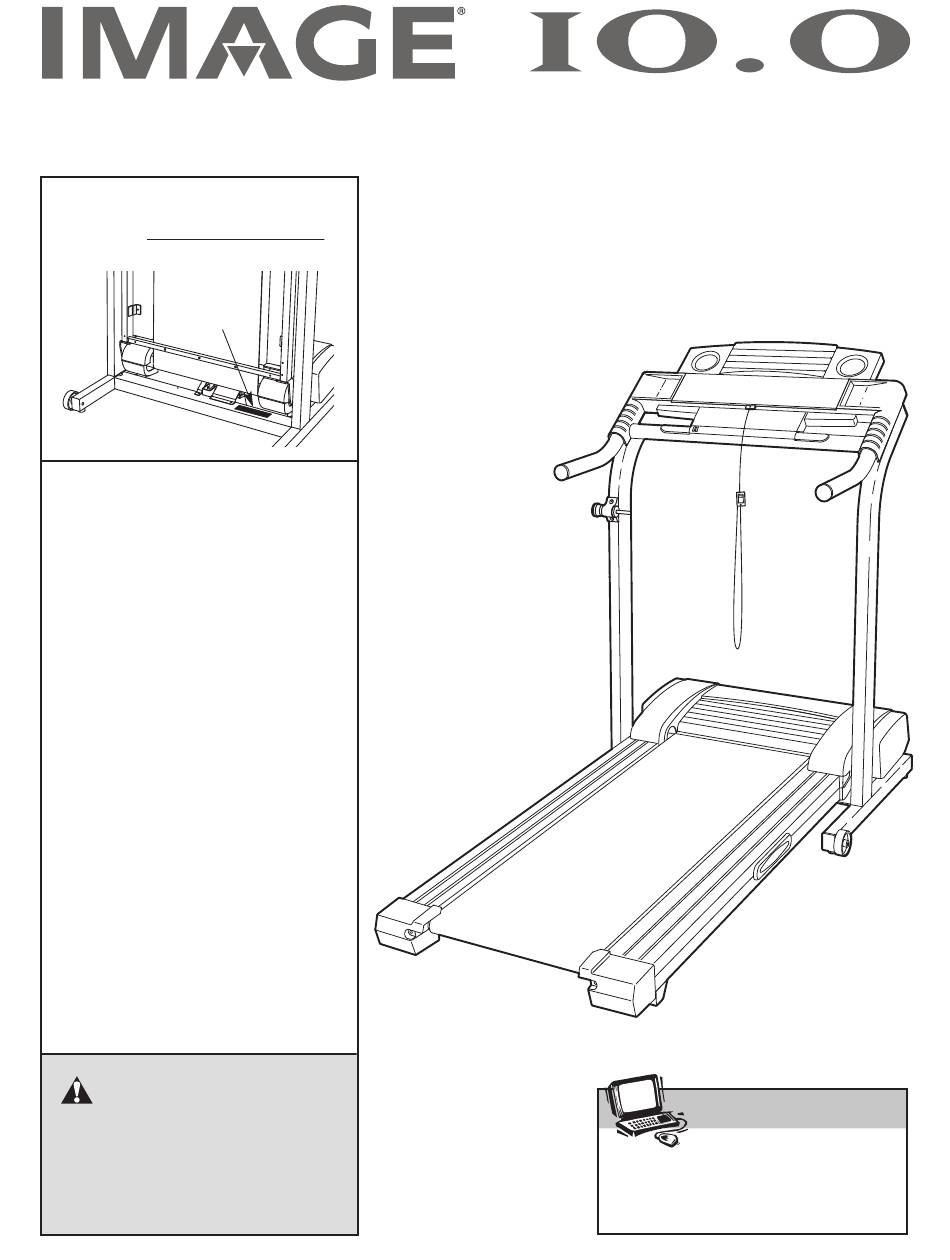

- Page 1 Model No. IMTL39525 USER'S MANUAL Serial No. Serial Number Decal QUESTIONS? If you have questions, or if there are missing or damaged parts, we will guarantee complete sat- isfaction through direct assis- tance from our factory. TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL- FREE CUSTOMER HOT LINE.
-
Page 2: Table Of Contents
LIMITED WARRANTY ............. . .Back Cover Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. IMAGE is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
21. When folding or moving the treadmill, make meets all of the specifications described on sure that the storage latch is fully closed. page 9. To purchase a surge suppressor, see your local IMAGE dealer or call 1-800-753-4645 and order part number 146148. - Page 4 22. When using iFIT.com CDs and videos, an treadmill regularly. electronic “chirping” sound will alert you when the speed of the treadmill is about to 26. Never insert or drop any object into any change. Always listen for the “chirp” and be opening.
-
Page 5: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the new IMAGE ® 10.0 tread- Department toll-free at 1-800-753-4645, Monday mill. The 10.0 treadmill combines advanced technology through Friday, 6 a.m. until 6 p.m. Mountain Time (ex- with innovative design to help you get the most from cluding holidays). -
Page 6: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires your own Phillips screw- driver , adjustable wrench , wire cutters , and needlenose pliers Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 7 3. Make sure that the Right Upright (10) is turned so it bends in the direction shown. Insert two 3” Bolts (47) with Washers (29) through the Base (82) and hand tighten the Bolts into the lower end of the Right Upright. With the help of a second person, tip the treadmill onto Bend its other side and repeat steps 1 through 3.
- Page 8 7. Insert the excess Wire Harness (17) down into the Right Upright (10) as you set the right Handrail (85) on the Right Upright. Hand tighten two 4” Bolts (89) with Washers (29) through the Right Upright into the right Handrail. Be careful not to pinch the Wire Harness.
-
Page 9: Operation And Adjustment
Adapter ing 1 at the right). To purchase a surge suppres- Surge Suppressor sor, see your local IMAGE dealer or call 1-800-753- 4645 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). - Page 10 CONSOLE DIAGRAM Note: If there is a thin sheet of Clip plastic on the console, remove it. The console also features iFIT.com interactive technol- CAUTION: ogy. IFIT.com technology is like having a personal trainer Before operating the right in your home. Using the included audio cable, you console, read the following precautions.
- Page 11 HOW TO TURN ON THE POWER Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 Plug in the power cord (see page 9). mph.
- Page 12 Time display—When If the displayed heart rate appears to be too high the manual mode or the or too low, or if your heart rate is not displayed, lift iFIT.com mode is se- your thumb off the pulse sensor for a few seconds. lected, this display will Then, place your thumb on the pulse sensor as de- show the elapsed time.
- Page 13 The program will continue until the speed setting Press the Start button or the Speed button to for the last period is shown in the Current Period start the program. column and no time remains in the Time display. The walking belt will then slow to a stop. A moment after the button is pressed, the tread- mill will automatically adjust to the first speed set- Note: If the speed setting for the current period is...
- Page 14 HOW TO CONNECT YOUR PORTABLE STEREO HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a 3.5mm LINE OUT jack, see instruction B. If your To use iFIT.com CDs, the treadmill must be connected stereo has only a PHONES jack, see instruction C.
- Page 15 HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER Note: If your stereo has an unused LINE OUT jack, Note: If your computer has a 3.5mm LINE OUT jack, see instruction A below. If the LINE OUT jack is see instruction A.
- Page 16 HOW TO CONNECT YOUR VCR B. Plug one end of the audio cable into the jack be- neath the console. Plug the other end of the cable Note: If your VCR has an unused AUDIO OUT jack, into the included adapter. Plug the adapter into an see instruction A below.
- Page 17 If the speed setting is too high or too low, you can HOW TO USE IFIT.COM CD AND VIDEO manually override the setting at any time by PROGRAMS pressing the Speed buttons on the console. However, when the next “chirp” is heard, the speed will change to the next setting of the CD To use iFIT.com CDs or videocassettes, the treadmill or video program.
- Page 18 Return to the treadmill and stand on the foot HOW TO USE PROGRAMS DIRECTLY FROM rails. Find the clip attached to the key and slide OUR WEB SITE the clip onto the waistband of your clothes. When the on-screen countdown ends, the program Our Web site at www.iFIT.com allows you to access will begin and the walking belt will begin to move.
- Page 19 THE INFORMATION MODE The Distance/Laps display will show the total number of miles The console features an information mode that keeps (or kilometers) that the walking track of the total number of hours that the treadmill has belt has moved. been operated and the total number of miles that the walking belt has moved.
-
Page 20: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. - Page 21 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin.
-
Page 22: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-753-4645, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a. - Page 23 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may be- come damaged.
-
Page 24: Conditioning Guidelines
CONDITIONING GUIDELINES ergy. Only after the first few minutes does your body WARNING: begin to use stored fat calories for energy. If your goal Before beginning this is to burn fat, adjust the speed and incline of the tread- or any exercise program, consult your physi- mill until your heart rate is near the lowest number in cian. - Page 25 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
-
Page 26: Part List
PART LIST—Model No. IMTL39525 R0404A To identify the parts listed below, see the EXPLODED DRAWING in the center of this manual. No. Qty. Description No. Qty. Description Motor Belt 3” Bolts Pulley/Flywheel/Fan Shield Motor Nut Belt Guide Motor/Pulley/ Battery Cover Flywheel/ Fan Front Belly Pan Incline Motor Bolt... - Page 27 Front Wheel Bumper Incline Motor Shield Edge Guard Base Pad Upright Endcap iFIT Wire Metal Plate Upright Grommet Belly Pan Interface Allen Wrench Rear Foot Spacer 3/4” Tek Screw Cup Holder Handrail Endcap 8” Blue Wire, 2F Power Board Plate 4”...
- Page 28 EXPLODED DRAWING—Model No. IMTL39525 R0404A...
- Page 29 EXPLODED DRAWING—Model No. IMTL39525 R0404A...
-
Page 30: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information: • The MODEL NUMBER OF THE PRODUCT (IMTL39525) • The NAME OF THE PRODUCT (IMAGE ® 10.0 treadmill) • The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual) •...
