Harman Kardon AVR 630 Front Panel Controls Manual

^
A B
1

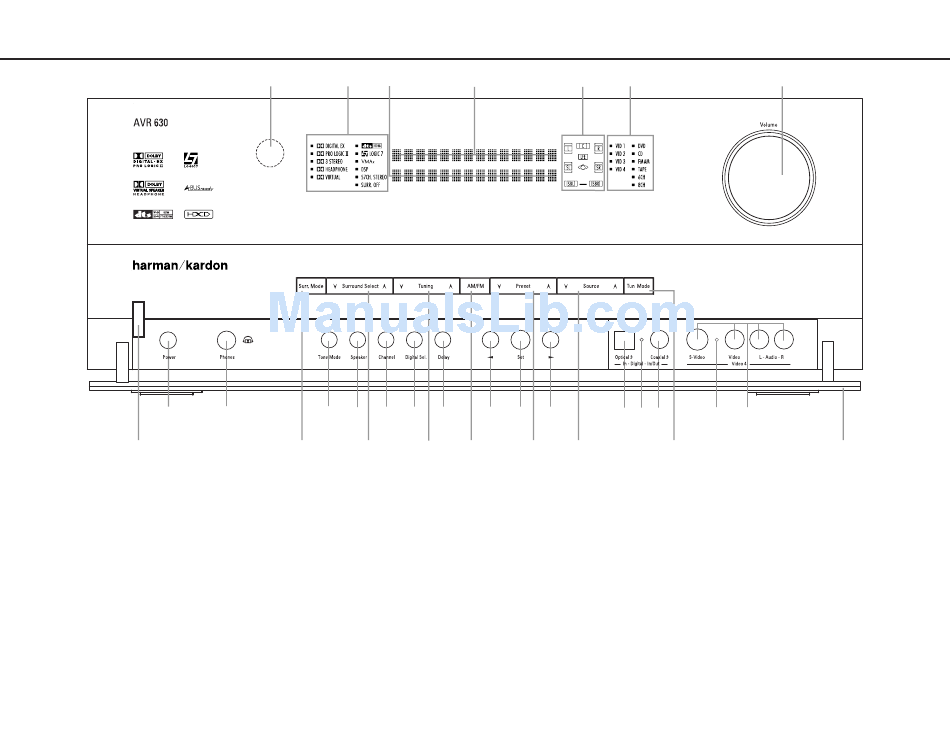

The following controls and indicators are available on the AVR 630's front panel:
1 Standby/On Switch
2 Surround Mode Group Selector
3 Surround Mode Selector
4 Tuning Selector
The following controls and jacks are located behind the front-panel door. To open the door, place the edge
of your finger on the left or right edge of the panel and gently swing the door down towards you.
A Main Power Switch
B Headphone Jack
C Tone Mode Button
D Speaker Selector Button
AVR 630 FRONT-PANEL CONTROLS
% $ #
C D E F G
3 5
2 4
5 Tuner Band Selector
6 Preset Station Selector
7 Input Source Selector
8 Tuning Mode Selector
E Channel Adjust Selector
F Digital Input Selector
G Delay Adjust Selector
@ !
H I H JK L
6 7
9 Front-Panel Control Door
) Volume Control
! Input Indicators
@ Speaker/Channel Input Indicators
H ‹/› Buttons
I Set Button
J Optical 3 Digital Input
)
K M
8 9
# Upper Display Line
$ Lower Display Line
% Surround Mode Indicators
^ Remote Sensor Window
K Input/Output Status Indicators
L Coaxial 3 Digital Jack
M Video 4 Audio/Video Jacks
