Standard response upright sprinkler (k8.0)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
1. DESCRIPTION

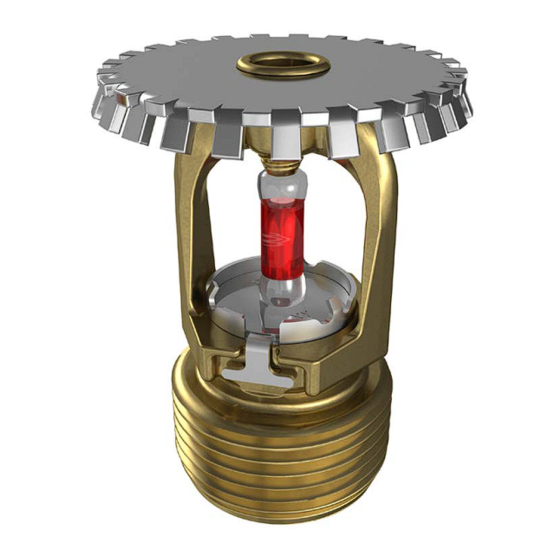

The Viking VK2001 Standard Response Upright Sprinkler is a small thermosensitive
glass bulb spray sprinkler available with various finishes and temperature ratings
to meet design requirements. The special Polyester and Electroless Nickel PTFE
(ENT) coatings can be used in decorative applications where colors are desired.
In addition, these coatings have been investigated for installation in corrosive
environments and are Listed and Approved as indicated in the Approval Chart.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
FM Approved: Classes 2001, 2043
Approved for use in FM Approved vacuum dry sprinkler systems with a maximum
supervisory vacuum pressure of -3 psi (-207 mbar).
CE: Standard EN12259-1, DOP_XT1A
LPCB Approved reference no. 096m
VdS Approved Certificate no. G 422011
Refer to the Approval Chart and Design Criteria for requirements that must be followed.
3. TECHNICAL DATA
Specifications:
Minimum Operating Pressure: 7 psi (0.5 bar)
Rated to: 175 psi (12 bar) water working pressure
Factory tested hydrostatically to 500 psi (34.5 bar)
Thread size: 3/4" NPT (20 mm BSPT)
Nominal K-factor: 8.0 U.S. (115 metric*)
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
* Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Material Standards:
Sprinkler Body: Brass CW602N, UNS-C84400 or QM Brass
Deflector: Stainless Steel UNS S30400
Pip Cap Shell - Stainless Steel UNS-S44400
Pip Cap Disc - Stainless Steel UNS-S30100
Belleville Spring - Nickel Alloy
Pip Cap Seal - Polytetrafluoroethylene (PTFE)
Compression Screw: Brass CW612N, CW508L, UNS-C36000 or UNS-C26000
Shipping Cap: Polyethylene
Bulb: Glass, nominal 5 mm diameter
Ordering Information: (Refer to Table 1 and the current Viking List Price Book.)
4. INSTALLATION
Refer to appropriate NFPA, FM Global, and/or any other applicable installation standards.
NOTICE
Risk of permanent damage.
Over-tightening the sprinkler can cause permanent damage.
> Tighten the sprinkler to a MAXIMUM torque of 20 ft-lbs. (27.1 N-m).
5. OPERATION
During fire conditions, when the temperature around the sprinkler reaches its operating temperature, the heat-sensitive liquid in the
glass bulb expands, causing the bulb to shatter, releasing the pip cap assembly. Water flowing through the sprinkler orifice strikes
the sprinkler deflector, forming a uniform spray pattern to extinguish or control the fire.
6. INSPECTIONS, TESTS AND MAINTENANCE
Refer to NFPA 25 for Inspection, Testing and Maintenance requirements.
Form No. F_020716
Rev 22.1
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
March 3, 2022
Page 1 of 5
VK2001 STANDARD
RESPONSE UPRIGHT
SPRINKLER (K8.0)
Replaces Form No. F_020716 Rev 21.2
(Added LPBC and VdS details)
