Summary of Contents for Echo PE-251

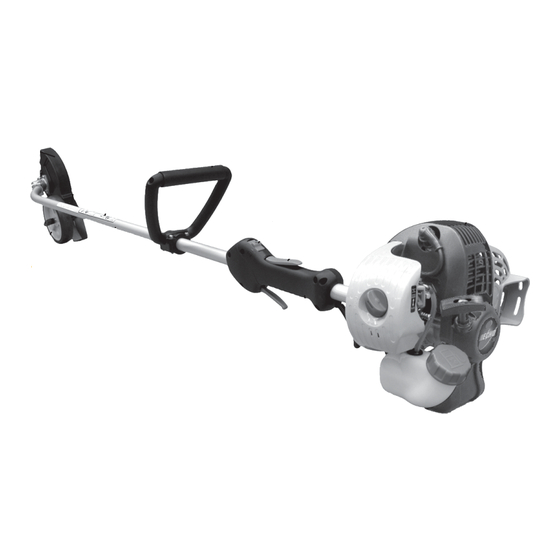

- Page 1 Power Edger Operator's Manual MODEL PE-251 WARNING DANGER Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual and a Safety Manual. Both must be read and understood for proper and safe operation. X750008100 X7502022400 03/05...
-
Page 2: Table Of Contents
NTRODUCTION Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job- dependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You will find both easy to use and full of helpful operations tips and SAFETY messages. -
Page 3: Safety
OWER DGER PERATOR ANUAL AFETY MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you. -
Page 4: Personal Condition And Safety Equipment
Wear no-slip, heavy-duty work gloves to improve your grip on the handle. Gloves also reduce the transmission of machine vibration to your hands. Hearing Protection ECHO recommends wearing hearing protection whenever unit is used. Proper Clothing Wear snug fitting, durable clothing;... - Page 5 OWER DGER PERATOR ANUAL Repetitive Stress Injuries It is believed that overusing the muscles and tendons of the fingers, hands, arms, and shoulders may cause soreness, swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing a Repetitive Stress Injury (RSI).
-
Page 6: Equipment Check
Use only ECHO approved attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual. -
Page 7: Description
Locate these safety decals on your unit. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDER- ING instructions for specific information. - Page 8 1. POWER HEAD - Factory assembled. Includes the engine, clutch, fuel system, ignition system and starter. 2. THROTTLE TRIGGER LOCKOUT - This lever must be held during starting. Operation of the throttle trigger is prevented unless throttle trigger lockout lever is engaged. 3.
- Page 9 The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts.
-
Page 10: Operation
Echo premium Power Blend Universal 2-Stroke Oil may be mixed IMPORTANT at 50:1 ratio for application in all Echo engines sold in the past Spilled fuel is a leading cause of regardless of ratio specified in those manuals. hydrocarbon emissions. Some states... -
Page 11: Starting Cold Engine
OWER DGER PERATOR ANUAL STARTING COLD ENGINE WARNING DANGER The attachment will operate immediately when the engine starts and could result in loss of control and possible serious injury. Keep movable parts of the attachment off the ground and away from objects that could become entangled or thrown. -
Page 12: Starting Warm Engine
The attachment should not move at idle, otherwise serious personal injury may result. NOTE If attachment moves, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. 1. Stop Switch Move stop switch (A) away from the STOP position 2. Primer Pump primer bulb (C) until fuel will be visible and flows freely in the clear fuel tank return line. -
Page 13: Operating Techniques
OWER DGER PERATOR ANUAL OPERATING TECHNIQUES Before edging, water the area to soften the ground to make edging easier. Before edging, check the area and remove all obstacles and objects that could be thrown. Plan to edge regularly to make it easier to keep a neat edge and to avoid having to make more than one pass. -
Page 14: Maintenance
ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed, see your ECHO Dealer for repairs. -
Page 15: Air Filter
OWER DGER PERATOR ANUAL AIR FILTER Level 1. Tools required: 25 or 50 mm (1 or 2 in.) Cleaning brush Parts required: 90008 REPOWER Air & Fuel Filter Kit. 1. Close choke (Cold Start Position [ ]). This prevents dirt from entering the carburetor throat when the air filter is removed. -
Page 16: Spark Plug
SPARK PLUG Level 2. Tools Required: T-Wrench, feeler gauge, soft metal brush Parts Required: REPOWER Tune-Up Kit P/N 90074 IMPORTANT Use only NGK BPM-8Y spark plug (BPMR-8Y in Canada) otherwise severe engine damage may occur. 1. Remove spark plug and check for fouling, worn and rounded center electrode. -
Page 17: Exhaust System
The cylinder exhaust port must be inspected and cleaned of excess carbon every 3 months or 90 hours of operation in order to maintain this engine within the emissions durability period. ECHO strongly recommends that you return your unit to your ECHO dealer for this important maintenance service. -
Page 18: Carburetor Adjustment
High Altitude Adjustment High altitude adjustment is not required for proper operation of this engine. Level 2. Tools required: Screwdriver, tachometer (Echo P/N 99051130017) Parts required: None. NOTE Do not adjust carburetor unless necessary. If you have difficulty, see your ECHO dealer. -
Page 19: Drive Shaft Lubrication
4. Use a tachometer to adjust idle speed to specifications found on page 23. DRIVE SHAFT LUBRICATION Level 1. Tools required: 8 mm Open End Wrench, Screwdriver, Clean rag Parts Required: ECHO LUBE 8 oz. (P/N 91014) or Lithium Base ® Grease. -
Page 20: Blade Replacement / Lubrication
BLADE REPLACEMENT LUBRICATION Level 1. Tools Required: T-wrench, Locking Tool, Needle Nose Pliers, 13 mm Open End Wrench Parts Required: ECHO LUBE 8 oz. (P/N 91014) or Lithium Base ® Grease, Blade P/N 69601552632, split pin P/N 90030020022 NOTE Grease gear case every 15 - 25 hours of use. Replace blade when it is worn shorter than 6 inches. -
Page 21: Troubleshooting
OWER DGER PERATOR ANUAL ROUBLESHOOTING t l i f l f f t ' n t n I t l i f t l i f t l i f t l i f / y t t r i WARNING DANGER Fuel vapors are extremely flammable and may cause fire and/or explosion. -
Page 22: Storage
TORAGE WARNING DANGER During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. Long Term Storage (over 30 days) Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage mainte- nance which includes the following: Store unit in a dry, dust free place, out of the reach of children. -
Page 23: Specifications
Spark Plug -------------------------------------------------- NGK BPM-8Y 0.65mm (0.026 in.) Fuel ---------------------------------------------------------- Mixed (Gasoline and Two-stroke Oil) Fuel/Oil Ratio ----------------------------------------------- 50:1 ECHO High Performance, two-stroke air cooled engine oil Gasoline ----------------------------------------------------- 89 Octane unleaded. DO NOT use fuel containing methyl alcohol, more than 10% ethyl alcohol or 15% MTBE. -
Page 24: Servicing Information
• Purchasing from your Echo Dealer. • Manuals are available by sending a written request stating the model number and serial number of your Echo unit, part number of the manual, your name and address, and mail to the address below.
