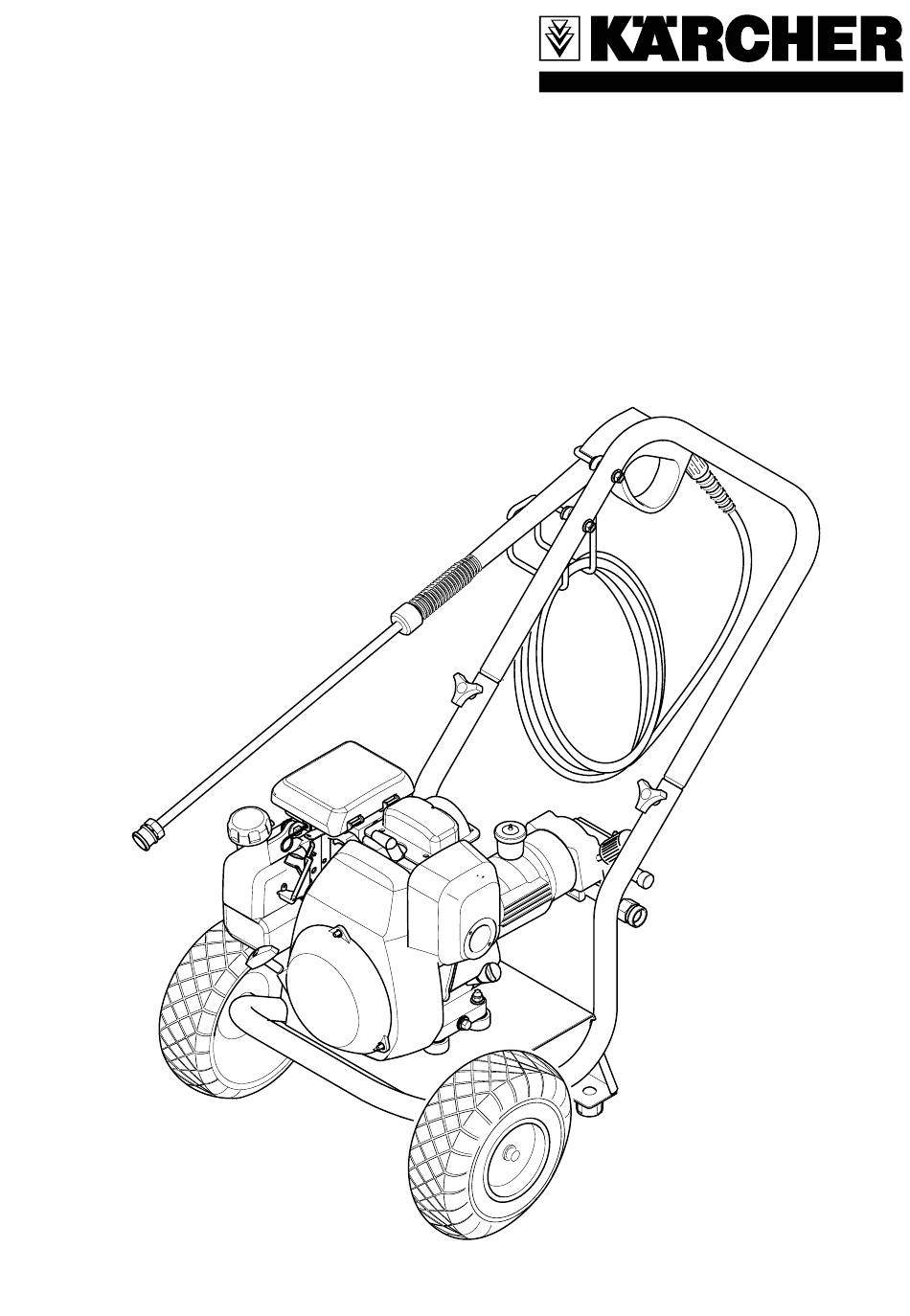

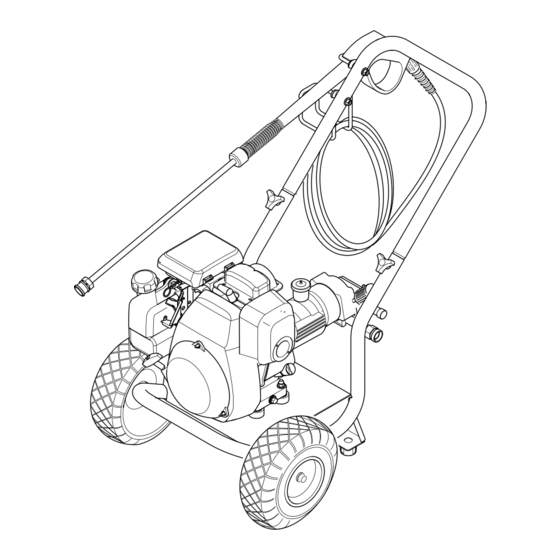

High Pressure Washer Operator Manual Overview ................ 3 Precautions ..............4 Assembly Instructions ..........5 Operating Instructions ..........6 Using the Accessories ..........7 Working with Detergents ..........8 Shut Down and Clean-Up ..........9 Taking a Break ............... 9 Winterizing and Long-Term Storage ......
IMPORTANT PRECAUTIONS – Read First! IMPORTANT SAFETY INSTRUCTIONS WARNING When using this product basic precautions should always be followed, including the following: WARNING WATER SUPPLY (Cold Water Only) - SAVE THESE INSTRUCTIONS -...
OPERATING INSTRUCTIONS Important! For more details see engine manual. Step 9 Step 1 MAINTENANCE INTERVALS FOR PUMP We recommend that the oil be changed after the first 2 hours of use, then once every 25 hours. Step 2 Recommended oil for pump Do not use leaded gasoline.
USING THE ACCESSORIES DANGER High pressure in nozzle area. Red nozzle = 0° Yellow nozzle = 15° Green nozzle = 25° White nozzle = 40° Black detergent nozzle = 65° WARNING...
WORKING WITH DETERGENTS Detergents can only be applied with the For best results see Cleaning Tips on black nozzle. pages 10 & 11 for specific information on how to clean different surfaces. Step 1 Always Use Kärcher Detergents for Best Results. Step 2 The following Kärcher detergents are available in USA / Mexico:...
SHUTTING DOWN Step 1 TAKING A BREAK ... FIVE MINUTES OR MORE Step 1 Step 2 For more details see engine manual. Step 2 For more details see engine manual. Step 3 Step 3 WINTERIZING AND LONG-TERM STORAGE Step 4 few seconds Step 5 Step 6...
CLEANING TIPS Deck Cleaning Cement Patios, Brick and Stone (with or without detergent) (with or without detergent) Canada: Deck + Fence Wash) Canada: Pressure Wash Degreaser Caution: Do not use Dirtblaster spray ® Cars, Boats & Motorcycles nozzle on wood surface as it may cause (with or without detergent) damage.
CLEANING TIPS – continued Barbecue Grills, Outdoor Power Recommendations Equipment & Gardening Tools (with or without detergent) Canada: Pressure Wash Degreaser OPTIONAL CLEANING ACCESSORIES Caution: Do not use Dirtblaster® Spray Nozzle on cloth, plastic or other sensitive surfaces as it may cause damage. Patio &...
TROUBLESHOOTING Please remove the spark plug cable to Output pressure varies high and low. prevent accidental ignition of the engine before making any repair. • Not enough inlet water supply. - Turn water on full force. Check garden Engine will not start. hose for kinks, leaks or blockage.
Page 13
TROUBLESHOOTING – continued Garden hose connection leaks. WARRANTY USA • Loose fittings. - Tighten fittings. • Missing/worn rubber washer. - Insert new washer. WARRANTY CDN Spray wand leaks. • Spray wand not properly attached. - Attach the wand to the spray gun. two years Turn the wand collar clockwise onto the gun threads until tight.
