Page 1: Operation Manual

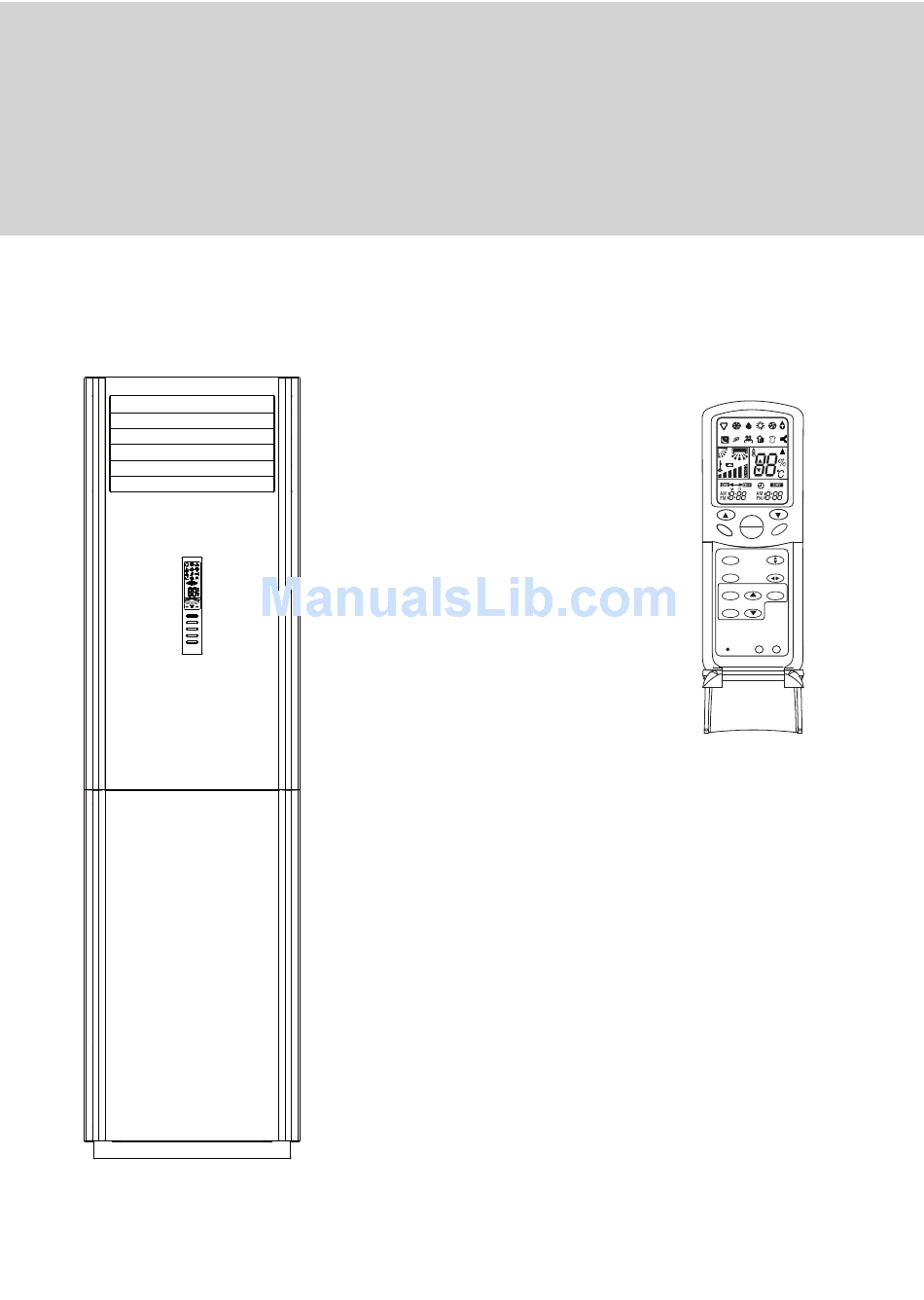

Cabinet unit Operation Manual POWER SOFT SWING DAMP TEMP No.0010573001 AP162ACMAA AU162AFMAA (HPU-16CB03) AP232ACMAA AU232AHMAA (HPU-23CB03) TEMP HEALTH MODE SLEEP SWING CLOCK TIMER RESET LIGHT LOCK... -
Page 2: Table Of Contents
Content Content Cautions Parts Operation Maintenance Trouble shooting When problems occur Energy saving Indoor & outdoor unit connection Tools necessary Installation procedures 5-16 17-18 24-29... -
Page 3: Cautions
Damaged air conditioners are not to be put into operation. In case of doubt, consult your supplier. Use of the air conditioner is to be carried out in strict compliance with the relative instructions set forth in the User's Guide. -
Page 4: Cautions
Always remember to unplug the air conditioner before opening inlet grill. Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. -
Page 5: Parts
Parts POWER SOFT SWING DAMP TEMP Outdoor unit Air inlet Drain hose Air outlet Connecting hose and Air inlet Indoor unit Outlet grill Operation panel Inlet grill [both side] Air filter [inside the unit] Remote-controller TEMP HEALTH MODE SLEEP SWING CLOCK TIMER LIGHT... -
Page 6: Parts
Parts Manual Operation Remote controlled operation TEMP HEALTH MODE SLEEP SWING CLOCK TIMER LIGHT LOCK RESET Power ON/OFF Used for unit start and stop. MODE Used to select AUTO run, COOL, DRY,HEAT and FAN operation. CLOCK Used to set correct time. Note: Auxiliary heat function is not available. -
Page 7: Operation
Operation Clock set When unit is started for the first time and after replacing batteries in remote controller, clock should be adjusted as follows: Press CLOCK button, "AM"or "PM" flashes. Press to set correct time. Each press will increase or decrease 1 min . If the button is kept depressed, time will change quickly. - Page 8 Operation Manual Remote-control unit TEMP HEALTH MODE SLEEP SWING CLOCK TIMER LIGHT LOCK RESET Note: During Auto run operation, temp. setting will not be shown in LCD display, unit will select heating, cooling or fan operationaccording to the room temp. SWING TEMP Press ON/OFF button...
- Page 9 Operation Manual Remote-control unit TEMP HEALTH MODE SLEEP SWING CLOCK TIMER LIGHT LOCK RESET SWING TEMP Press ON/OFF button Unit starts running. The previous status appears on the display (except. TIMER, SLEEP and SWING mode) Press MODE button. For each press, operation mode changes as follows: Manual AUTO COOL...
- Page 10 Operation Manual SWING TEMP Remote-control unit TEMP HEALTH MODE SLEEP SWING CLOCK TIMER LIGHT LOCK RESET Press ON/OFF button Unit starts running. The previous status appears on the display (except. TIMER, SLEEP and SWING mode) Press MODE button. For each press, operation mode changes as follows: Manual AUTO COOL...
-
Page 11: Manual Operation
Operation Manual Operation Remote-control unit TEMP HEALTH MODE SLEEP SWING CLOCK TIMER LIGHT LOCK RESET SWING TEMP Press ON/OFF button Unit starts running. The previous status appears on the display (except. TIMER, SLEEP and SWING mode) Press MODE button. For each press,operation mode changes as follows: Manual AUTO COOL... - Page 12 Operation Note: For cooling only type, this function is invalid. Manual SWING TEMP Remote-control unit TEMP HEALTH MODE SLEEP SWING CLOCK TIMER LIGHT LOCK RESET Press ON/OFF button Unit starts running. The previous status appears on the display (except. TIMER, SLEEP and SWING mode) Press MODE button.
-
Page 13: Air Flow Adjustment
Operation Swing louvers (Vertical louvers) Position 1 Position 2 TEMP Position 3 HEALTH Position 4 MODE SLEEP SWING Position 5 CLOCK TIMER Position 6 LIGHT LOCK RESET Adjust the louvers by hand to proper position. Put louvers at up position in cooling and down position in heating mode. Note: This will be helpful to keep an even room temp. -
Page 14: Remote Control Unit
Manual Remote control unit Before go to bed, you can press the Sleep button, the air conditioner will operate in comfortable sleep mode to make your sleep more comfortable. Usage of the Sleep function After starting, set the Run mode and press the Sleep button. -
Page 15: Timer Operation
Operation Manual Remote control unit TIMER operation Set Clock correctly before starting Timer operation (refer to page 5) You can let unit start or stop automatically at following times: Before you wake up in the morning, or get back from outside or after you fall asleep at night. TIMER ON/OFF (1) After unit start, select your desired operation mode. - Page 16 Operation Manual TEMP Remote controller operation (1) After unit start, select your desired operation mode. Operation mode will be displayed on LCD. (2) TIMER mode selection Press TIMER button to change TIMER mode. Every time the button is pressed, display changes as follows: Remote 12:00 controller...
- Page 17 Operation Fan Speed display TEMP TEMP Remote controller: HEALTH MODE Control panel: SLEEP SWING CLOCK TIMER The radial straight line displays following Swing Elliptoid Curve (From inside to outside 1 to 8 section one after another): LIGHT LOCK RESET AUTO: LOW FAN: MED FAN: HIGH FAN:...
- Page 18 Press once the ON/OFF button of the remote controller, can hear the suggestive OFF sound. The air conditioner will operate in the working mode displayed on the remote controller. Each time when cut off power and re-powered on, after the full-screen display for 5 seconds, it will display the room temperature.
-
Page 19: Maintenance
Clean it with warm and wet cloth or with neutral detergent, then wipe it dry with clean and soft cloth. If air conditioner is very dirty, clean it with cloth soaked in neutral detergent,then wipe off the detergent with clean water. -
Page 20: Maintenance
Maintenance After season maintenance Let the unit run in Fan mode for half a day in a fine weather to dry completely the unit inside. Turn off the unit and pull out power plug. There might be certain power consumption even if unit is stopped. Before season maintenance Check if there are obstacles at inlet and outlet of indoor and outdoor unit, whick will reduce unit efficiency. -
Page 21: Trouble Shooting
Trouble shooting Followings are not problems Unit will not restart after stop. Won't start? No outlet air or fan speed can't be changed in dry mode. In heating operation, water or steam are blown out of indoor unit. In heating operation, indoor fan won't stop even if unit is stopped. -
Page 22: When Problems Occur
Water comes out in cooling/dry operation. Operation is abnormal or sound is heard. If the fuse on PC board is broken please change it with the type of T.3.15A/250V. Air conditioner won't start. Is city power supply normal? Power failure? -
Page 23: Energy Saving
Energy saving Keep proper room temp. Too cold or too warm is no good to your health, and power consumption will be increased as well. Air filter should be periodically cleaned If air filter is clogged: It will cause poor cooling and heating efficiency, higher power consumption and even problem may occur. -
Page 24: Indoor & Outdoor Unit Connection
Indoor & outdoor unit connection POWER SOFT SWING DAMP TEMP AU162AFMAA pipe direction Left AU232AHMAA Rear Right Bottom... -
Page 25: Tools Necessary
Tools necessary Tools necessary 1. Screw driver 2. Hacksaw 3. 70mm dia. hole core drill 4. Spanner (dia. 17, 27mm) 5. Spanner (14, 17, 19, 27mm) 6. Pipe cutter 7. Flaring tool 8. Knife 9. Nipper 10. Gas leakage detector or soap water 11. -
Page 26: Installation Procedures
Place where is less affected by rain or direct sunlight and is sufficiently ventilated, or to install a shield. Place with enough space for smooth air flow. Do not install the air conditioner on the non-special metal bracket (e.g. theft guarding net). If outdoor unit is street installed, it cannot be lower than 2.5m The air outlet of outdoor unit shall be no less than 3m away from the neighbors. -
Page 27: Installation Of Indoor Unit
Installation procedures Installation of indoor unit Selection of installation place Place where it is easy to route drainage pipe and outdoor piping. Place away from heat source and with less direct sunlight. Place where cool and warm air could be delivered evenly to every corner of the room. Place near power supply socket. - Page 29 Note: When lengthen the connecting pipe, firstly use non-system Freon R22 to remove the air in the connecting pipe, then use the above air discharging method to remove the excessive refrigerant. The newly released air conditioner has been charged extra 80g R22 on the base of the previously specified refrigerant amount.
-
Page 30: Electric Wiring
Installation procedures Wiring method 1.The wiring method of orbicular terminal For the connection wire which end is orbicular terminal, its wiring method is as the right figure shown. Dismantle the screw and put it through the ring at the end of the connection wire, then connect it to the terminal block and tighten the screw. - Page 31 Installation procedures Other instruction 1.Power supply The air conditioner must use a special power circuit and special air switch. The air switch should be all-pole switch,and the distance between its two contacts should be no less 3mm. The users should provide special switch, grounding wire by themselves.
