RU-515/FS-536SD/FS-536
Applied Machines: PRO958/958/808/758
MFP: 95 ppm/80 ppm/75 ppm
Product Code: A796/A8KN/A795
Caution:
Lifting the machine in an awkward position or
transporting it in a poorly balanced position could
result in personal injury. When transporting the
machine, assign an adequate number of persons
to the job and ensure that each person can take a
good position of not being excessively loaded.
Mass
• FS-536SD: approx. 60 kg (132-1/4 lb)
• FS-536: approx. 36 kg (79-3/8 lb)

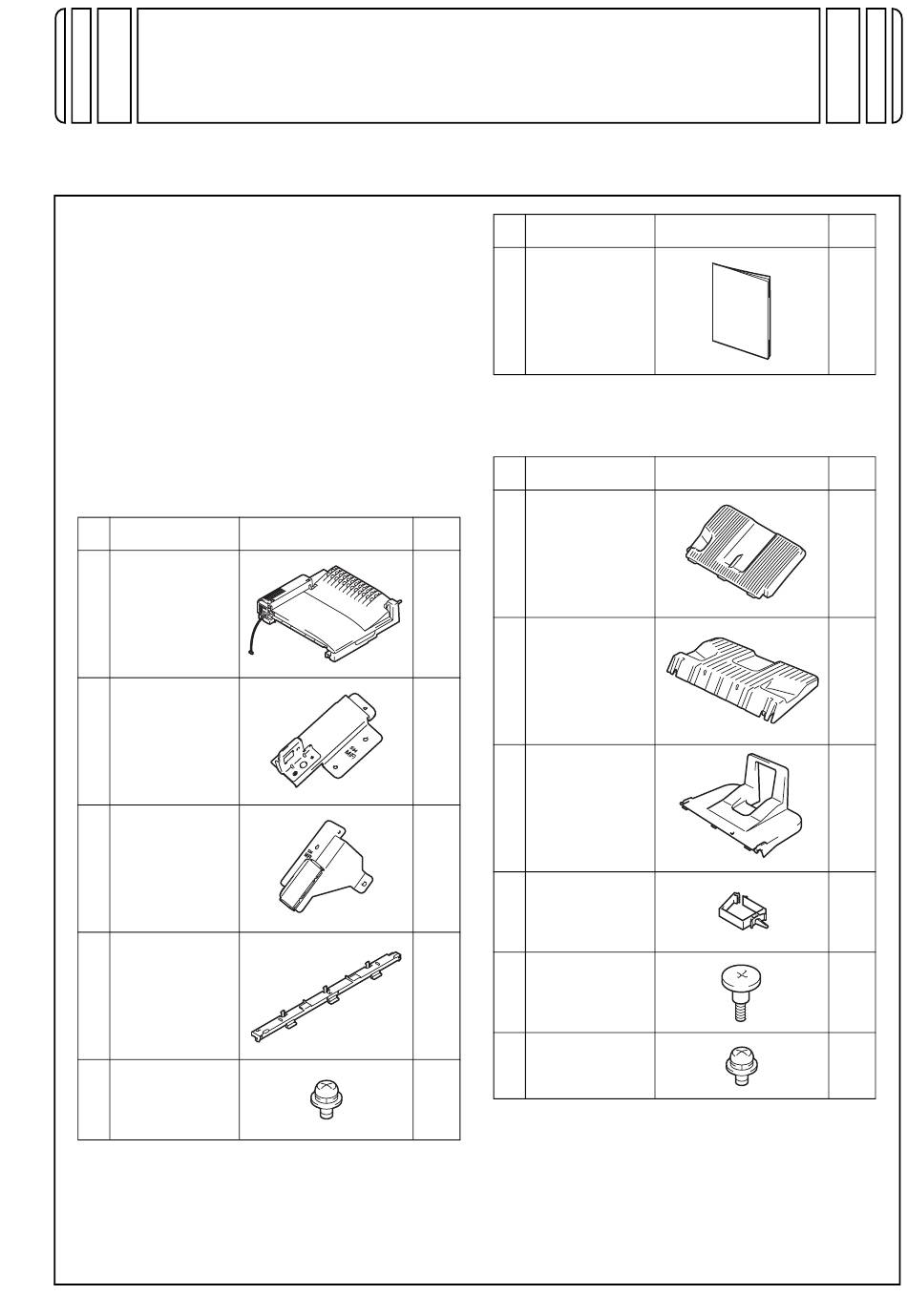

1. Accessory parts
<Relay unit RU-515>
No.
Name
1. Relay unit
2. Mounting
bracket A
3. Mounting
bracket B
4. Guide plate
*
5. Screw A
(4 x 8 mm)
INSTALLATION MANUAL
Shape
Q'ty
1
1
1
1
8
Relay Unit/Finisher
No.
Name
6. Installation
manual
*
This part is not used in this installation.
<Finisher FS-536SD/FS-536>
No.
Name
1. Exit tray (upper)
2. Exit tray (lower)
3. Folding exit
*1
tray
4. Wire saddle
*2
5. Mounting screw
6. Screw B
(4 x 8 mm)
*1
This part is supplied with the Finisher FS-536SD
only.
*2
This part is not used in this installation.
E-1
Shape
Q'ty
1
set
Shape
Q'ty
1
1
1
1
1
2
A87K-9581-00
Advertisement
Summary of Contents for Konica Minolta RU-515
- Page 1 • FS-536: approx. 36 kg (79-3/8 lb) This part is not used in this installation. <Finisher FS-536SD/FS-536> 1. Accessory parts Name Shape Q’ty <Relay unit RU-515> 1. Exit tray (upper) Name Shape Q’ty 1. Relay unit 2. Exit tray (lower) 2.
- Page 2 c) Lift the finisher off the cushions, holding it by the locations shown in the illustration. Caution: To prevent injuries use at least two people to lift Keep this bag away from babies and the finisher. children. Do not use in cribs, beds, carriages, or playpens.
-
Page 3: Installation Procedures
2. Installation procedures (5) Attach the supplied mounting bracket B (rear). (Three supplied screws A) (1) Turn OFF the power switch and unplug the power cord from the power outlet. (2) Remove the user’s guide holder from the main body. (6) Remove one knockout (front) from the lower left side of the main body with nippers. - Page 4 * The following procedures vary depending on (11) Remove the plate from the lower right side of the model of finisher. the finisher. (One screw) <When installing FS-536SD> Follow the installation procedures starting on page E-4. <When installing FS-536> Follow the installation procedures starting on page E-8.
- Page 5 (14) Slide the saddle unit out, remove the protective (18) Connect the relay unit connector to the connec- tape. tor located at the rear of the right side of the fin- isher. Protective tape Protective tape (19) Open the finisher front door and pull the lever. (15) Slide the saddle unit into the finisher.
- Page 6 (21) Verify items ➀ and ➁ below. a) Disconnect the connector, and remove the fin- ➀ The plate spring of the plate installed in step isher from the main body. (12) is contacted with the main body. ➁ When the lever that was pulled out in step (19) is pushed back, the finisher’s screw hole is within the range of lever’s mounting hole.
- Page 7 d) Adjust the height of the four casters. (24) Remove the connector cover from the back of the main body. (One screw) (25) Plug in the two connectors of the finisher. Fit the head of the cable tie into the mounting hole on the main body.
- Page 8 (28) Place the supplied folding exit tray on the fin- (10) Remove the protective tape from the staple isher. unit. (29) Go to “3. Adjustment procedures” on page E- (11) Remove the protective tape. (12) Remove the screw and remove the label from the finisher.
- Page 9 (14) Reattach the plate removed in step (13) in the (17) Connect the relay unit connector to the connec- orientation.(One screw removed in step (13)) tor located at the rear of the right side of the fin- isher. (15) Attach the supplied exit tray (lower) to the fin- isher.
- Page 10 (20) Verify items ➀ and ➁ below. Note: ➀ The plate spring of the plate installed in step If there are any problems after verification, con- (14) is contacted with the main body. duct the following steps a) to h). ➁...
- Page 11 d) Adjust the height of the four casters. (22) Close the front door of the finisher. (23) Remove the connector cover from the back of the main body. (One screw) (24) Plug in the two connectors of the finisher. Fit the head of the cable tie into the mounting hole on the main body.
-
Page 12: Adjustment Procedures
3. Adjustment procedures (2) Check the crease for deviation (Measure width A1 and A2). Note: Reference: A1 - A2 = 0 ± 1.0 mm Perform this adjustment only when the Finisher Crease FS-536SD is installed. If each mode are out of specifications, make the following adjustments. - Page 13 <Half-fold position adjustment> (5) Incline the guide plate assy shown in the illustra- tion and adjust the skew. (1) Unfold the paper that exits the machine and lay Note: the paper with the ridge facing up. Incline the guide plate assy forward or backward according to the deviation of the crease.
- Page 14 <Center staple position adjustment> (4) Display the Service Mode screen. (For details of how to display the Service Mode (1) Unfold the paper that exits the machine and lay screen, see the Service Manual.) the paper with the ridge facing up. (5) Touch “Finisher.”...
- Page 15 <Tri-fold position adjustment> [If the staple positions deviate as shown below] First fold position adjustment Using the key, set the numeric value. (1) Check the width of the first fold position “a.” Second fold First fold [If the staple positions deviate as shown below] Using the key, set the numeric value.
- Page 16 Second fold position adjustment (1) Display the Service Mode screen. (For details of how to display the Service Mode screen, see the Service Manual.) (2) Touch “Finisher.” (3) Touch “FS-FN adjustment.” (4) Touch “2nd Tri-Fold Adjustment.” (5) Check that “ALL” is displayed in reversed. (6) Enter a value with key.
