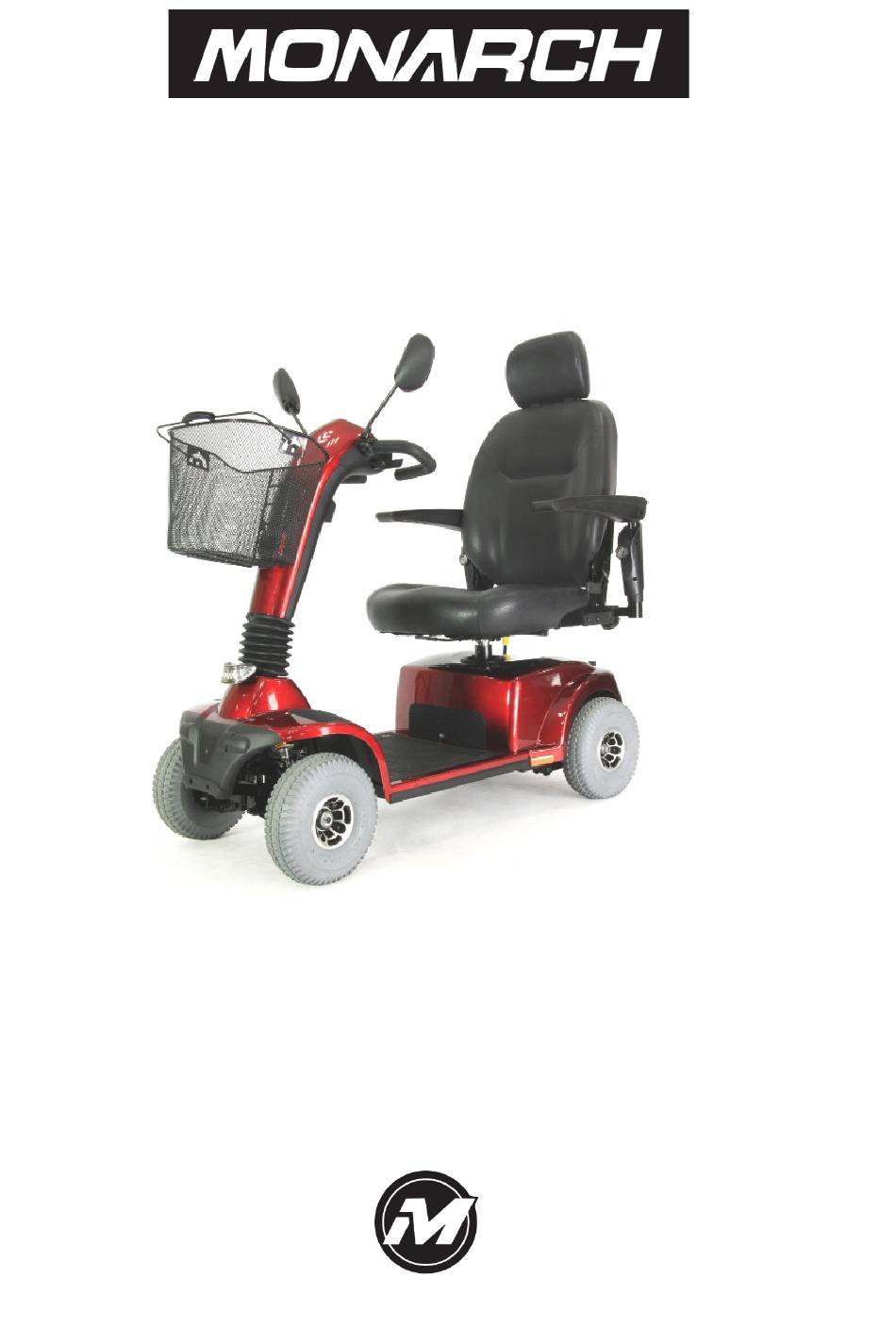

  • Page 1 ZENER Owner’s Manual...

  • Page 2: Table Of Contents

    Freewheel Mode 5. RIDING YOUR SCOOTER Getting on Basic Driving Ramps and Curbs 6. TRANSPORTING YOUR SCOOTER Disassembly Assembly Transporting 7. CARE AND MAINTENANCE Cleaning Batteries and Charging Troubleshooting Diagnostics SPECIFICATIONS WARRANTY Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 3 Owner’s Manual. The Monarch Zener is imported by Scooters Australia Pty Ltd. If you need any assistance, please contact the dealer from whom you purchased the scooter.

  • Page 4: Introduction

    Headlights (and tail lights): A standard feature, the headlights and taillights feature bright, long- lasting LED bulbs. The headlight is angle-adjustable. Suspension: Zener 4 has soft ride suspension to give you a smoother ride over bumpy surfaces. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 5: Safety

    2. SAFETY Your Monarch ZENER scooter is a battery-operated personal mobility vehicle. Please exercise caution and consideration when you are operating it. Driving your scooter carefully and thoughtfully will help ensure your personal safety and the safety of other people.
  • Page 6 NOTE: Please remember that while on your scooter, you are a motorised pedestrian. You must observe and obey all pedestrian rules and regulations for the locale in which you are riding. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 7 Never operate your scooter while you are under the influence of alcohol. • DAILY CHECKLIST Make sure each day your check your tyre pressure, battery charge, and seat swivel mechanism to ensure it is locked in position. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 8: Emi / Rfi

    • Report all incidents of unintended movement or brake failure to your authorised dealer. WARNING: Turn off your scooter as soon as it is safely possible if unintended or uncontrollable motion occurs or if unintended brake release occurs. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 9: Controls

    This self-centering lever system controls your scooter’s speed (up to the maximum speed set by the speed adjustment dial) and its forward and reverse direction. See Fig 3. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 10 4. Position the seat post at the desired height while aligning the holes in the seat post and the seat pedestal. 5. Reinstall and tighten the nut, bolt, and washer. The bolt must be installed from the back of Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 11: Freewheel Mode

    • Push the brake handle in the direction of “engage” on the label. See Fig 8. Pushing the scooter too quickly in freewheel will cause the motor to act as a generator causing the scooter to become difficult to push. Freewheel slowly. Figure 8. Figure 9. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 12 Always make certain that your scooter brake is engaged before inserting the key into the key switch. WARNING: Never sit on your scooter while it is being transported in a vehicle. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 13: Riding Your Scooter

    2. Set speed at the lowest setting. 3. Turn the tiller to the direction in which you wish to drive. Steering in Reverse Backing up your scooter requires attention to what you are doing: Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 14: Ramps And Curbs

    Your scooter performs admirably on grass, gravel, and hills, but you must follow the operational parameters presented in this manual. Refer to the “Safety” section. If you are unsure about any situation, avoid it. Common sense is your best protection. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 15: Transporting Your Scooter

    NOTE: The key must be removed from the key switch to fully lower the tiller. The tiller will only lock when it is in the center position. Figure 11. Figure 10. Figure 13. Figure 12. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 16 1. Install the batteries onto the scooter. 2. Reconnect the batteries. See Fig 13. 3. Wrap the hook and loop strap around the battery and the battery harness. See Fig. 17. Figure 15. Figure 17. Figure 16. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 17: Transporting

    WARNING: Never sit on your scooter when it is being transported. Always fasten down your scooter securely with an approved tie-down system while transporting your scooter. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 18: Care And Maintenance

    Your batteries are a sealed type and cannot leak (see Fig. 21). They are capable of about 300 discharge cycles. If you discharge them less than fully, they will achieve a higher number of cycles. They are maintenance free. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 19: Troubleshooting

    Remedy: Recharge your scooter’s batteries. See “Charger and Batteries” in this section of this manual. 1. If the problem continues, have your authorised dealer load test the batteries. 2. If the batteries are good, the charger may be the problem. Consult your authorised dealer. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.

  • Page 20: Diagnostics

    5 Flashes Indicates a brake problem. The freewheel lever may be in the disengaged position. See page 11. The brake or the brake wiring may be damaged. For safety reason, your scooter Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 21 Indicates a motor voltage problem. Your scooter will not operate until the problem is corrected. Remedy: Contact your authorised dealer. 9 Flashes Indicates other internal errors or faults. Your scooter will not operate until the problem is corrected. Remedy: Contact your authorised dealer. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 22 NOTE: As improvements are continually occurring to our products, we reserve the right to change the details of this manual, including the specifications, without prior notice. Please check with your local dealer for details. Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 23 Note: While charging batteries it is normal for the battery charger to heat up. Heat coming from the battery charger DOES NOT constitute a defect NOTE: Items not listed above are not covered for repair under this warranty Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 24 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Importer: Scooters Australia Pty Ltd, 4/355 South Gippsland Hwy, DANDENONG, Vic 3175. Ph 03 9799 6622 www.scootersaus.com.au email: headoffice@scootersaus.com.au Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
  • Page 25 Service 60 Months Service • Please phone your local dealer to arrange for your next service appointment • Please ensure that the details of each service are recorded above. Authorised Dealer Monarch Zener Owner’s Manual v2. © Scooters Australia 2017.
