Insignia NS-24D310CA21 Quick Setup Manual

QUICK SETUP GUIDE
19"/24" 720p
LED TV
NS-19D310NA21 / NS-24D310NA21 /
NS-24D310CA21
ACCESSORIES
Remote control and two AAA batteries
TV stands
19" 24"
M3 screws (14 mm length) (2 pcs.)
STOP
Before using your new product, please read
these instructions to prevent any damage.
Do not plug your power cord in until all
other devices have been connected.

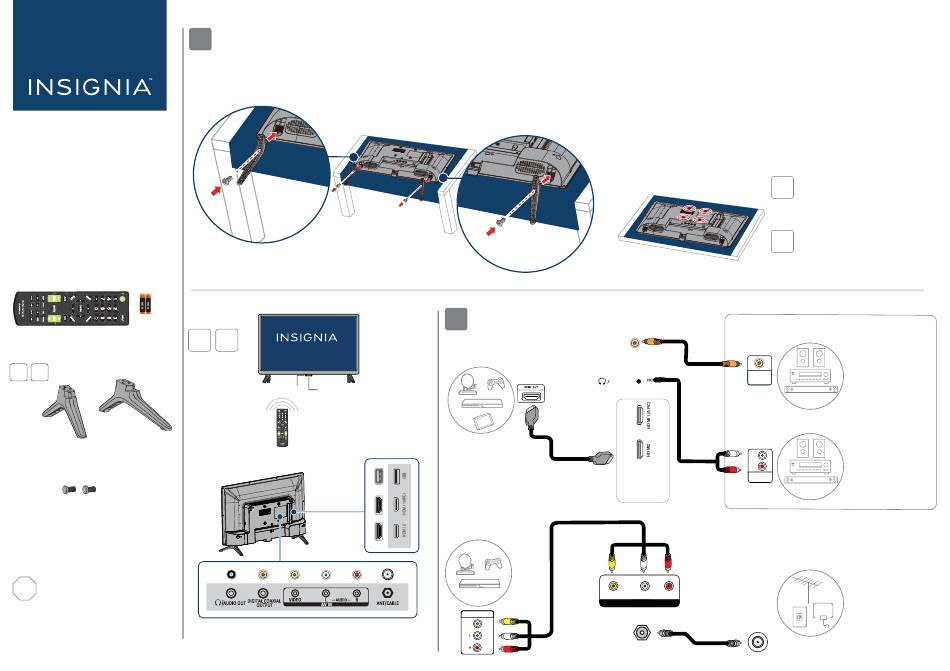

INSTALLING THE STANDS OR A WALL MOUNT
1
Place your TV face-down on a cushioned, clean surface.
STANDS
1 Align the TV stand screw holes with the holes on your TV's bottom.
2 Use a Phillips screwdriver and the two provided screws to secure the stands to your TV.
M3 screw
(14 mm length)
FEATURES
19" 24"
19" TV shown
Remote control Power/Input button
sensor
Press to turn your TV on or off manually.
When your TV is on, a short press changes
inputs and a long press turns off your TV.
Note: Images do not necessarily represent the exact design of your television.
19" TV shown
M3 screw (14 mm length)
MAKING CONNECTIONS
2
HDMI
(best video quality)
AV
(good video quality)
AUDIO/VIDEO OUT
WALL MOUNT
Before you mount your TV, make sure that:
• You remove the stands.
• The wall-mount bracket supports the weight of your TV.
See the instructions that came with your wall mount for more information
about how to correctly mount your TV.
WARNING: Your TV has four VESA mounting holes on the back. You must secure a wall-mount
bracket to all four holes. If you do not use all four holes, your TV may fall and cause property
damage or personal injury.
Note: Wall-mount screws are not included.
19"
24"
19" TV shown
DIGITAL AUDIO
DIGITAL COAXIAL
OUTPUT
DIGITAL
COAXIAL
AUDIO OUT INTPUT
ANALOG AUDIO
L
R
HDMI
AUDIO IN
OPTIONS
Coaxial
(good video quality)
VIDEO L - AUDIO - R
AV IN
ANT/CABLE
VESA Mounting Pattern
75 × 75 mm
Screws: type M4, 10 mm minimum
length depending on the wall-mount.
VESA Mounting Pattern
100 × 100 mm
Screws: type M4, 10 mm minimum
length depending on the wall-mount.
You can use the DIGITAL
COAXIAL OUTPUT jack or
the HDMI1 (ARC) jack.
Note: If you need to change
the digital audio format:
From your TV's Audio menu,
SOUNDBAR
select Audio Format/Audio
Delay, then press ENTER.
Set Audio Format to PCM.
SOUNDBAR
HD HD
Connect an antenna to access
live over-the-air TV.
