Summary of Contents for Currys CCRAN10

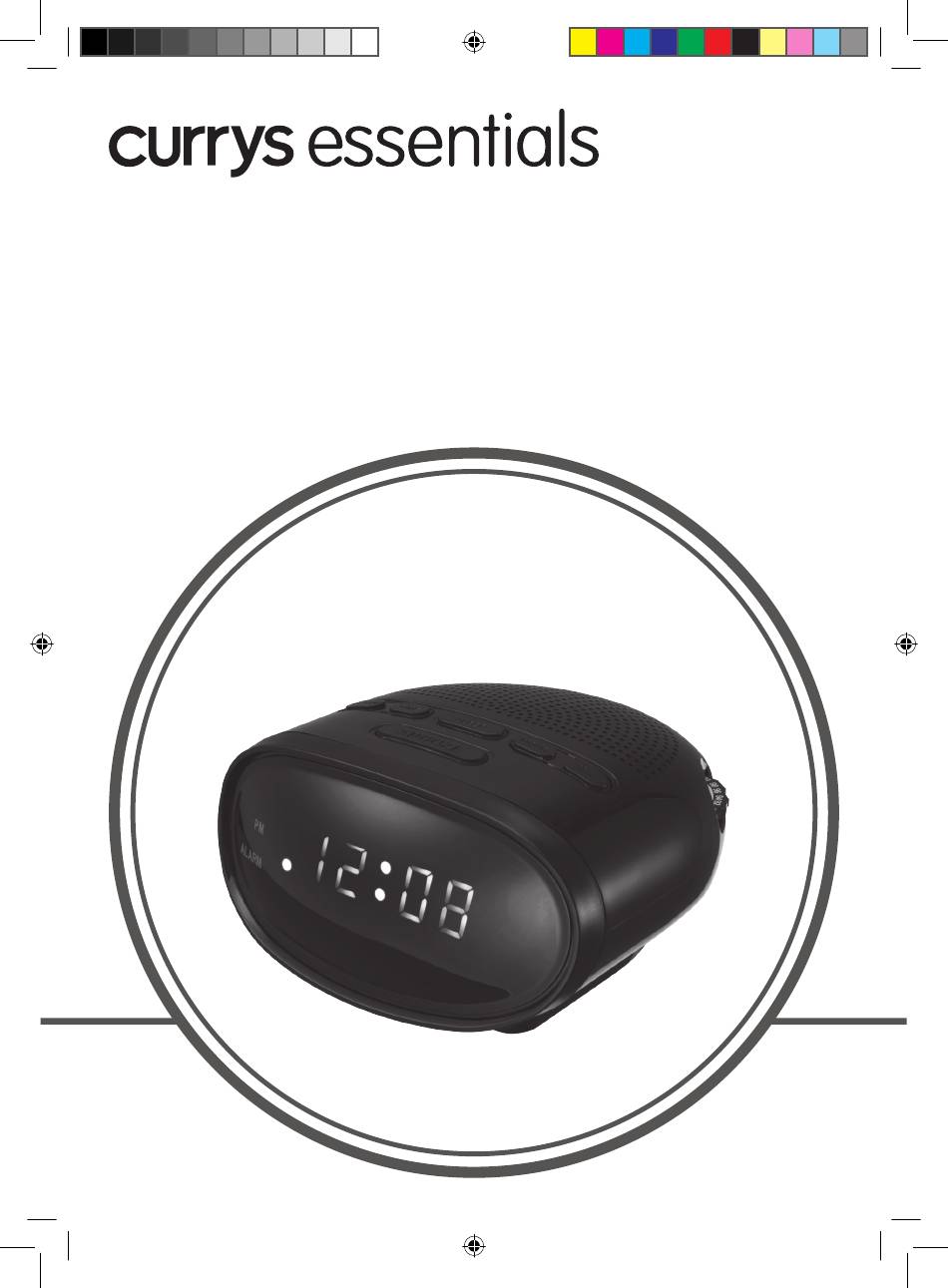

- Page 1 C L OC K RA DIO IN S T RU C T I ON M ANUA L C C R A N 1 0 CCRAN10_IB_final110512.indd 1 12/05/2011 11:13 AM...
- Page 2 CCRAN10_IB_final110512.indd 2 12/05/2011 11:13 AM...
-
Page 3: Table Of Contents
Content Unpacking ..........................4 Product Overview ........................5 Top View ................................5 Rear View ................................5 LED Display ................................6 Power Source ..........................6 Mains Power ................................. 6 Memory Backup ..............................7 General Operation ........................8 Powering ON/OFF ............................. 8 Adjusting Volume .............................. 8 Setting the Clock ............................... -
Page 4: Unpacking
Thank you for purchasing your new Currys Essentials Clock Radio. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 5: Product Overview
Product Overview Top View SLEEP Button Time Display TIME Button HOUR Button ALARM Button MIN Button SNOOZE Button Rear View TUNING Control 11. VOLUME Control BAND(AM/FM) 12. FM Aerial Selector 13. Battery Compartment 10. FUNCTION Selector 14. Mains Adapter (OFF / BUZZER ALARM / RADIO ALARM / ON) CCRAN10_IB_final110512.indd 5... -
Page 6: Led Display
LED Display 15. PM Indicator 17. HOUR Digits 16. Alarm Indicator 18. MINUTE Digits Power Source Mains Power Check that the voltage marked on the rating label matches your mains voltage. Connect the mains adapter to the mains socket. The unit is now connected and ready for use. -
Page 7: Memory Backup
Memory Backup This unit incorporates a battery back up circuit that will keep the clock running and alarm time in memory in the event of a temporary power interruption. Insert a 9V battery (not included) into the battery compartment located at the bottom of the unit. Press and hold the end of the battery with your thumbs ), then push the battery in the direction as shown until it fits in correctly (... -
Page 8: General Operation
General Operation Powering ON/OFF • Switch the FUNCTION selector to the “ON” position to switch on the unit. • Switch the FUNCTION selector to the “OFF” position to switch off the unit. • Disconnect the mains adapter from the mains socket if you want to switch the unit off completely. -
Page 9: Snooze Function
For Radio Alarm First tune in to a desired station (see Radio Reception on the next page) and then adjust the volume. Set the FUNCTION button to RADIO ALARM. For Buzzer Alarm Set the FUNCTION button to BUZZER ALARM. The alarm indicator will illuminate. The unit will wake up to “Radio” or “Buzzer” when the alarm timer reaches the preset time and then shut off automatically after one hour and 59 minutes. -
Page 10: Radio Reception
Radio Reception Adjust the BAND selector to a desired mode (AM / FM). Turn the TUNING control to tune to a station. For Better Reception FM: Fully unwind the FM aerial. Extend the FM aerial and place it in the position that sounds best. -
Page 11: Hints And Tips
• Is the current time correctly set on the time display? Check the PM indicator. • Is the alarm time correctly set? Specification Model CCRAN10 Power output 100 mW RMS Power source 230V AC ~ 50Hz 4W For the power backup function: 9V battery Features and specifications are subject to change without prior notice. -
Page 12: Safety Warnings
Safety Warnings • Read all the instructions carefully before Moisture using the unit and keep them for future • To reduce the risk of fire, electric shock or reference. product damage, do not expose this unit • Retain the manual. If you pass the unit or the mains adapter to rain, moisture, onto a third party make sure to include this dripping or splashing. - Page 13 Batteries Service • Batteries used in the unit are easily • To reduce the risk of electric shock, do not swallowed by young children and this is remove screws. The unit does not contain dangerous. any user-serviceable parts. Please leave all maintenance work to qualified personnel.
