Change for life
Owner's Manual
Original Instructions

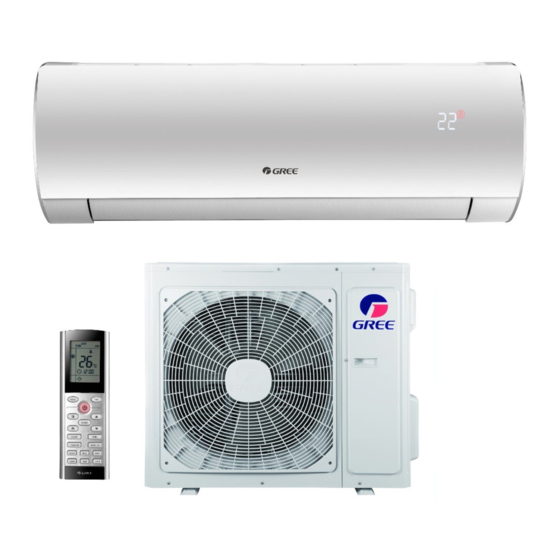

Split Air Conditioner
CONTENTS
......................................................................................
..................................................................................................
.........................................................................................
.......................................................................................
Thank you for choosing our product.
Please read this Owner's Manual carefully before operation and
retain it for future reference.
If you have lost the Owner's Manual, please contact the local agent
or visit www.gree.com or send an email to global@cn.gree.com for
the electronic version.
Notice：
Actual product may be different from graphics,
please refer to actual products.
............................................................................
..................................................................
01
05
06
08
10
11
Advertisement
Related Manuals for Gree GWH07QB-K6DNB2E/O
Summary of Contents for Gree GWH07QB-K6DNB2E/O
-
Page 1: Table Of Contents
Please read this Owner’s Manual carefully before operation and retain it for future reference. If you have lost the Owner's Manual, please contact the local agent or visit www.gree.com or send an email to global@cn.gree.com for the electronic version. Notice：... - Page 2 GWH07QB-K6DNB2E/O GWH24QE-K6DNA1C/O GWC09ACC-K6DNA1C/O GWH24QE-K6DNC2C/O GWH09ACC-K6DNA1A/O GWH24QE-K6DNA1E/O GWH09ACC-K6DNA1X/O GWH24QE-K6DNA5X/O GWH09ACC-S6DBA1A/O GWH24YE-K6DNA1A/O GWH09QB-K6DNA1C/O GWH24YE-S6DBA2A/O GWH09QB-K6DNA1E/O GWH24YE-K6DNA1Z/O GWH09QB-K6DNB8I/O GWH09QB-K6DNB4Y/O GWH09QB-K6DNA5X/O GWH09UB-K6DNA4A/O GWH09YC-K6DNA1A/O GWH09YC-K6DNA1Z/O GWH09YD-S6DBA2A/O GWC12ACC-K6DNA1D/O GWH12ACC-K6DNA1X/O GWH12ACC-S6DBA1A/O GWH12QB-K6DNB4Y/O GWH12QC-K6DNA1C/O GWH12QC-K6DNA1D/O GWH12QC-K6DNA5X/O GWH12YC-K6DNA1A/O GWH12YC-K6DNA1Z/O GWH12YD-S6DBA2A/O GWH12UB-K6DNA4A/O GWC18ACD-K6DNA1D/O GWH18ACE-S6DBA1A/O GWH18QD-K6DNA1C/O GWH18QD-K6DNC2C/O GWH18QD-K6DNA1D/O GWH18QD-K6DNA5X/O GWH18YD-K6DNA1A/O GWH18YD-K6DNA1Z/O...
- Page 3 Explanation of Symbols WARNING This symbol indicates the possibility of death or serious injury. This symbol indicates the possibility of injury or damage to CAUTION property. Indicates important but not hazard-related information, used NOTICE to indicate risk of property damage. Exception Clauses Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons.
- Page 4 The refrigerant This appliance is not intended for use by persons Before install the Appliance filled (including children) with reduced physical, sensory appliance, read with flammable t i l i the installation gas R32. knowledge, unless they have been given superv- manual first.
- Page 5 Safety operation of flammable refrigerant Installation notes Check whether there is fire source or potential fire source in the maintenance area. The air conditioner must be installed in a room - The naked flame is prohibited in the mainte- that is larger than the minimum room area. The nance area;...
-
Page 6: Safety Precautions
Safety precautions WARNING Installation The grounding resistance Installation or maintenance should comply with nation- must be performed by qu- al electric safety regula- alified professionals. tions. The appliance shall be in- Air Conditioner should be stalled in accordance with properly grounded. Inco- national wiring regulations. - Page 7 Safety precautions CAUTION Installation Instructions for installation For the air conditioner and use of this product are with- out plug, an circuit break must be installed in provided by the manufac- turer. the line. Select a location which is The yellow-green wire in out of reach for children air conditioner is ground- and far away from...
- Page 8 Safety precautions WARNING Operation and Maintenance This appliance can be us- socket. Otherwise, it may ed by children aged from cause fire hazard. 8 years and above and per- Do disconnect power sup- sons with reduced physi- ply when cleaning air con- cal, sensory or mental ca- ditioner.
- Page 9 Safety precautions CAUTION Operation and Maintenance When below phenomenon Do not spill water on the re- occurs, please turn off air mote controller, otherwise conditioner and disconnect the remote controller may power immediately, and be broken. then contact the dealer or Do not use fire or hair dryer qualified professionals for to dry the filter to avoid de-...
-
Page 10: Parts Name
Parts name Outdoor Unit air inlet air outlet Notice ● Actual product may be different from above graphics, please refer to actual product. -
Page 11: Installation Notice
Installation notice WARNING sure that the unit is running in cooling mode. Then, fully close the valve at high pressure side (liquid valve).About 30-40 seconds later, fully close the valve at low pressure side (gas valve), immediately stop the unit and disconnect power. - Page 12 Selection of installation location Requirements for electric connection Basic requirement 8.The temperature of refrigerant circuit will be hi- Installing the unit in the following places may cau- gh, please keep the interconnection cable away se malfunction. If it is unavoidable, please consu- from the copper tube.
-
Page 13: Installation Of Outdoor Unit
Installation of outdoor unit Step 1: fix the support of outdoor unit (select it according to the actual inst- drain vent allation situation) chassis Select installation location according to outdoor drain joint Drain hose the house structure. Fix the support of outdoor unit on the sele- cted location with expansion screws. - Page 14 Step 6: Tighten the union nu t with torque wrench neaten the pipes by referring to the sheet below. The pipes should be placed along the wall, bent Tightening torque(N m) Hex nut diameter reasonably and hidden possibly. Min. semidiam- 1/4'' 15~20 eter of bending the pipe is 10cm.
-
Page 15: Test And Operation
Test and operation Check after installation ● Check according to the following requirement Use vacuum pump after finishing installation. Remove the valve caps on the liquid valve and Items to be checked Possible malfunction gas valve and the nut of refrigerant charging vent. 2. -
Page 16: Configuration Of Connection Pipe
Configuration of connection pipe Additional refrigerant charging amount for R32 Standard length of connection pipe: 5m, 7.5m, Min. length of connection pipe. For the unit with standard connection pipe of 5m, there is no limitation for the min length of con- nection pipe. - Page 17 smooth surface B: Remove the burrs ● Remove the burrs with shaper and prevent the burrs from getting into the pipe. improper expanding pipe shaper leaning damaged crack uneven surface thickness the length is equal downwards Working temperature range C: Put on suitable insulating pipe Outdoor side Indoor side DB/WB(°C)
- Page 18 Working temperature range Outdoor side Indoor side DB/WB(°C) DB/WB(°C) Maximum 32/23 48/30 cooling For models: GWC09ACC-K6DNA1C、GWC12ACC-K6DNA1D、 GWC18ACD-K6DNA1D Notice ● The operating temperature range (outdoor tempera- ture) for cooling only unit is 18°C~48°C. For model: GWC24ACE-K6DNA1A Notice ● The operating temperature range (outdoor tempera- ture) for cooling only unit is -15°C~48°C.
- Page 19 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 E-mail: global@cn.gree.com Web: www.gree.com 66160000581...
