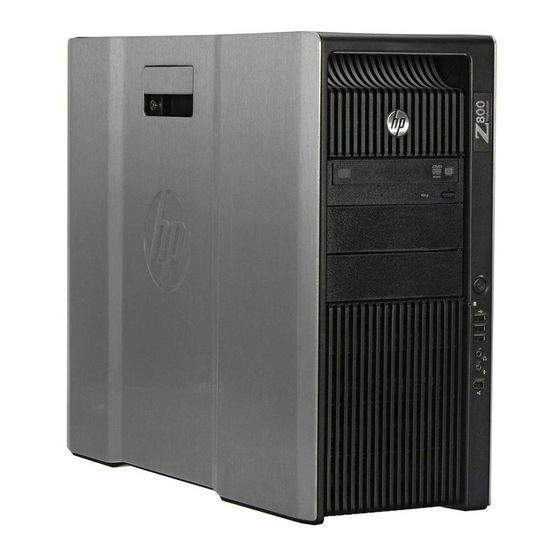

HP Workstation Z800 Supplementary Manual

1110w power supply
Hide thumbs Also See for Workstation Z800:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, Function Manual

Site preparation guide

800 1110W power supply

Advertisement

loading

Related Manuals for HP Workstation Z800

Summary of Contents for HP Workstation Z800

  • Page 1: Site Preparation Guide

    Site preparation guide 800 1110W power supply...
  • Page 2 The warranties for HP products are set forth in the express limited warranty statements accompanying such products.

  • Page 3: Table Of Contents

    Table of contents Power consumption and cooling Introduction ... 1 Power consumption and cooling considerations ... 1 Power consumption limitations ... 2 Input current calculation ... 3 Power dissipation ... 4 Cooling considerations ... 5 ENWW...
  • Page 4 ENWW...

  • Page 5: Power Consumption And Cooling

    * The 80PLUS specification states that all SILVER power supplies are at least 85%/89%/85% efficient at 20%, 50%, and 100% of rated output, respectively. Power consumption and cooling considerations An HP workstation with a 1110W 80 PLUS SILVER power supply might require more power than the typical office environment can supply. Consider the following issues: ●...

  • Page 6: Power Consumption Limitations

    890 watts and 1110 watts, respectively. See dissipation on page 4 HP recommends an online continuous UPS that provides a layer of insulation from quality problems. This type of supply also allows control of output voltage and frequency regardless of input voltage and frequency.

  • Page 7: Input Current Calculation

    ● To reduce the risk of overload: ◦ Do not exceed the rated load of any single power distribution unit (PDU). ◦ Do not load a single National Electrical Manufacturers Association (NEMA) 5-15 receptacle with more than 15 amps. ◦ Do not load a single International Electrotechnical Commission (IEC) 320-1/C13 receptacle with more than 10 amps.

  • Page 8: Power Dissipation

    4-or 8- GB DDR3-1333 MHz Registered DIMMs. Estimation does not extend to 16 GB DIMMs. Five SAS 15K HDDs. For maximum power consumed per graphics card, see product QuickSpecs at http://www.hp.com/go/productbulletin/. Maximum graphics power supported with an 850W power supply is one 175W graphics card, or two 100W graphics cards.

  • Page 9: Cooling Considerations

    Cooling considerations To ensure proper ventilation and cooling for your workstation, observe the following guidelines. ● Keep your workstation in an area where the airflow is not obstructed. ● Keep the workstation off from surfaces where dust can gather. ● Remove dust on the front panel bottom (vent area) and the rear fans with a small vacuum, compressed air, or dust rag.
