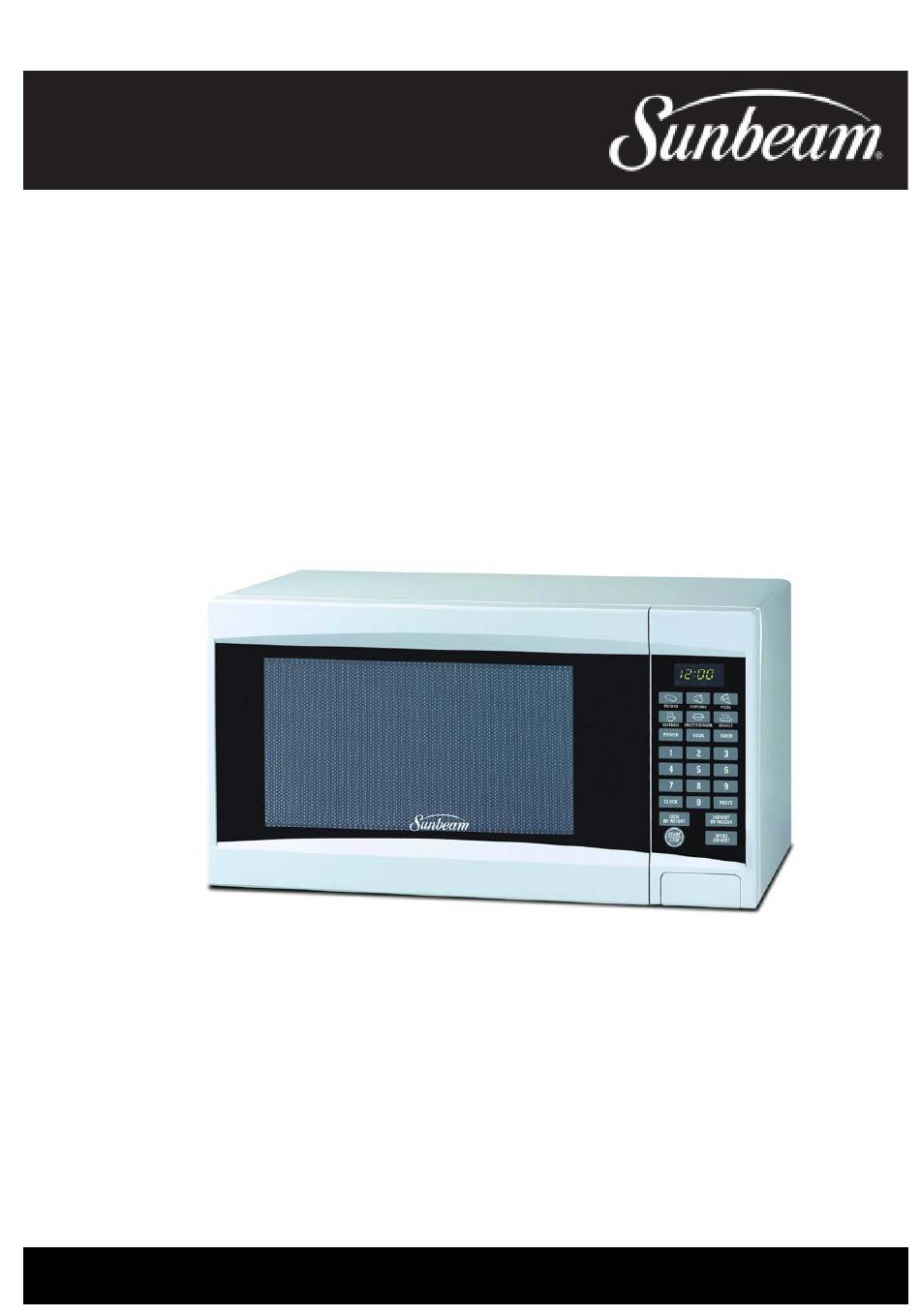

- Page 1 User’s Manual 0.7 Cu. Ft. Countertop Microwave Model: SGD2701 TRC071214 TABLE OF CONTENTS...
-
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY INSTALLATION GUIDE GROUNDING INSTRUCTIONS PRODUCT DIAGRAM CONTROL PANEL OPERATION INSTRUCTIONS QUICK COOK SETTINGS COOKING UTENSILS GUIDE COOKING TECHNIQUES CLEANING AND CARE BEFORE CALLING FOR SERVICE SPECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS... -
Page 3: Important Safety Instructions
WARNING - to reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy, basic safety precautions should be followed, including the following: 1. Read all instructions before using the microwave. 2. This microwave must be grounded. Connect only to properly grounded outlets. See page 4 for grounding instructions. -
Page 4: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
17. Use only thermometers specifically designed for microwave oven. 18. Do not operate any heating or cooking under this microwave. 19. Be certain the glass tray and roller rings are in place when using the microwave. 20. Read and follow the specific “Precautions to Avoid Possible Exposure to Excessive Microwave Energy” section found on page 4. -
Page 5: Installation Guide
1. Do not attempt to operate this microwave with the door open. Door open operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the door interlocks. 2. Do not place any objects between the microwave front face and the door, or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 6: Product Diagram
ELECTRICAL REQUIREMENTS The electrical requirements for this microwave are a 120V, 60Hz, AC only, 15 amp. It is recommended that a separate circuit serving only the microwave be provided. The microwave is equipped with a 3-prong grounding plug. It must be plugged into a wall outlet properly installed and grounded. -
Page 7: Control Panel
1. Door Lock System 2. Oven Window 3. Roller Ring 4. Door release Button 5. Control Panel 6. Wave Guide (Please do not remove the mica plate covering the wave guide) 7. Glass Tray CONTROL PANEL... -
Page 8: Operation Instructions
DISPLAY Cooking time, power, indicators and present time are displayed. QUICK COOK BUTTONS Instant settings to cook popular foods. POWER Use to set power levels other than high. COOK Use for multi-stage cooking. It enables cooking at multiple power and time settings automatically. - Page 9 SETTING THE CLOCK Touch CLOCK pad. Use the number pads to enter the correct time. Your must touch at least three numbers to set the clock (one for hour and two for minutes). Touch CLOCK pad again. NOTE: ·This is a 12 hour clock. When the oven is first plugged in or when power resumes after a power interruption, the display will show ENTER CLOCK TIME.
- Page 10 B. Two-stage Cooking Some recipes require different stages of cooking at different temperatures. SET STAGE 1: Follow steps 1 and 2 in “One-stage Cooking”. DO NOT TOUCH START/STOP. SET STAGE 2: Touch COOK then enter proper cooking time and (lower) power level. (Most 2-stage recipes use lower power for second stage.) Touch START/STOP.
- Page 11 · Ounce weights less than 10 must be preceded by a 0. If label gives weight in pounds only, change the fraction of a pound to ounces using the chart found below. Converting Fractions of a Pound to Ounces Fractions of a pound Ounces Less than .03 .03 to .09...
-
Page 12: Quick Cook Settings
SETTING CHILD LOCK The door lock prevents unsupervised operation by children. To set, press and hold RESET for 3 seconds. LOCK is indicated on the display. To cancel, press and hold RESET for 3 seconds. LOCK indication disappears. QUICK COOK SETTINGS The QUICK COOK settings allow you to cook or reheat food automatically without entering power level or time. -
Page 13: Cooking Utensils Guide
Reheating a slice of pizza: Touch PIZZA once. Touch START/STOP. Heating a whole pizza: Touch PIZZA twice. Touch START/STOP. BEVERAGE For small cups (5-7 oz./cup): Touch BEVERAGE once. Enter number of cups by touching number pads from 1 to 4. Touch START/STOP. -
Page 14: Cooking Techniques
This section lists which utensils can be used in this microwave, which have limited use for short periods, and which should not be used in this microwave. RECOMMENDED Microwave browning dish -- Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with your browning dish. -
Page 15: Cleaning And Care
Your microwave makes cooking easier than conventional cooking, provided you keep these considerations in mind: STIRRING Stir foods such as casseroles and vegetables while cooking to distribute heat evenly. Food at the outside of the dish absorbs more energy and heats quicker, so stir from the outside to the center. ... -
Page 16: Before Calling For Service
1. Turn off the microwave and unplug the power cord from the wall when cleaning. 2. Keep the inside of the microwave clean. When food splatters or spilled liquids adhere to microwave walls, wipe with a damp cloth. Mild detergents may be used if the microwave gets very dirty. Avoid using spray or other harsh cleaners. -
Page 17: Specifications
Before asking for service, please check each item below: Check to ensure the microwave is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance. - Page 18 © 2014 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. ® Sunbeam logo is a registered trademark of Sunbeam Products, Inc. used under license. Distributed by Guangdong Galanz Microwave Oven and Electrical Appliances Manufacturing Co., Ltd., Shunde, Foshan, Guangdong, 528305, China.
