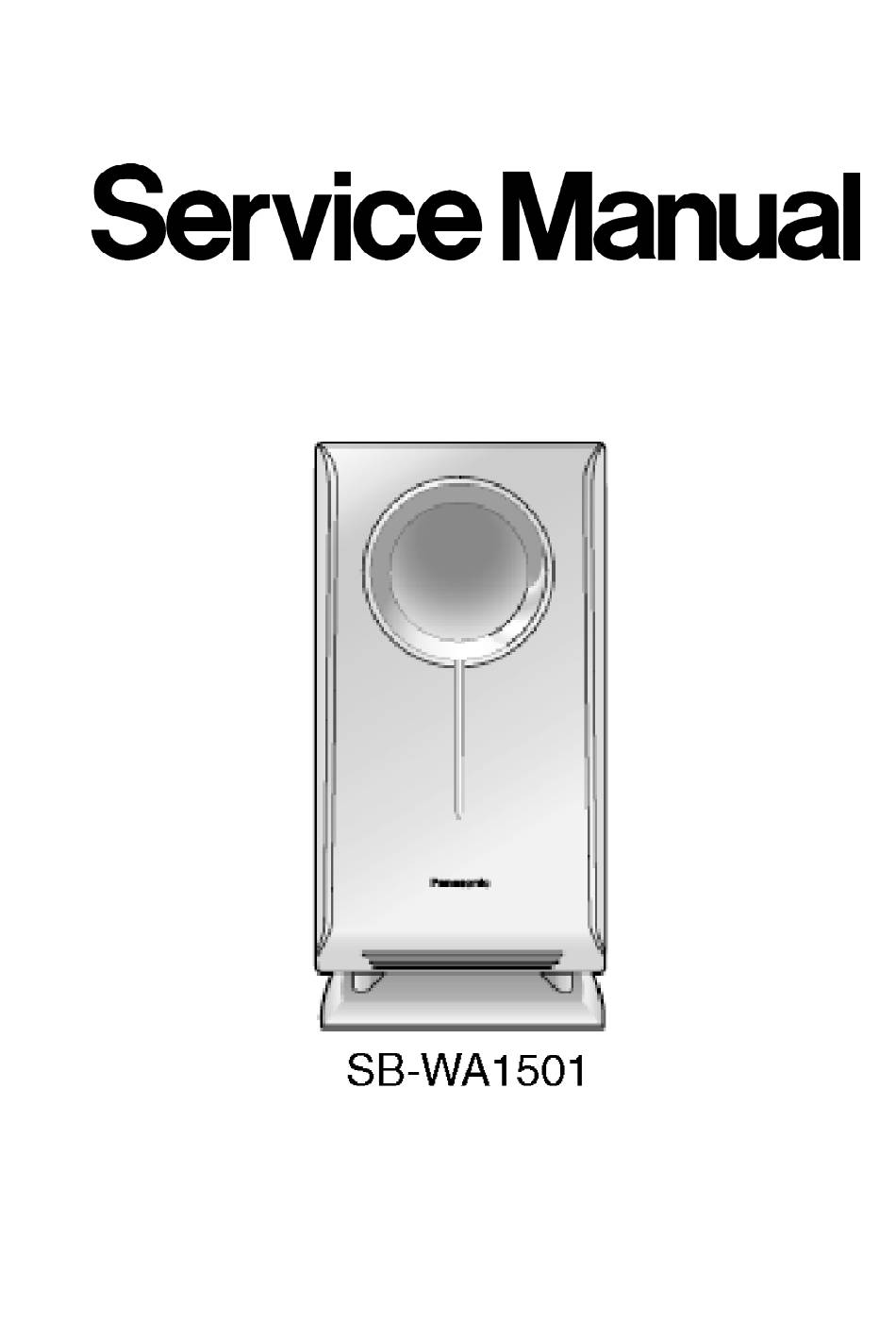

- Page 1 ORDER NO. MD0406274C2 Active Subwoofer System SB-WA1501EB / SB-WA1501EG Colour (S)... Silver Type SPECIFICATIONS Specification...
-
Page 2: Safety Precautions
Music Center: SA-HT1500 (EG) System : SC-HT1500 (EG) Satellite Speakers: SB-HT1501 (E) Active Subwoofer: SB-WA1501 (EG) 2004 Panasonic AVC Networks Singapore Pte. Ltd. (RCB Registration Number: 197701580H) All rights reserved. Unauthorized copying and distribution is a violation of law. 1. Safety Precautions 1.1. - Page 3 insulation barriers, insulation papers shields are properly installed. 3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards. 1.1.1. LEAKAGE CURRENT COLD CHECK 1. Unplug the AC cord and connect a jumper between the two prongs on the plug.
-
Page 4: Handling The Lead-Free Solder
leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer. -
Page 5: Connection Of The Speaker Cables
3. Turn on the power once again after one minute. Note: When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again. 5. Connection of the Speaker Cables - Be sure to connect speaker cables before connecting the AC mains lead. -
Page 6: Disassembly Flow Chart
components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. Special reassembly procedures are described only when required. 3. Select items from the following index when checks or replacement are required. 6.1. Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. - Page 7 6.2.1. Removal of the Subwoofer and Power Amp Unit Step 1: Remove all the screws. Step 2: Remove the stand base. Step 3: Remove all the screws from the bottom of the speaker unit. Step 4: Remove all the screws from the rear panel’s speaker unit guide.
- Page 8 Step 5: Remove the screws from the subwoofer. Step 6: Remove the 2 screws from the Power Amp unit. Step 7: Pull out the Power Amp unit as arrow shown. (Note: Be careful of the attach wire at CN506). Step 8: Disconnect the connector CN506.
- Page 9 6.2.2. Checking for the major PCBs - Follow Steps 1 to 8 described in Item 8.2.1. Steps 9 & 10: Remove 7 screws from the rear panel. Step 11: Release the connector CN507 and remove the rear panel. Step 12: Remove the screws.
- Page 10 Steps 13 & 14: Remove the screws. Step 15: Place the Power P.C.B and AC Inlet P.C.B. as shown for checking. - Checking for the Transformer P.C.B. Step 16: Remove the screws.
- Page 11 Step 17: Place the P.C.B.s as shown for checking. 6.3. Main Component Replacement Procedures 6.3.1. Replacement of the Power IC and Transistor - Follow Steps 1 to 8 described in Item 8.2.1. - Follow Steps 9 to 17 described in Item 8.2.2. Step 1: Desolder the Power IC terminal and Transistor terminal.
- Page 12 Step 2: Remove the screws from the IC501. Step 3: Remove the screw from the transistor. Step 4: Replacement of the Power IC and Transistor.
- Page 13 6.4. Assembly of the Power Amp Unit Step 1: Open the magnet case and place the speaker cable as shown. Step 2: Close the magnet case. Step 3: Use the himelon for wrapping.
- Page 14 Step 4: Use binding wire to fix the speaker cable and motor cable. The position should be higher than Cement (White) register. Step 5: Lower the magnet to the binding wire and use another binding wire to fix the magnet with motor cable and speaker cable.
-
Page 15: Connection Of The Speaker Wiring
7. Connection of the Speaker Wiring 8. Block Diagram 9. Schematic Diagram (All schematic diagrams may be modified at any time with the development of the new technology) Note: - The voltage value and waveforms are the reference voltage of this unit measured by DC electronic voltmeter (high impedance) and oscilloscope on the basis of chassis. - Page 16 - Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardent (resistors), high-quality sound (capacitors), low noise (resistors), etc are used. When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list.
- Page 17 13.1.2. Cabinet Parts List...
-
Page 18: Electrical Parts List
Ref. No. Part No. Part Name & Description Remarks CABINET AND CHASSIS RFKHBWA1501E ACT SUBWOOFER ASS’Y RMVX0077-1J SPEAKER UNIT GUARD RMQX0088-J EVA PACKING RGKX0255-S1J STAND ORNAMENT RGRX033CN1AJ REAR PANEL [M]EG RGRX033CP1AJ REAR PANEL [M]EB REM0072-4 SHE187-6J PCB SUPPORT RMN0203 PCB HOLDER RMRX0047-2J LED HOLDER RKAX0018-KJ... - Page 19 Ref. No. Part No. Part Name & Description Remarks Q513 B1AACF000089 TRANSISTOR Q514 B1AACF000089 TRANSISTOR Q515 B1AACF000089 TRANSISTOR Q519 B1AACF000089 TRANSISTOR Q520 B1GCCFJJ0015 TRANSISTOR DIODES D500 B0AACK000004 DIODE D501 B0JAPG000019 DIODE D502 B0JAPG000019 DIODE D503 MA2C700A0F DIODE D504 B0AACK000004 DIODE D505 B0AACK000004 DIODE...
- Page 20 Ref. No. Part No. Part Name & Description Remarks Z501 ERZV10V511CS ZENER SPEAKER L0AA17A00003 WOOFER RELAY RLY501 K6B1AEA00003 MAGNET RELAYS FUSES K5D202BK0005 250V 2A FUSE FUSE HOLDERS FC501 EYF52BC FUSE HOLDER FC502 EYF52BC FUSE HOLDER HOLDERS H500 K1YF12000002 12P WIRE HOLDER H505A K1YZ03000010 3P CABLE HOLDER...
- Page 21 Ref. No. Part No. Part Name & Description Remarks R506 ERDS2TJ153T 15K 1/4W R507 ERDS2TJ392T 3.9K 1/4W R508 ERDS2TJ392T 3.9K 1/4W R509 ERDS2TJ332T 3.3K 1/4W R510 ERDS2TJ472T 4.7K 1/4W R511 ERDS2TJ153T 15K 1/4W R512 ERDS2TJ153T 15K 1/4W R513 ERDS2TJ563T 56K 1/4W R514 ERDS2TJ563T 56K 1/4W...
- Page 22 Ref. No. Part No. Part Name & Description Remarks R560 ERDS2TJ103T 10K 1/4W R561 ERDS2TJ101T 100 1/4W R565 ERDS1FVJ392T 3.9K 1/2W R566 ERDS2TJ271T 270 1/4W R567 ERDS1FVJ152T 1.5K 1/2W R568 ERDS2TJ151T 150 1/4W R569 ERDS1FVJ392T 3.9K 1/2W R570 ERDS2TJ103T 10K 1/4W R571 ERDS2TJ332T 3.3K 1/4W...
-
Page 23: Packing Materials & Accessories Parts List
Ref. No. Part No. Part Name & Description Remarks C522 F1D1H473A012 0.047 50V C523 F1D1H473A012 0.047 50V C524 F1D1H1040002 0.1 50V C525 F1D1H1040002 0.1 50V C526 F1D1H1040002 0.1 50V C527 F1D1H1040002 0.1 50V C528 F1D1H473A012 0.047 50V C529 F1D1H1040002 0.1 50V C530 ECBT1H102KB5 1000P 50V... - Page 24 FLE0406/P/A/S/E/N...
- Page 25 AC INLET P.C.B. (REPX0375H)...EB (REPX0375J)...EG T2AL 250V (BLU) (BRW) FC501 FC502 JK500 L500 J500 RLY501 AC IN Q519 J501 230-240V 50Hz...EB 230V J502 50Hz...EG J503 Q515 J526 J540 J522 CN502 CAUTION RISK OF ELECTRIC SHOCK AC VOLTAGE LINE. PLEASE DO NOT TOUCH THIS P.C.B TRANSFORMER P.C.B.
- Page 26 SCHEMATIC DIAGRAM-1 : MAIN SIGNAL LINE : -B SIGNAL LINE POWER CIRCUIT : +B SIGNAL LINE IC501 C551 IC501 0.01 RSN311W64C-P POWER HIC E501 K4CZ01000027 R501 R513 4.7K R502 C507 18P 4.7K R514 C508 18P R524 120K D501-D502 R506 B0JAPG000019 R516 R526 C510 22P...
- Page 27 SCHEMATIC DIAGRAM-2 : MAIN SIGNAL LINE : -B SIGNAL LINE POWER CIRCUIT : +B SIGNAL LINE R597 R594 C564 1200P R592 Q514 Q513 R403 R599 100K C565 R593 R571 C568 R591 R572 3.3K 0.01 6.8K 470K C562 IC502 5600P C0AABB000055 C524 C525 DUAL LOW-NOISE OP AMP...
- Page 28 SCHEMATIC DIAGRAM-3 : -B SIGNAL LINE : +B SIGNAL LINE CN502 HELP PCONT D.GND POWER CIRCUIT (CP502) ON SCHEMATIC SYS6V DIAGRAM-2 LED CNT R401 220K R590 R579 3.3K Q515 B1AACF000089 Q519 Q515 DC DET SWITCH Q519 B1AACF000089 DCDET SWITCH D500 B0AACK000004 T501 RLY501...
- Page 29 CN501 CN503/ TO MAIN UNIT W503 7..1 CP502 CENTER SPEAKER JK502 SURROUND RIGHT SPEAKER LED P.C.B. SURROUND CN507 LEFT SPEAKER FRONT RIGHT SPEAKER SPEAKER FRONT LEFT JK501 WOOFER SPEAKER H505A/W505 SOLDER SIDE SOLDER SIDE POWER P.C.B. (BRW) (BLU) SOLDER SIDE...
- Page 30 IC501 RSN311W64C-P POWER HIC POWER CONTROL CIRCUIT POWER CONTROL/PROTECTION CIRCUIT 11(12) (26) (19) D501 D502 Q506 INTERFACE SWITCH TO MAIN BLOCK OF Q505 SA-HT1500EBS/EGS SWITCHING SL(R) FILTER JK501(JK502) SURROUND SPEAKER FILTER JK502 CENTRE SPEAKER FILTER SUBWOOFER FL(R) FILTER JK501 FRONT SPEAKER T501 Q501,...
- Page 31 B1AACF000089 C0AABB000055 RSN311W64C-P B1ACKD000004 B1BACG000009 B1GCCFJJ0015 MA2C700A0F B3ABA0000397 B0BA5R100013 B0HARM000017 B0EAKM000122 Cathode Cathode Cathode Anode Cathode Cathode Anode Anode Anode Anode B0AACK000004 B0BA9R600002 B0JAPG000019 B0EAKM000117 Cathode Anode...
- Page 32 POWER P.C.B. (REPX0375H)...EB (REPX0375J)...EG J570 CN501 J581 J528 CP502 R543 R544 TO MAIN UNIT R539 Q513 R540 J504 R542 R572 R541 Q514 J533 Q505 Q506 Q509 C532 R522 R521 R537 R585 R545 C522 JK502 L505 J515 C528 CENTRE R582 C519 SPEAKER L502 SURROUND RIGHT...
- Page 33 Q513 Q507 C537 CN503 J504 R572 R554 C541 J505 Q514 Q510 Q508 Q502 J513 Q501 Q506 Q509 J515 J544 Q520 R570 J402 D518 J403 J567 J586 J568 J404 J587 J569 J405 J588 J560 J406 H505B J417 J511 R527 J584 /W505 R502 R517 J563...
