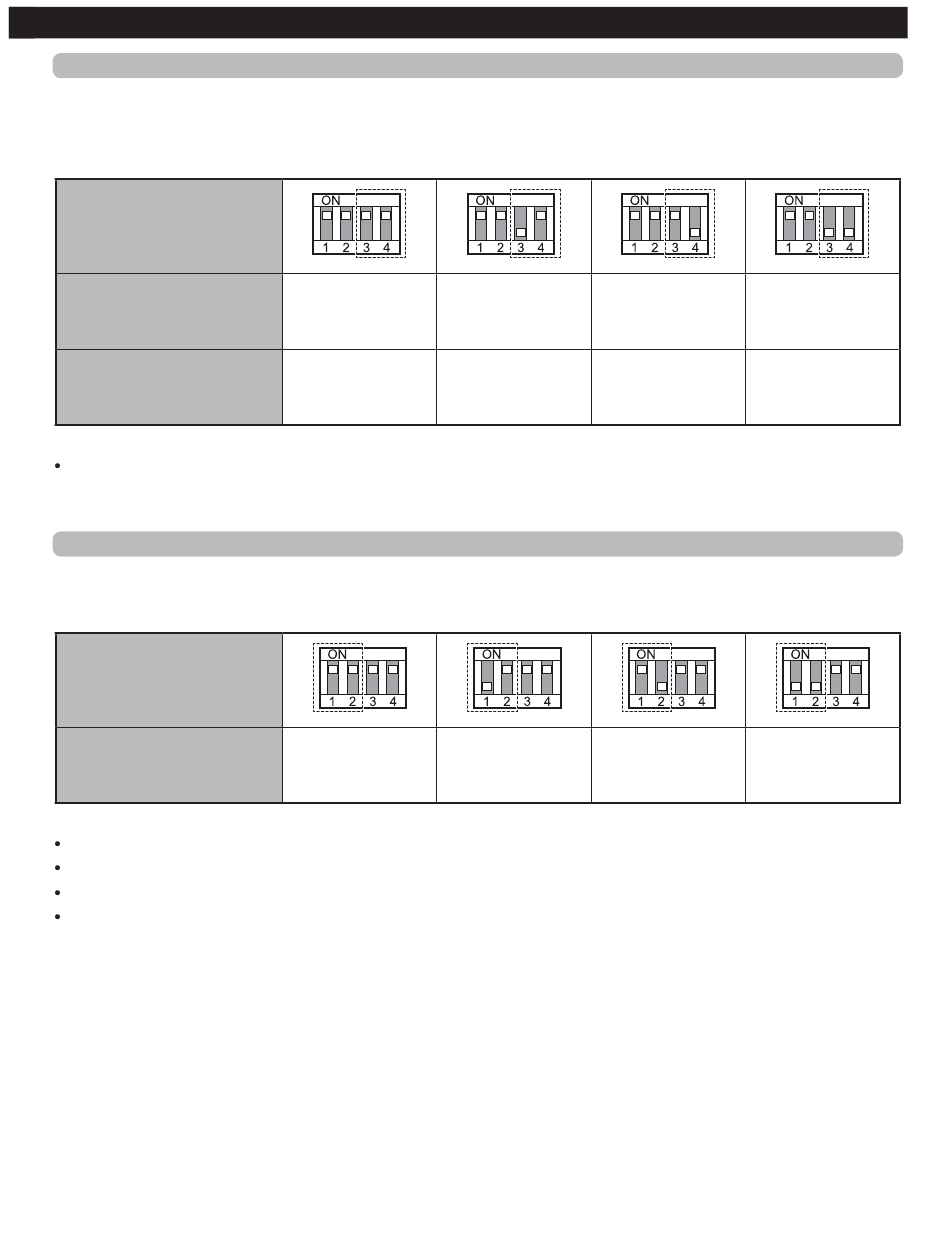

Move the voltage cutoff settings switches (3, 4) to set them depending on the vehicle battery voltage (12 V/24 V).
When the vehicle battery voltage drops below the voltage cutoff settings value, the product will automatically
stop operation.
(Factory default: 11.8 V / 23.6 V)
Switch position
Voltage cutoff settings
value (If vehicle is 12 V)
Voltage cutoff settings
value (If vehicle is 24 V)
Note
Depending on the usage environment and vehicle status, voltage cutoff settings values will have a margin
of error of approximately ±2 %.
To use the timer off functionality, move the timer off settings switches (1, 2) to set.
After ACC off, when the set time has elapsed, the product will automatically stop operation.
(Factory default: 3 hours)
Switch position
Timer off set time
Note
The set time will have a margin of error of approximately ±10 %.
If the ACC linkage is set to A mode, then timer settings for this product will be disabled.
If the ACC linkage is set to B mode, then timer off settings for this product cannot be disabled.
When the vehicle battery voltage drops below the voltage cutoff settings value, the product will
automatically stop operation regardless of set times.
Voltage cutoff settings
11.6 V
11.8 V
23.2 V
23.6 V
Timer off settings
1 hour
3 hours
12.0 V
12.2 V
24.0 V
24.4 V
6 hours
12 hours
