USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

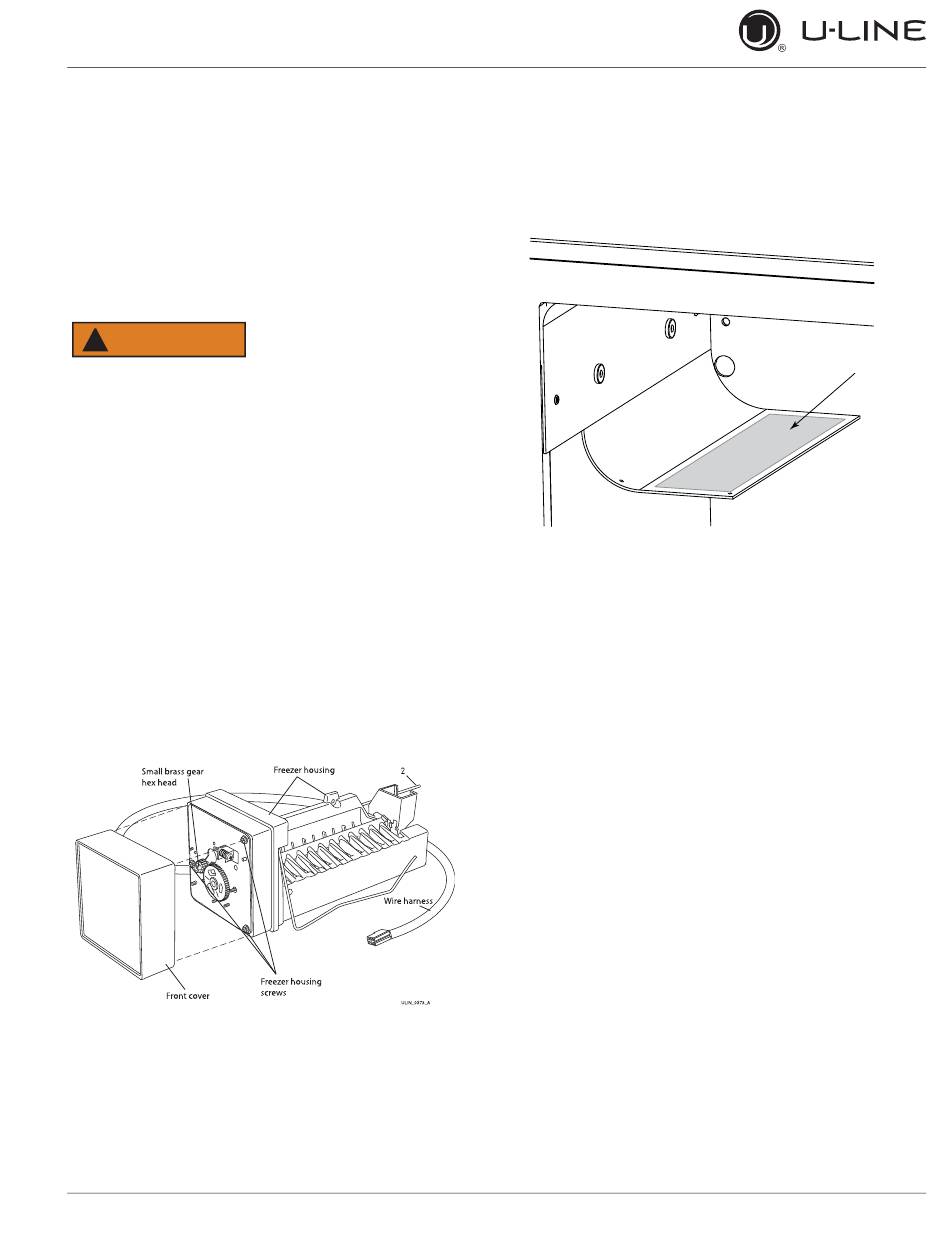

Replace Ice Maker
The new ice maker assembly you have received will have
a plug-in connection.
REMOVE ICE MAKER
1. Unplug the unit.
!
WARNING
SHOCK HAZARD — Never attempt to repair or
perform maintenance on the unit until the
electricity has been disconnected.
2. Disconnect ice maker wire harness at plug.
3. Disconnect thermistor plug.
4. Remove water inlet tube.
5. Remove three screws from wall of freezer housing.
6. Remove ice maker assembly.
INSTALL ICE MAKER
1. If ice maker sits on evaporator (as shown) be sure to
apply the included Alumilastic paste.
2. Reconnect plug.
3. Reconnect thermistor plug.
4. Re-install screws.
5. Insert water inlet tube.
®
6. Apply Permagum
7. Install back panel.
8. Plug in unit and test.
47
u-line.com
Apply here
to all exit holes on back of unit.
Replace Ice Maker 1
