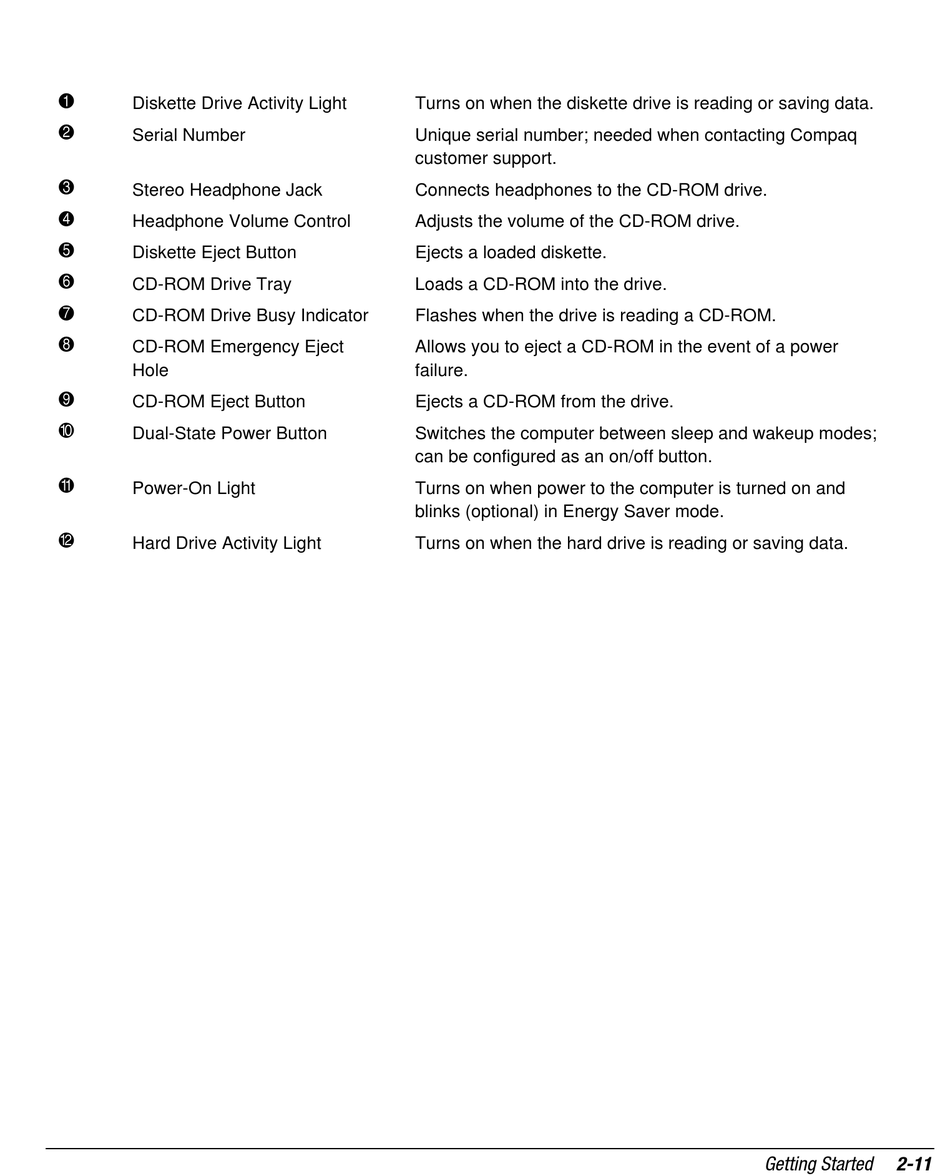

HP Deskpro EN DT 6500 Plus Getting Started page 20

1
Diskette Drive Activity Light
2
Serial Number
3
Stereo Headphone Jack
4
Headphone Volume Control
5
Diskette Eject Button
6
CD-ROM Drive Tray
7
CD-ROM Drive Busy Indicator
8
CD-ROM Emergency Eject
Hole
9
CD-ROM Eject Button
:
Dual-State Power Button
;
Power-On Light
<
Hard Drive Activity Light
Turns on when the diskette drive is reading or saving data.
Unique serial number; needed when contacting Compaq
customer support.
Connects headphones to the CD-ROM drive.
Adjusts the volume of the CD-ROM drive.
Ejects a loaded diskette.
Loads a CD-ROM into the drive.
Flashes when the drive is reading a CD-ROM.
Allows you to eject a CD-ROM in the event of a power
failure.
Ejects a CD-ROM from the drive.
Switches the computer between sleep and wakeup modes;
can be configured as an on/off button.
Turns on when power to the computer is turned on and
blinks (optional) in Energy Saver mode.
Turns on when the hard drive is reading or saving data.
Getting Started 2-11
