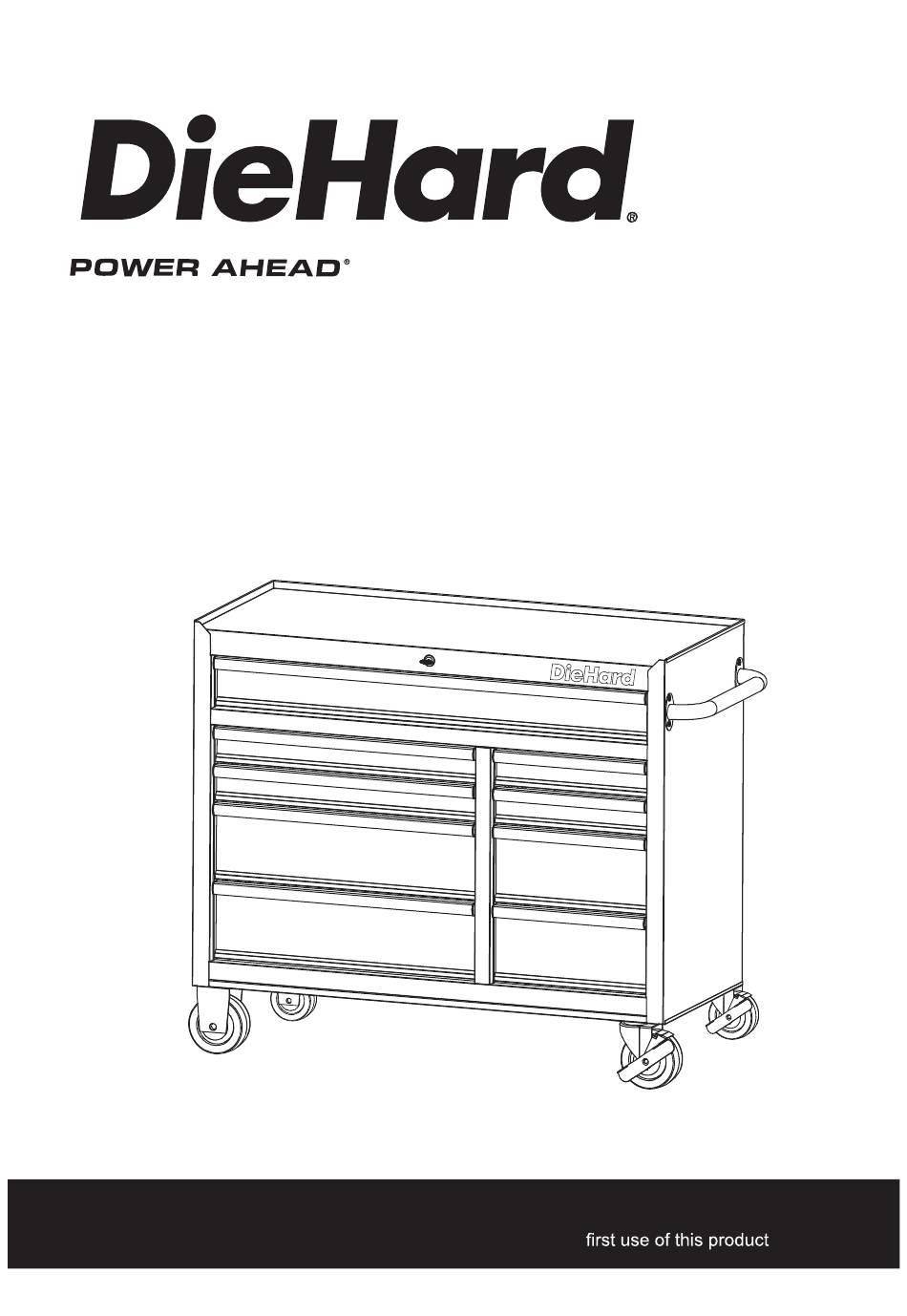

- Page 1 9-DRAWER 42-IN. MOBILE CABINET MANUAL 10885 CAUTION: Read and follow all Safety Rules and Operating instructions before...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS COMPONENTS SPECIFICATIONS Product size 42-In.W x 18-In.D x 37-In.H Product Weight 154 lbs. Maximum drawer capacity 100 lbs. Maximum total capacity 1200 lbs. SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble or operate this product. -
Page 3: Part List
PART LIST PART DESCRIPTION Top cabinet mat Big drawer liner Cabinet handle Swivel caster with brake Fixed caster Bottom cabinet drawer slide Bottom cabinet left drawer liner Bottom cabinet right drawer liner M6 x 20 mm Bolt M8 x 20 mm Bolt M8 x 25 mm Bolt Spring washer Washer... - Page 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 15 minutes (does not include unpacking time) Tools Required for Assembly (included): 10 mm Wrench, 14 mm Wrench Tools Required for Assembly (not included): Adjustable Wrench ASSEMBLY INSTRUCTIONS...
- Page 5 Step 2. Ensure all cabinet drawers are securely locked into place using the lock (GG) and key (HH) on the bottom cabinet. Lay the bottom cabinet on its back using the cardboard package materials to protect the finish. Mount the two swivel casters with brake (D) to the bottom cabinet using M8 x 25 mm bolts (CC), spring washer (DD) and washer (EE).
- Page 6 OPERATING INSTRUCTIONS 1. How to use the caster brakes: To lock the swivel casters, step down on the levers marked with ON. To unlock casters, push down on the levers marked with OFF. Note: Be sure to lock both casters to prevent cabinet from rolling or swiveling.
-
Page 7: Care And Maintenance
This warranty gives you specific rights, and you may also have other rights which vary state to state. DieHard® name and logo are used under license. Product distributed by Transform SR Brands Management LLC, Hoffman Estates, IL 60179 Made in Cambodia.
