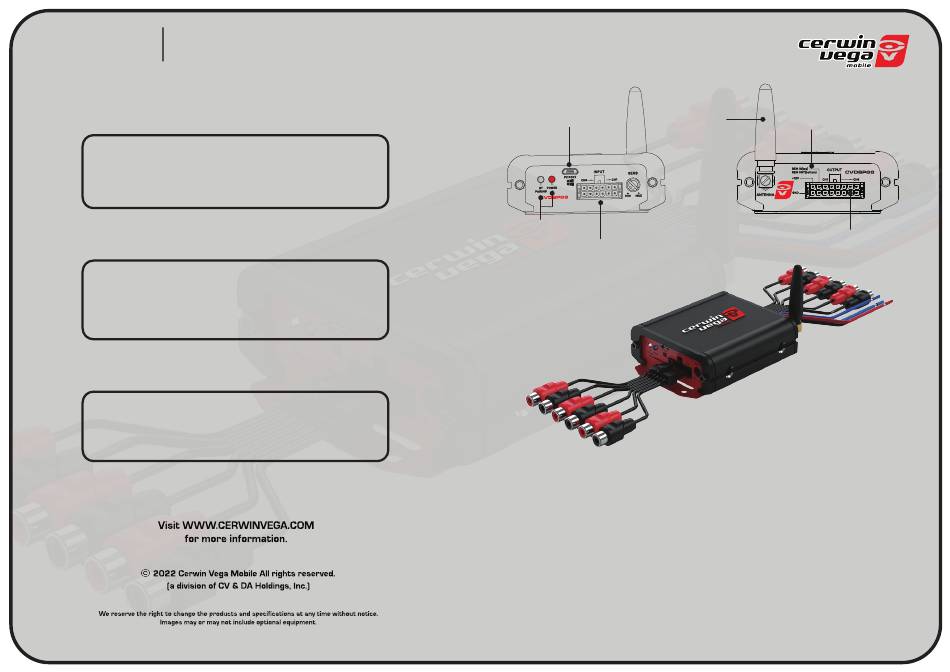

6 IN 6 OUT DIGITAL SIGNAL PROCESSOR
CVDSP66
PRODUCT QUICK START GUIDE
STEP 1
DOWNLOAD CVDSP66 SOFTWARE FROM:
https://cerwinvega.com/micro-6-in-6-out-dsp.html
Install the software and add to your desktop for easy
access.
STEP 2
Make power connections as follows:
• RED - 12V Constant Power
• BLACK - Negative Ground
• BLUE - Remote IN
• YELLOW - Remote OUT 3.5 Sec delay turn off
STEP 3
Make Input and Out Connections (see diagrams)
Once your High Level/Low Level Inputs have been
made propperly secure device free of any
obstructions.
BT Antenna
PC Micro USB Connection
Status Idicator
High/Low Input Harness
NEED HELP WITH YOUR INSTALLATION?
TECH SUPPORT 213-212-3182
Power Input
Low Level Output Harness
