Summary of Contents for Iiyama UC CAM180UM-1

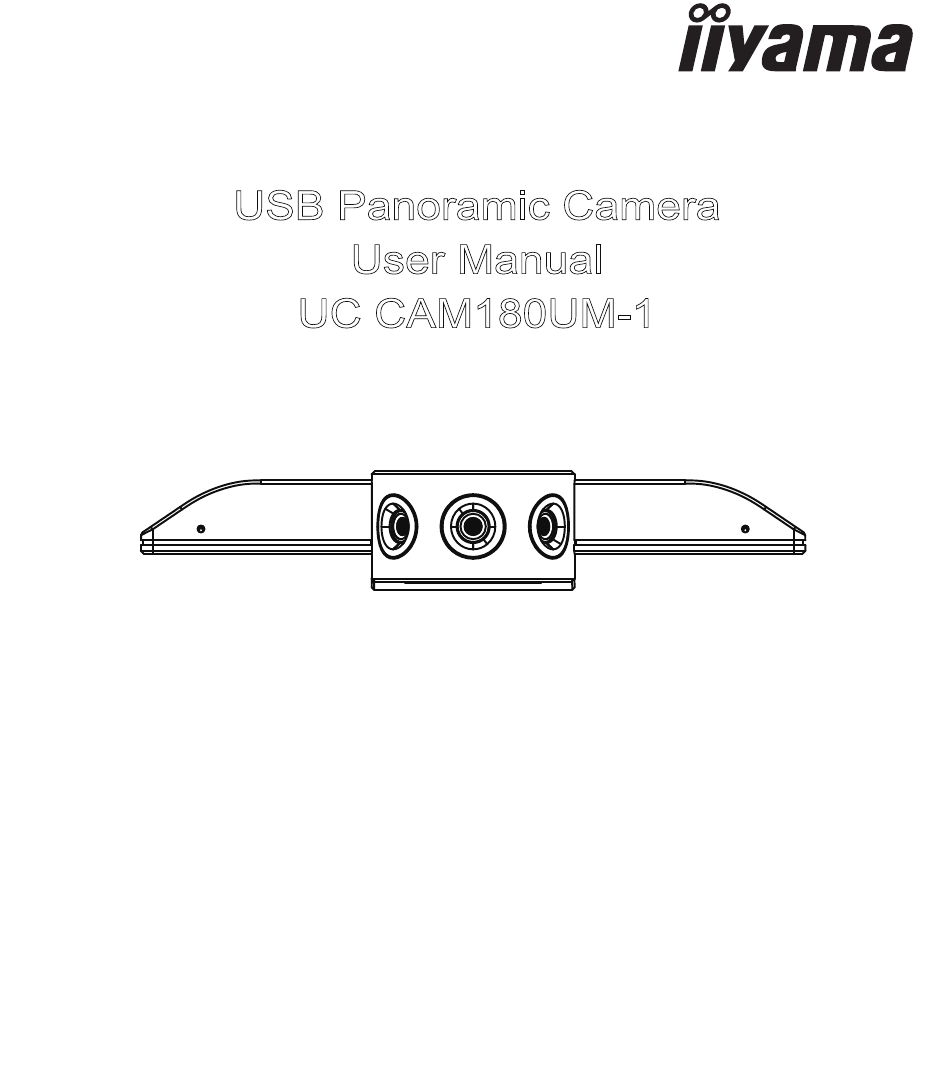

- Page 1 USB Panoramic Camera User Manual UC CAM180UM-1 All pictures in this guide are for reference only, please refer to the actual product.
-
Page 2: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. - Page 3 ·Safety Warnings ·Commonly Used Functions · Step-by-step Installation and Operation User Manual ·Scenarios of Combined Use · ℃ ℃ Power Supply Please use the standard cable of this product.
- Page 4 This is only an introduction to the commonly used functions. For other specific details, please refer to the actual product. · Functions on the front of the device Microphones Cameras -One Click video layout switch- During the video conference, press the touch button for switch Body-Fit/Grid/Presentation/ Speaker/Compose/Manual Mode...
- Page 5 Spare x 1 Spare x 1 – – – –...
- Page 6 The speakerphone’ s dongle can work with Panoramic Camera simultaneously. Paoring the Bluetooth dongle of UC SPK01L / UC SPK01M by connecting it with the USB2.0 Type-A port of the Panoramic Camera. The camera can also be used together with the wireless omni-directional speakerphone.
- Page 7 Connect Place...
- Page 8 Instructions for Installing the PanoCAM Studio Obtain setup file: When the USB Panoramic Camera is connected to a PC, a CD-ROM icon will appear on the PC screen, an shown below. Double-click on the CD-ROM icon to enter the disk; Double-click on the PanoCAMStudioSetup.exe to start installation;...
- Page 9 Click Install to select a directory for installation; Click Finish to complete the installation.
- Page 10 Instructions for Using the PanoCAM Studio 1.Connect the USB Panoramic Camera Connect the camera to a computer or a IFP via USB. Run the PanoCAM Studio App on the computer or the IFP (with PC), and the PanoCAM Studio will automatically search for and connect the camera. If not, click the “Try Again”...
- Page 11 2.Turn on face tracking Select the virtual “Studio Camera” for video conferencing, and face tracking will automatically start. At this point, the PanoCAM Studio window will shrink to a minimum. The shrunken PanoCAM Studio window: Note: When installing the PanoCAM Studio on Windows10 and MACOS, the virtual Studio Camera will be automatically installed, whereas on Windows7 and 8, you will need to manually install it to use face tracking.
- Page 12 3.Additional features Manual box selection The PanoCAM Studio also supports manual box selection. Simply click on the mouse to draw a frame on the panorama. Clock “Edit” - “Clean All” to undo all selections. Move the mouse over the selected area and right click to open a drop-down menu with 3 options as follows: Auto tracking: Automatically track the selection box.
- Page 13 Auto tracking Auto-Detect will be enabled by default when the PanoCAM Studio is turned on. If more sensitive tracking is needed, enable the auto-tracking function by checking “Auto Tracking”. Image mirror When the image mirror is turned on, the output image from the Studio Camera is mirror-inverted.
- Page 14 Notes: a. When no person is detected and there is no manual box selection, the output screen shows a panorama at the top and default icons at the bottom; b. When the persons detected or the areas of manual box selection are close to each other, they will merge into one close-up box.
- Page 15 (2) Manual mode In the manual mode, the output screen shows the area of manual box selection, which can be resized by manually adjusting the box. Note: Face tracking is not available in the manual mode. Output image:...
- Page 16 (3) Body-fit mode In the body-fit mode, the output image is a close-up of all the persons being tracked. Note: When no person is detected and there is no manual box selection, the output screen shows a panorama. Output image:...
- Page 17 (4) Grid mode Also known as the group discussion mode, recommended for 1-4 participants. Each person being tracked or each manually selected area is in a separate close-up box, with up to four close-up boxes. Notes: a.When no person is detected and there is no manual box selection, the output screen shows the default icons.
- Page 18 (5) Presentation mode In the presentation mode, the output screen becomes a combo box, with the manually selected yellow box (for displaying content) at the top and the persons detected at the bottom right. Note: When no person is detected and there is no manual box selection, the output screen shows the area within the yellow box.
- Page 19 (6) Speaker mode In the speaker mode, the output screen shows the persons detected at the top and a panoramic view at the bottom. Note: When no person is detected and there is no manual box selection, the output screen shows the default icons at the top and a panorama at the bottom.
- Page 20 USB Panoramic Camera User Manual M314A15...
