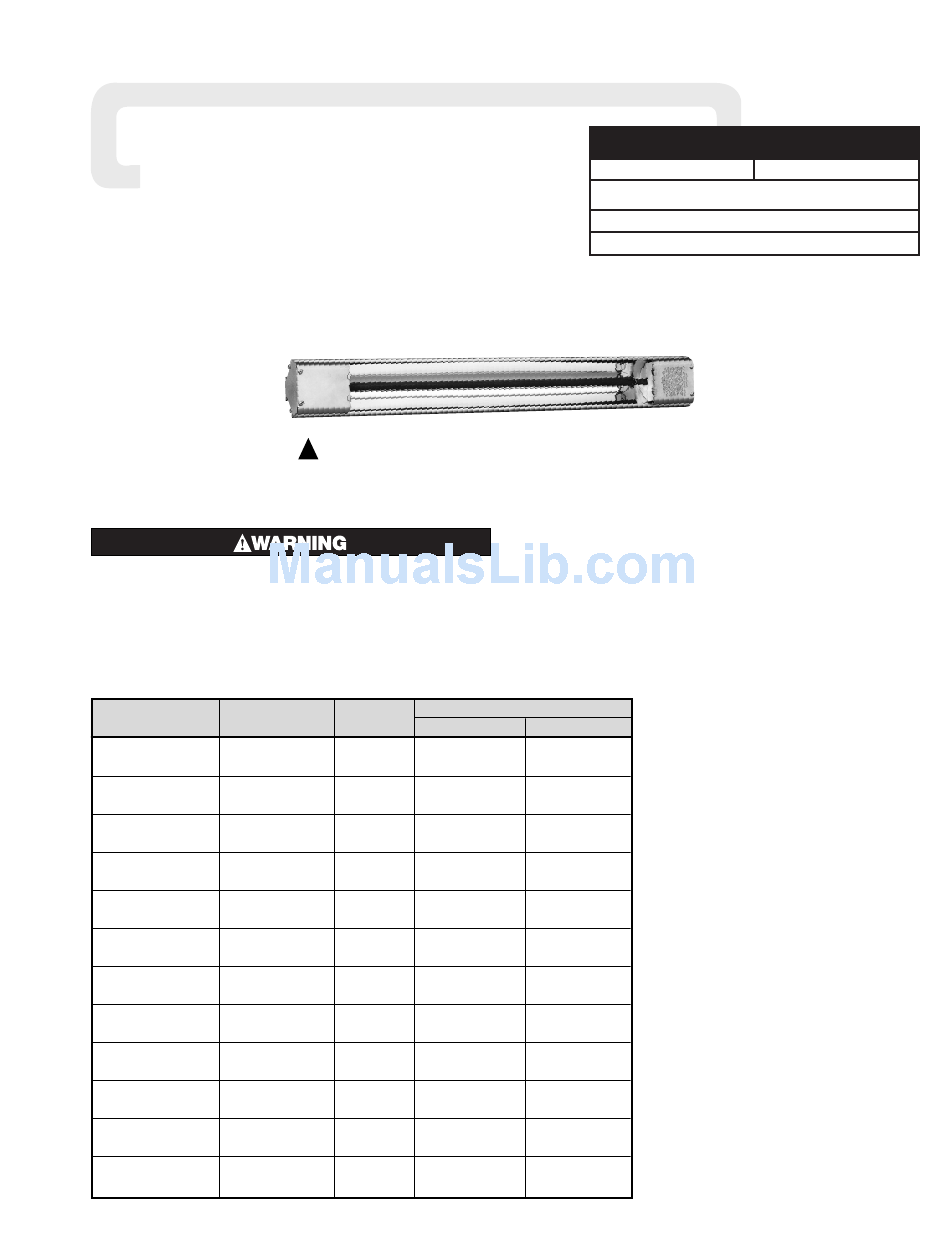

Chromalox RAD-2063BX35 Installation, Operation And Renewal Parts Identification

Chromalox
RENEWAL PARTS IDENTIFICATION
Type RAD (Style 3B) Electric Radiant Heaters
The Safety Alert Symbol
risk of personal injury
Familiarize yourself with these instructions before attempting
to install or operate this Radiant Heater.
The system designer is responsible for the safety
of this equipment and should install adequate
back-up controls and safety devices with their
electric heating equipment. Where the conse-
quences of failure could result in personal injury or
property damage, back-up controls are essential.
Specifications Table –
Model
RAD-2063BX35
RAD-2063BX29
RAD-2083B
RAD-2083BV
RAD-3113B
RAD-3113BV
RAD-3133BV
RAD-3133B
RAD-4183BV
RAD-4183B
RAD-5213BV
RAD-5213B
RAD-5253BV
RAD-5253B
RAD-6273BV
RAD-6273B
RAD-6303BV
RAD-6303B
RAD-7333BV
RAD-7333B
RAD-7363BV
RAD-7363B
RAD-8453BV
RAD-8453B
© 2010 Chromalox, Inc.
Installation, Operation
and
!
is used to indicate a
Volts kW
120 0.4
120 .65
120 or 240 0.8
208 or 275 0.8
120 or 240 1.1
208 or 275 1.1
208 or 275 1.3
240 or 480 1.3
208 or 275 1.8
240 or 480 1.8
208 or 275 2.15
240 or 480 2.15
208 or 275 2.5
240 or 480 2.5
208 or 275 2.7
240 or 480 2.7
208 or 275 3.0
240 or 480 3.0
208 or 275 3.35
240 or 480 3.35
208 or 275 3.6
240 or 480 3.6
208 or 275 4.5
240 or 480 4.5
SERVICE REFERENCE
DIVISION
SALES
REFERENCE
DATE
Before Installing
1. Open carton and remove heater at the place of installation.
Mounting clamps are in parts bag in carton.
2. Check nameplate volt and watt rating against your power sup-
ply voltage and heating requirements of your installation. This
nameplate is located on one end of the heater.
Length (In.)
Overall Heated
13-5/8 7-3/4
20 14-1/8
24-3/8 16-1/2
30-5/8 22-3/4
35-7/8 28-5/16
46-5/8 38-1/2
53-7/8 45-7/16
61-3/8 53-3/8
65-7/8 58-1/4
73-3/4 65-3/4
79-7/8 72-1/4
85-3/4 78
106 97-1/2
4 RAD
SECTION
PG404-10
(Supersedes PG404-9)
161-048215-001
APRIL, 2005
