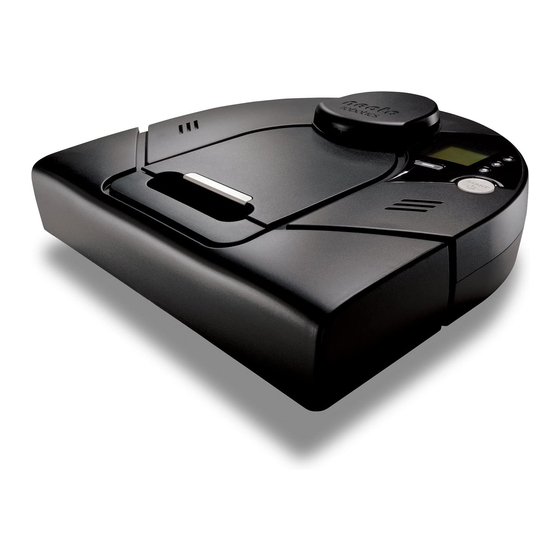

Neato Robotics XV Instructions

Instructions for Replacing your Neato Robotics Battery
1) Locate the tool provided
with your Neato Battery
Replacement Kit to
remove the screws
on the battery doors.
2) Locate the four screws
securing the two battery
doors on the underside of
your Neato robot.
3) Remove the four screws on the battery doors
and access the batteries.
4) Replace the batteries, making sure that they are
facing the proper direction, allowing the battery
door to close.
5) Plug the battery connector in firmly until fully
seated, making sure that it is oriented properly
and the connector shapes match up.
6) Replace the battery doors and secure using the
new screws provided.
7) Charge on the charging base until the light turns
solid green.
Note: Your battery will perform optimally after the first 2-3 complete cleaning cycles.
