Axis M3077-PLVE User Manual

Hide thumbs Also See for M3077-PLVE:
Table of Contents

Advertisement

Quick Links

Download this manual

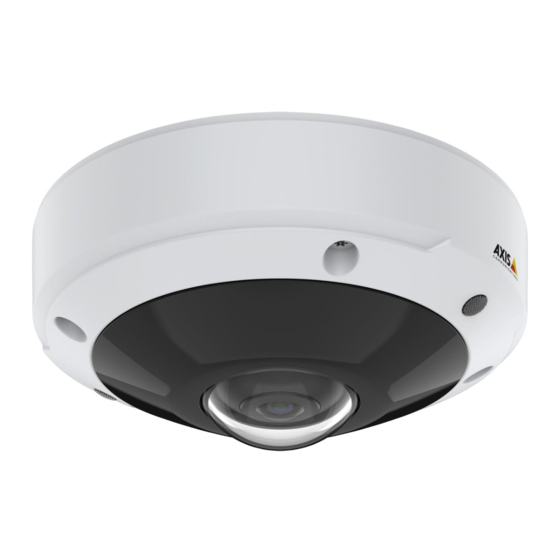

AXIS M3077-PLVE Network Camera
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Axis M3077-PLVE

Summary of Contents for Axis M3077-PLVE

  • Page 1 AXIS M3077-PLVE Network Camera User Manual...

  • Page 2: Table Of Contents

    AXIS M3077-PLVE Network Camera Table of Contents Get started ..........

  • Page 3: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 4: Webpage Overview

    Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.

  • Page 5: Installation

    AXIS M3077-PLVE Network Camera Installation Installation To watch this video, go to the web version of this document. www.axis.com/products/online-manual/63674#t10162017 Installation tutorial AXIS M4308-PLE, AXIS M3077-PLVE, AXIS M3057-PLVE Mk II...

  • Page 6: Configure Your Device

    AXIS M3077-PLVE Network Camera Configure your device Configure your device Adjust the image This section includes instructions about configuring your device. If you want to learn more about how certain features work, go to Learn more on page 48. Rotate the image with digital roll Note If you rotate the image, all views are affected.
  • Page 7 AXIS M3077-PLVE Network Camera Configure your device (Continued) 2304x864 to 192x72 Corner Left/Right 2368x1184 Double Corner 1920x1440 to 384x288 2016x2016 to 480x480 2560x1920 to 320x240 Corridor 16:9 2560x1440 to 256x144 Level the camera To adjust the view in relation to a reference area or object, use the leveling guide in combination with the digital roll slider in the camera.
  • Page 8 AXIS M3077-PLVE Network Camera Configure your device 1. Go to Video > Image > Day-night mode, and make sure that the IR-cut filter is set to Auto. 2. To set at what light level you want the camera to switch to night mode, move the Threshold slider toward Bright or Dark.
  • Page 9 3. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Hide parts of the image with privacy masks You can create one or several privacy masks to hide parts of the image.
  • Page 10 AXIS M3077-PLVE Network Camera Configure your device 1. Go to Video > Overlays. 2. Select Image and click 3. Go to the Images tab. 4. Drag and drop an image. 5. Click Upload. 6. Go to the Manage overlay tab.

  • Page 11: View And Record Video

    AXIS M3077-PLVE Network Camera Configure your device 2. In the text field, type #x to show the pan position. Type #y to show the tilt position. 3. Choose appearance, text size, and alignment. 4. Include the text overlay. 5. The current pan and tilt positions show up in the live view image and in the recording.

  • Page 12: Set Up Rules For Events

    AXIS M3077-PLVE Network Camera Configure your device 6. Select the SMB version or leave it on Auto. 7. Select Add share even if connection fails if you experience temporary connection issues, or if the share is not yet configured. 8. Click Add.
  • Page 13 AXIS M3077-PLVE Network Camera Configure your device 2. Make sure you have set up the application according to your needs. Create a rule: 1. Go to System > Events and add a rule. 2. Type a name for the rule.
  • Page 14 1. Go to System > Accessories > I/O ports. 2. Make sure that the port you connected the AXIS I/O Indication LED to is set to Output. Set the normal state to Circuit open. 3. Go to System > Events.
  • Page 15 AXIS M3077-PLVE Network Camera Configure your device Before you start • Connect the intrusion alarm switch to pin 1 (ground) and pin 3 (digital input) of the camera’s I/O connector. Configure the input port 1. Go to System > Accessories > I/O ports.
  • Page 16 AXIS M3077-PLVE Network Camera Configure your device 4. Type an email address to send the email to. 5. The camera doesn’t have it’s own email server, so it has to log into another email server to send mails. Fill in the rest of the information according to your email provider.

  • Page 17: Add Audio To Your Recording

    AXIS M3077-PLVE Network Camera Configure your device Add audio to your recording 1. Go to Video > Stream > Audio and include audio. 2. If the device has more than one input source, select the correct one in Source. 3. Go to Audio > Device settings and turn on the correct input source.

  • Page 18: Cleaning Recommendations

    AXIS M3077-PLVE Network Camera Cleaning recommendations Cleaning recommendations NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone. 1. Use a can of compressed air to remove any dust or loose dirt from the device. 2. If necessary, clean the lens with a soft cloth dampened with lukewarm water.

  • Page 19: The Device Interface

    AXIS M3077-PLVE Network Camera The device interface The device interface You reach the device interface by entering the IP address of the device in a web browser. Note Support for the features and settings described in this section varies between devices.

  • Page 20: Video

    AXIS M3077-PLVE Network Camera The device interface Video Click to play the live video stream. Click to freeze the live video stream. Click to take a snapshot of the live video stream. The file is saved in the ‘Downloads’ folder on your computer. The image file name is [snapshot_YYYY_MM_DD_HH_MM_SS.jpg].
  • Page 21 AXIS M3077-PLVE Network Camera The device interface • Refresh: Click to refresh the still image in the live view. Click to show the live view at full resolution. If the full resolution is larger than your screen size, use the smaller image to navigate in the image.
  • Page 22 AXIS M3077-PLVE Network Camera The device interface Brightness: Use the slider to adjust the light intensity. This can make objects easier to see. Brightness is applied after image capture, and doesn’t affect the information in the image. To get more details from a dark area, it’s usually better to increase gain or exposure time.
  • Page 23 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis accessory.
  • Page 24 AXIS M3077-PLVE Network Camera The device interface Synchronize illumination: Turn on to automatically synchronize the illumination with the surrounding light. The synchronization between day and night only works if the IR-cut filter is set to Auto or Off. Automatic illumination angle : Turn on to use the automatic illumination angle.
  • Page 25 AXIS M3077-PLVE Network Camera The device interface Note The exposure zones are related to the original image (un-rotated), and the names of the zones apply to the original image. This means, for example, that if the video stream is rotated 90°, then the Upper zone becomes the Right zone in the stream, and Left becomes Lower.
  • Page 26 Zipstream: A bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.
  • Page 27 AXIS M3077-PLVE Network Camera The device interface • Baseline : Use if the video management client doesn’t support CABAC entropy coding. • Main: Use if the video management client supports CABAC entropy coding, to achieve higher compression with maintained video quality. It requires more processing power to decode compared to the baseline profile.

  • Page 28: Audio

    AXIS M3077-PLVE Network Camera The device interface : Select the position of the overlay in the image. • Image: Select to show a static image superimposed over the video stream. You can use .bmp, .png, .jpeg, or .svg files. To upload an image, click Images. Before you upload an image, you can choose to: Scale with resolution: Select to automatically scale the overlay image to fit the video resolution.

  • Page 29: Recordings

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/applications. You need a license code and the Axis product serial number to generate a license key.

  • Page 30: System

    AXIS M3077-PLVE Network Camera The device interface Note The device’s performance might be affected if you run several apps at the same time. Start: Start or stop the app. Open: Click to access the app’s settings. The available settings depend on the application. Some applications don’t have any settings.
  • Page 31 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 32 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 33 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 34 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 35 AXIS M3077-PLVE Network Camera The device interface Events Rules A rule defines the conditions that must be met for the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 36 AXIS M3077-PLVE Network Camera The device interface Use temporary file name: Select to upload files with temporary, automatically generated filenames. The files get renamed to the desired names when the upload completes. If the upload is aborted/interrupted, you don’t get any corrupt files. However, you probably still get the temporary files. This way you know that all files that have the desired name, are correct.
  • Page 37 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 38 AXIS M3077-PLVE Network Camera The device interface Connect: Turn on or off the MQTT client. Status: Shows the current status of the MQTT client. Broker Host: Enter the hostname or IP address of the MQTT server. Protocol: Select which protocol to use.
  • Page 39 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 40 AXIS M3077-PLVE Network Camera The device interface Write protect: Turn on to stop writing to the network share and protect recordings from being removed. You can’t format a write-protected network share. Ignore: Turn on to stop storing recordings on the network share.
  • Page 41 AXIS M3077-PLVE Network Camera The device interface Session Initiation Protocol (SIP) is used for interactive communication sessions between users. The sessions can include audio and video. Enable SIP: Check this option to make it possible to initiate and receive SIP calls.
  • Page 42 AXIS M3077-PLVE Network Camera The device interface SIP accounts All current SIP accounts are listed under SIP accounts. For registered accounts, the colored circle lets you know the status. The account is successfully registered with the SIP server. There is a problem with the account. Possible reasons can be authorization failure, that the account credentials are wrong, or that the SIP server can’t find the account.
  • Page 43 Delete user: Delete the user. You can’t delete the root user. By creating an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. ONVIF media profiles...
  • Page 44 AXIS M3077-PLVE Network Camera The device interface An ONVIF media profile consists of a set of configurations that you can use to change media stream settings. Add media profile: Click to add a new ONVIF media profile. profile_x: Click a profile to edit.
  • Page 45 AXIS M3077-PLVE Network Camera The device interface Use digital input to connect external devices that can toggle between an open and closed circuit, for example PIR sensors, door or window contacts, and glass break detectors. Use digital output to connect external devices such as relays and LEDs. You can activate connected devices through the VAPIX®...

  • Page 46: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 47 AXIS M3077-PLVE Network Camera The device interface Firmware upgrade: Upgrade to a new firmware version. New firmware releases can contain improved functionality, bug fixes, and completely new features. We recommend you to always use the latest release. To download the latest release, go to axis.com/support.

  • Page 48: View Area

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller.
  • Page 49 H.265 can, without compromising image quality, reduce the size of a digital video file by more than 25% compared to H.264. Note • H.265 is licensed technology. The Axis product includes one H.265 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller.
  • Page 50 AXIS M3077-PLVE Network Camera Learn more Target bitrate Average bitrate (ABR) With average bitrate, the bitrate is automatically adjusted over a longer period of time. This is so you can meet the specified target and provide the best video quality based on your available storage. Bitrate is higher in scenes with a lot of activity, compared to static scenes.

  • Page 51: Applications

    Actual average bitrate Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications.
  • Page 52 AXIS People Counter AXIS People Counter is an analytic application that you can install on a network camera. You can use the application to count how many people pass through an entrance, in what direction they pass, and if more than one person passes during a predefined interval.

  • Page 53: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 54: Technical Issues, Clues, And Solutions

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.

  • Page 55: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 56: Contact Support

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.

  • Page 57: Specifications

    AXIS M3077-PLVE Network Camera Specifications Specifications Product overview IR illumination Microphone Status LED indicator Control button Network connector (PoE) Mounting bracket SD card slot I/O connector LED indicators Note The Status LED can be configured to flash while an event is active.

  • Page 58: Sd Card Slot

    This product supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 59 AXIS M3077-PLVE Network Camera Specifications Function Notes Specifications DC ground 0 V DC DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out. Max load = 25 mA...
  • Page 60 User Manual Ver. M10.2 AXIS M3077-PLVE Network Camera Date: June 2022 © Axis Communications AB, 2019 - 2022 Part No. T10142720...
