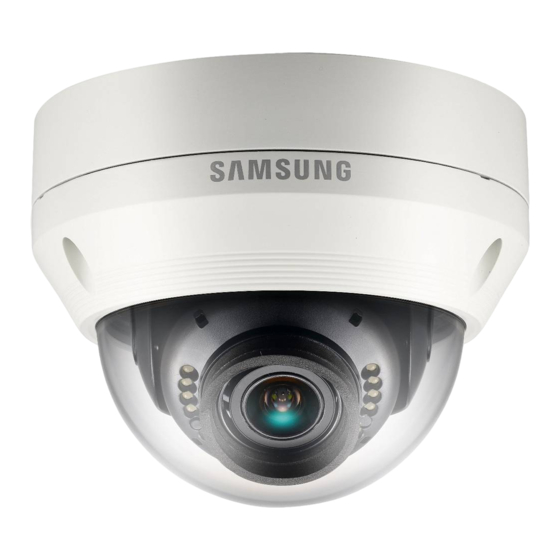

- Page 1 High Resolution Vandal-Resistant IR Dome Camera User Manual SCV-5081R...
- Page 2 High Resolution Vandal-Resistant IR Dome Camera User Manual Copyright ©2016 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company.
- Page 3 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we'll introduce our model description. ■ SCV-5081R SERIES • NTSC MODEL • PAL MODEL SCV-5081RN SCV-5081RP ■ MODEL DESCRIPTION • SCV-5081RX _ SIGNAL SYSTEM • SIGNAL SYSTEM N →...
- Page 4 safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
- Page 5 9. If this product fails to operate normally, contact the nearest service center. never disassemble or modify this product in any way. (samsung is not liable for problems caused by unauthorized modifications or attempted repair.) When cleaning, do not spray water directly onto parts of the product.
- Page 6 safety information FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation.
- Page 7 important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 8 contents inTroDuCTion Features Components and Accessories COMPONENT NAMES AND FUNCTIONS insTallaTion Before installation Installation Adjusting the monitoring direction for the camera ConnECTion Connecting to Monitor Connecting to Power Using Communications CamEra oPEraTion Menu Configuration Menu Setup TroublEshooTing Troubleshooting sPECifiCaTions Specifications Dimension 8_ contents...
- Page 9 Without an external sensor, you can use this product to detect motion and generate alarms and thus more efficient monitoring can be achieved. y ssnr4 (samsung super noise reduction) function High performance W7 Chip removes noises of GAIN resulting from the low light level and shows a vivid, high definition video even in the dark place.
- Page 10 BRIGHTNESS / LENS / SHUTTER / AGC / SSNR4 / RETURN Ne jamais démonter ou modifier le produit de quelque manière que ce soit. (SAMSUNG n’est pas or modify this product in any way. (samsung is not liable for problems caused by unauthorized spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or par un renversement.
- Page 11 ComPonEnT namEs anD funCTions Dome Cover shield Case Vari-focal lens module : 3 ~ 10.0mm (F1.4). rotate base : control rotating angle of camera. ➍ Pan base : Control panning angle of camera. Video output Terminal to monitor function setup switch : Display the menu on the screen and move the cursor to four directions to confirm status or after changing a selected item.
- Page 12 Installation bEforE insTallaTion Ensure you read out the following instructions before installing the camera: y You have to check whether the location (ceiling or wall) can bear five times the weight of your camera. y Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.
- Page 13 installing the camera on a ceiling or wall 1. Drill holes on the ceiling by matching to the holes on the case bed, and insert plastic anchors (HUD 5) (not included) fully into the holes. Fix the case bed on the ceiling by using screws .
- Page 14 3. Adjust the lens in a desired direction by referring to the “Adjusting the monitoring direction for the camera”section. 4. Close the dome cover. To ensure waterproofing, tight up the fixing bolts using the L-wrench. Shield case Dome cover The installation should be done by qualifi ed service personnel or system installers. If the ceiling material is not strong enough to hold the installation screws, the camera may fall off.
- Page 15 aDJusTing ThE moniToring DirECTion for ThE CamEra Tilt Lens rotation ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.
- Page 16 connection ConnECTing To moniTor Connect the video out port of the camera to the video input port of the monitor. SCV-5081R Monitor y As the connecting method varies with the instruments, refer to the manual supplied with the instrument. y Only connect the cable when the power is turned off. ConnECTing To PoWEr You can connect power as shown in the following figure.
- Page 17 When the resistance value of copper wire is at [20°C(68°F)] Copper wire size (AWG) #24 (0.22mm #22 (0.33mm #20 (0.52mm #18 (0.83mm Resistance value(Ω/m) 0.078 0.050 0.030 0.018 Voltage Drop (V/m) 0.028 0.018 0.011 0.006 y As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an excessively long adaptor output line for connection to the camera may affect the performance of the camera.
- Page 18 RS-485 communications Using RS-485 communication, the camera menu can be accessed using Samsung ’s System Controller or the DVR. - for accessing the camera from a computer Use a RS-485 converter to connect the camera’s control port with the computer’s serial cable.
- Page 19 camera operation mEnu ConfiguraTion main sETuP ● ● ● BASIC DAY/NIGHT BACKLIGHT PROFILE ● ● ● INDOOR USER ● ● SSDR ● ● ● OUTDOOR INDOOR WHITE BAL ● ● AWC SET ● MANUAL MERCURY ● ● ● BRIGHTNESS LENS SHUTTER EXPOSURE...
- Page 20 camera operation MAIN SETUP Select the function 1. PROFILE BASIC Change the status using the Function using the Function 2. SSDR Setup switch. Setup switch. 3. WHITE BAL 4. EXPOSURE 5. BACKLIGHT 6. SPECIAL 7. EXIT SAVE 1. Press the Function Setup switch. y Main SETUP menu is displayed on the monitor screen.
- Page 21 If you select the ITS, the shutter will be set to 1/200 sec. Noise can be detected at night. ssDr (samsung super Dynamic range) If an object has a large variance between bright and dark areas, it will keep bright areas bright and make selected dark areas bright, so that the overall brightness can be maintained.
- Page 22 camera operation White bal (White balance) Use the White Balance function to adjust the screen color. 1. When the SETUP menu screen is MAIN SETUP displayed, select ‘White Bal’ by 1. PROFILE BASIC using the Function Setup switch so 2. SSDR that the arrow indicates ‘White Bal’...
- Page 23 EXPosurE 1. When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function Setup switch so that the arrow indicates ‘EXPOSURE’. 2. Select a desired mode using the Function Setup switch. y brighTnEss : Adjusts the video EXPOSURE SETUP brightness.
- Page 24 camera operation baCKlighT The camera uses our own W7 chips that are designed to clearly display the object and the background despite severe reverse light. 1. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Function Setup switch. so that the arrow indicates ‘BACKLIGHT’. 2.
- Page 25 sPECial 1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup switch so that the arrow indicates ‘SPECIAL’. 2. Select a desired mode using the Function Setup switch. y DisPlaY If the SPECIAL menu screen is SPECIAL SETUP displayed, use the Function Setup ...
- Page 26 COMM SETUP communication 1. PROTOCOL SAMSUNG-T PROTOCOL. 2. CAM ID -------- (SAMSUNG- 3. BAUD RATE 9600 T,Samsung-E, Pelco-D, 4. UART MODE 8-N-1 Pelco-P, Panasonic, 5. RET PKT ENABLE Bosch, Honeywell, Vicon, 6. COAX AD, GE) 7. RETURN - CAM ID : Determines the camera's identification number (between 0 and 255).
- Page 27 Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then press the Function Setup switch. - V-REV : Flip an image vertically. - D-ZOOM : You can use a digital zoom of x1 ~ x16. - SHARPNESS : Select a mode to adjust the thickness of an image’s sharpness.
- Page 28 camera operation - EXTERN : Ground to the grounding terminal to allow automatic switching between COLOR and B/W (Black/White). - COLOR : The picture is always displayed in color. - B/W : The picture is always displayed in black and white. y BURST MODE : A cti v ate or deacti v ate the burst mode to mai n tai n or remove the col o r si g nal .
- Page 29 - MASK COLOR : Determine area color. You can select Green, Red, Blue, Black, White, Gray. - TRANSPARENCY : Adds or removes transparency from the masking area. - SEL POS/ XPOS/ YPOS : Adjust the size and position of the selected area. - RETURN : Return to the SPECIAL menu.
- Page 30 camera operation - MOTION : This product MOTION DET generates signals DET. SIZE each time an object DET. AREA movement is detected NON DET. AREA in the four areas of 4. INDICATOR the screen so efficient ALARM OUT monitoring can be RETURN achieved.
- Page 31 - INTELLIGENCE : Set the intelligent INTELLIGENCE video detection SENSITIVITY ---- ---- function. DET. SIZE y SENSITIVITY : Set the sensitivity 3. FENCE of the motion 4. APPEAR detection. When 5. INDICATOR you adjust the ALARM OUT higher level, the RETURN more sensitive.
- Page 32 camera operation 2) AREA FENCE AREA FENCE - SEL POS : Selects a SEL POS POS1 position from X POS ------ POS1 ~ POS4. Y POS ------ - X POS / Y POS : Adjust DIRECTION the size and position of the RETURN selected area fence.
- Page 33 Before use, set the max/min movement size within the range. Depending on the shape of an object, there can be errors in size detection. From the top of the screen, a max of sixteen objects can be expressed. If the camera shoots an object a short distance away, the video analysis function can be degraded. In the following cases, motion detection or video analysis event performance can be degraded or malfunctions can occur.
- Page 34 troubleshooting TroublEshooTing If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problems Troubleshooting Nothing appears on the screen. y Check that the power cord and line connection between the camera and monitor are properly connected.
- Page 35 specifications sPECifiCaTions sCV-5081rn sCV-5081rP Video Imaging Device 1/3” 1.3M CMOS Total Pixels 1304(H) x 1074(V) Effective Pixels 1296(H) x 1032(V) Progressive Scan Scanning System Synchronization Internal Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz Color : 1000 TVL Horizontal Resolution B/W : 1000 TVL...
- Page 36 1 Out Alarm Coaxial Control ( SPC-300 Compatible ),RS-485 Communication Coax : Pelco-C (Coaxitron) Protocol RS-485: Samsung-T, Samsung-E, Pelco-D, Pelco-P, Panasonic, Bosch, Honeywell, Vicon, AD, GE IR Distance Environmental Operating Temperature -30°C ~ +55°C / Less than 90% RH ※ Start up should be done at above -10°C...
- Page 37 DimEnsion Unit: mm English_37...
