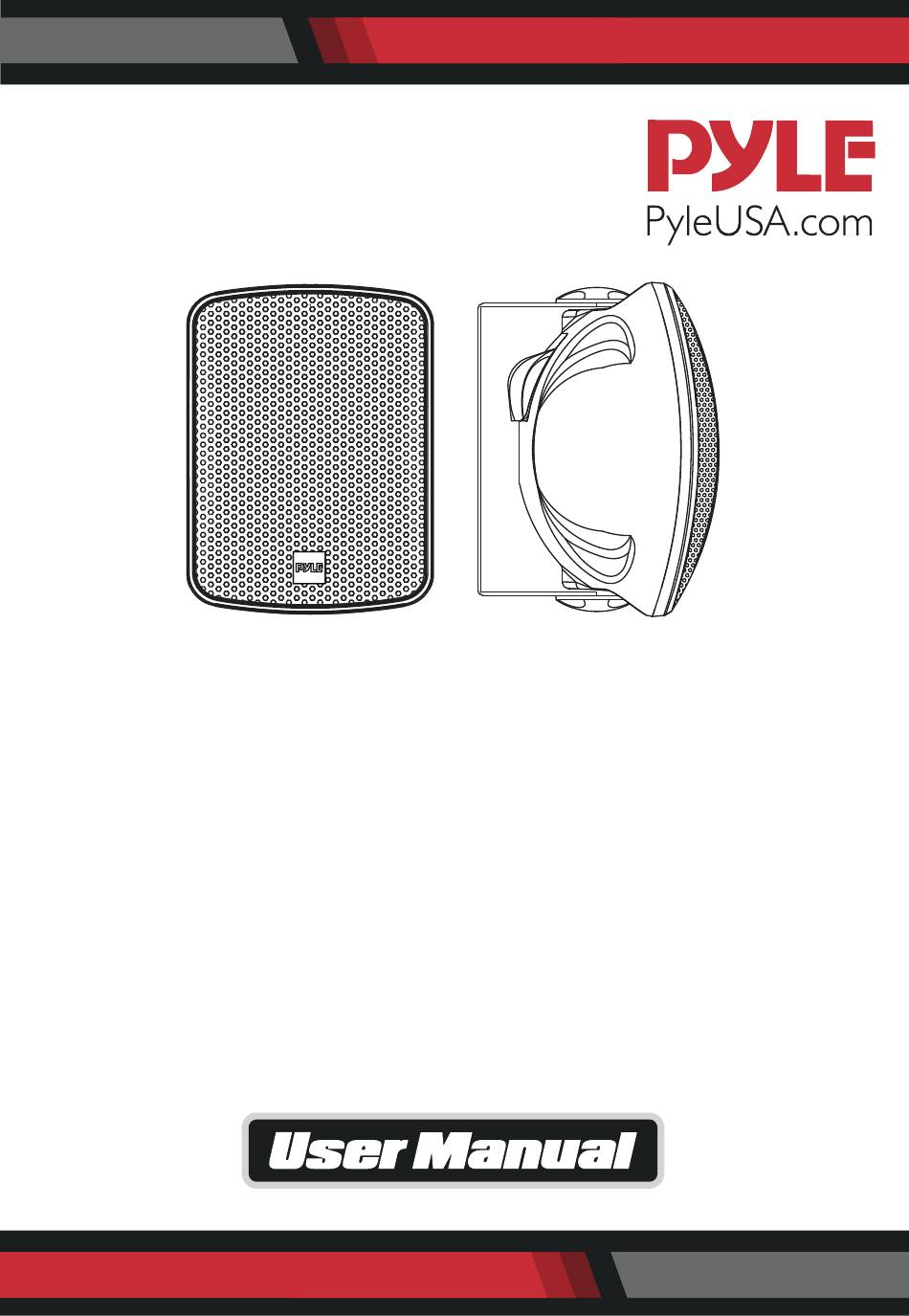

- Page 1 PDWR55BTRFB PDWR55BTRFW Dual 5.25’’ Wall-Mount Marine Speakers, Active Powered Speaker System, Indoor/Outdoor Water Resistant Speakers PDWR65BTRFB PDWR65BTRFW Dual 6.5’’ Wall-Mount Marine Speakers, Active Powered Speaker System, Indoor/Outdoor Water Resistant Speakers...
- Page 2 ● Integrated Wireless RF Audio Module Streaming Ability ● LED Connection Indicator Light ● Selectable Radio Frequency Switches to Connect ● Wireless BT Streaming Network Name:"PYLE Audio" Additional Systems ● Wireless Range: 100'+ Ft. ● Gold Plated Binding Post Speaker Plugs ●...
- Page 3 ● Integrated Wireless RF Audio Module Streaming Ability ● LED Connection Indicator Light ● Selectable Radio Frequency Switches to Connect ● Wireless BT Streaming Network Name:"PYLE Audio" Additional Systems ● Wireless Range: 100'+ Ft. ● Gold Plated Binding Post Speaker Plugs ●...
- Page 4 UNLIMITED SLAVE SPEAKER (A2, A3, A4..) CONNECTION QUANTITY AS LONG AS THEY ARE WITHIN 30M OF RADIUS AWAY FROM MASTER SPEAKER (A1) Slave With Amplifier, Master Wireless BT & RF RX With Amplifier, Wireless BT & RF TX Slave With Amplifier, Wireless BT &...
-
Page 5: Led Indicator
LED INDICATOR Status Master Slave POWER ON RF CONNECTION BLUE (Shake Hand Between Master & Slave Speakers) Wireless BT Streaming CONNECTION BLUE BLUE (RF was Connected) RCA LINE IN BLUE (RF was Connected) WIRELESS BT STREAMING CONNECTION Please be sure the Wireless BT Streaming is turned on at your device. When the device is in BT range, it will connect BT automatically and will be diconectted automatically when it is out of BT range. -
Page 6: Packaging Contents
DIMENSIONS MODEL (L x W x H) PDWR55BTRFB 5.75'' x 7.09'' x 9.88'' 159 x 180 x 251mm PDWR55BTRFW PDWR65BTRFB 7.28'' x 9.25'' x 13.0'' 198 x 235 x 330mm PDWR65BTRFW *RF Frequency Rotray to 1 Frequency: 865MHz Rotray to 2 Frequency: 865.5MHz Rotray to 3 Frequency: 866MHz Rotray to 4 Frequency: 866.5MHz... -
Page 7: Mounting The Bracket
MOUNTING MOUNTING THE BRACKET: 1. Remove the bracket knobs and the bracket from the speaker. 2. Hold the bracket up to the mounting surface. The speaker can be mounted either horizontally or vertically. Hold the bracket so that the speaker wire fits through the large, circular wire hole in the bracket. - Page 8 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
