LED Mode Select Button and Indicator LEDs

To optimize the amount of information displayed for each of the switch ports
without overwhelming you with LEDs, the Switch 2800 Series devices use a
single LED for each port. The operation of this LED is controlled by the LED
Mode select button, and the current setting is indicated by the LED Mode
indicator LEDs near the button. Press the button to step from one view mode
to the next.

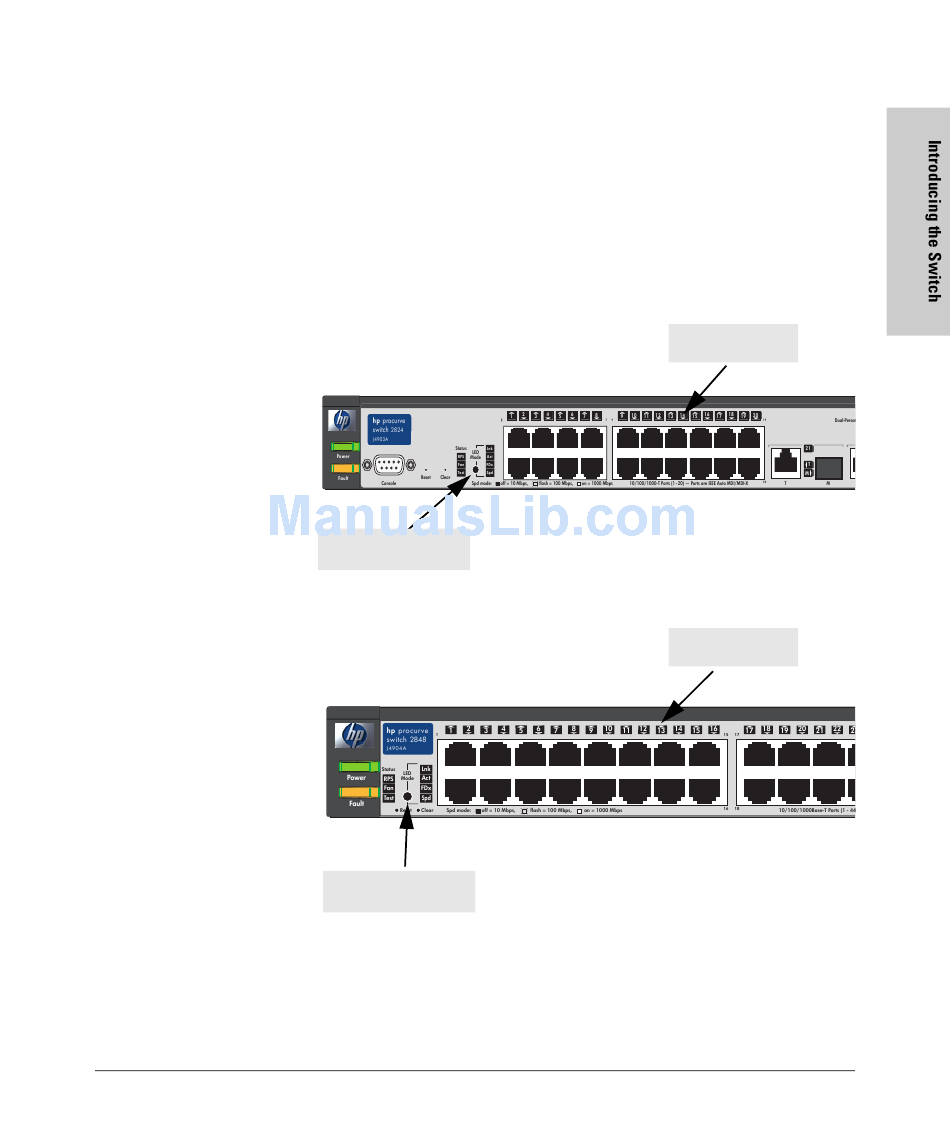

LED Mode select button
and indicator LEDs
LED Mode select button
and indicator LEDs
Introducing the Switch
Front of the Switch
Port LED
(one for each port)
Port LED
(one for each port)
1-7
