SIMPLE MANUAL
Wireless
Rear Speakers Kit
SPQ8-S
MFL71890803
2201_Rev01 Copyright © 2022 LG Electronics Inc. All Rights Reserved.
SPQ8-S.DAUSLLK_SIMPLE (Sheet)_MFL71890803.indd 1-3
(Compatible LG Wi-Fi Sound Bar)
www.lg.com
ENGLISH
Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com or scan QR code and then download
Owner' s Manual. Some of the content in this manual may differ from your product.

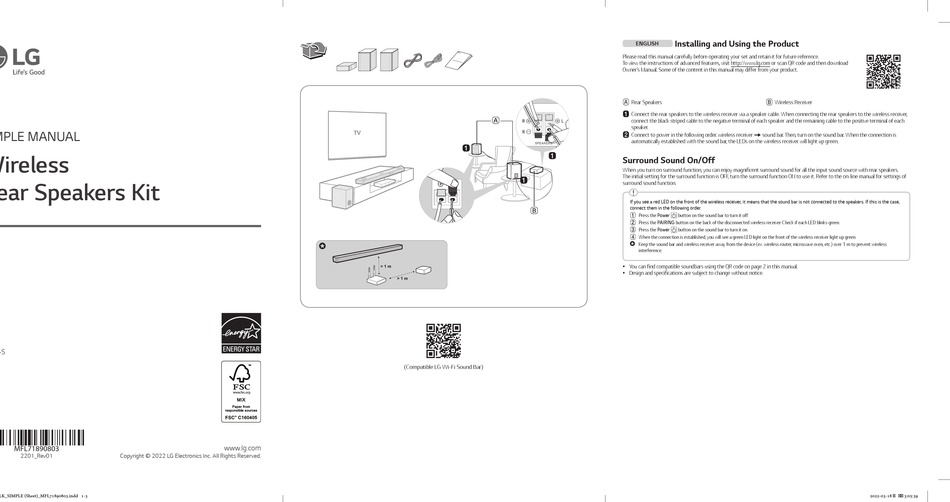

A Rear Speakers
a Connect the rear speakers to the wireless receiver via a speaker cable. When connecting the rear speakers to the wireless receiver,
A
connect the black striped cable to the negative terminal of each speaker and the remaining cable to the positive terminal of each
speaker.
b Connect to power in the following order: wireless receiver [ sound bar. Then, turn on the sound bar. When the connection is
automatically established with the sound bar, the LEDs on the wireless receiver will light up green.
a
a
Surround Sound On/Off
When you turn on surround function, you can enjoy magnificent surround sound for all the input sound source with rear speakers.
The initial setting for the surround function is OFF, turn the surround function ON to use it. Refer to the on-line manual for settings of
a
surround sound function.
If you see a red LED on the front of the wireless receiver, it means that the sound bar is not connected to the speakers. If this is the case,
connect them in the following order.
B
A Press the Power
B Press the PAIRING button on the back of the disconnected wireless receiver. Check if each LED blinks green.
C Press the Power
D When the connection is established, you will see a green LED light on the front of the wireless receiver light up green.
Keep the sound bar and wireless receiver away from the device (ex. wireless router, microwave oven, etc.) over 1 m to prevent wireless
interference.
y You can find compatible soundbars using the QR code on page 2 in this manual.
y Design and specifications are subject to change without notice.
Installing and Using the Product
B Wireless Receiver
button on the sound bar to turn it off.
button on the sound bar to turn it on.
