Delta 15960T-DST Series Manual

Single handle lavatory touch centerset faucets - recommended for use on non metallic sinks
Hide thumbs Also See for 15960T-DST Series:
Table of Contents

Advertisement

Quick Links

Download this manual
U P
C
®
®
ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
ICC/ANSI A117.1
Model/Modelo/Modèle
538T-DST, 15938T-DST &
15960T-DST
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
SINGLE HANDLE LAVATORY TOUCH CENTERSET
64598
FAUCETS - RECOMMENDED FOR USE ON
NON METALLIC SINKS
LLAVES DE AGUA – GRIFOS – MONOMANDO
MONOBLOC PARA LAVAMANOS – SE RECOMIENDA
PARA EL USO EN LAVAMANOS NO METÁLICOS
ROBINETS CENTERSET TACTILES À UNE MANETTE
POUR LAVABO - RECOMMANDÉS POUR UNE
UTILISATION SUR DES LAVABOS NON MÉTALLIQUES
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
T E FLO N
1/8"
64598
1
6/2/11
Rev. B

Advertisement

Table of Contents
loading

Related Manuals for Delta 15960T-DST Series

Summary of Contents for Delta 15960T-DST Series

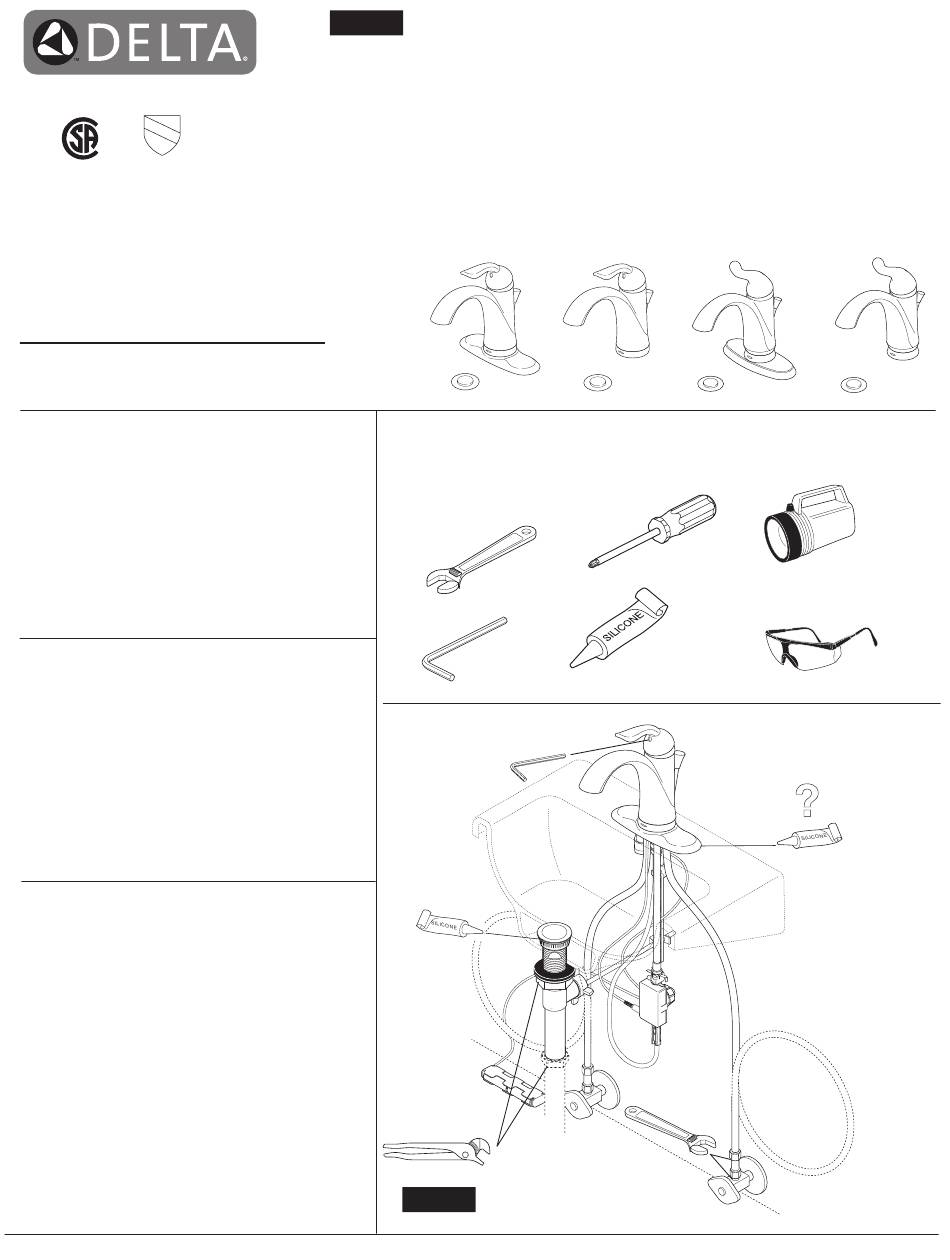

  • Page 1 T E FLO N • To READ ALL the instructions completely before beginning. • To READ ALL warnings, care, and maintenance information. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente 1/8" antes de empezar.

  • Page 2: Cleaning And Care

    IS THE EXCLUSIVE WARRANTY BY DELTA FAUCET COMPANY, WHICH DOES NOT ® be free from defects in material & workmanship for a period of 5 years. Delta Faucet Company MAKE ANY OTHER WARRANTY OF ANY KIND, INCLUDING THE IMPLIED WARRANTY recommends using a professional plumber for all installation &...
  • Page 3 64598 Rev. B...
  • Page 4 For Three Hole Mount For Single Hole Mount Para Las Instalaciones De Tres Agujeros Para Las Instalaciones De Un Agujero Montage Sur Trois Trous Montage sur un trou Back Front For three hole mount: For single hole mount: Slide spacer with LED (1), foam gasket (2) and escutcheon (3) up over tubes, Slide spacer with LED (1) and single hole gasket (2) up over tubes LED wire and mounting stud.

  • Page 5: Solenoid Installation

    Solenoid Installation From underneath the sink, slide the solenoid assembly (1) onto the valve Push hose end (1) onto solenoid assembly outlet (2). Attach clip (3) outlet (2). Make sure that the assembly is fully engaged; then, slide the metal over hoses as shown.

  • Page 6: Wire Connections

    Wire Connections Slide wire connector (4), coming from the solenoid, Place battery pack at a convenient location as over the mounting stud (5). Secure wire with second close to the floor as possible (place flat on Briefly touch the cold stop or other ground to dissipate nut (6) using wrench (7).
  • Page 7 DEMASIADO. Repita los pasos A & B en el tope del permite crear una articulación sin filtraciones. tubo: cuidadosamente haga un corte adicional, Delta no se responsabiliza por las tuberías que se agua caliente. teniendo cuidado de no cortar el tubo demasiado corto.
  • Page 8 Incorrect Installation Correct method Instalación Incorrecta Método Correcto Installation Incorrecte Bonne méthode Do not install sleeve Ensure cut is straight. upside down. No instale la manga Asegúrese que el Custom Fit Connections - Plastic Sleeve Installation Instructions boca abajo. corte esté recto. 1.
  • Page 9 Pop-Up Pop-up provided must be installed for proper faucet operation. Remove stopper (1) and flange (2). Screw nut (3) all the way Remove pivot nut (1). Install horizontal rod (2) and stopper (3) down. Push gasket (4) down. as removable (4) or non-removable (5). Hand tighten nut (1). Gaskets (6) only required if supplied.
  • Page 10 Check all connections at arrows for leaks. Retighten if necessary, but do Remove aerator (1) using supplied wrench (2) and turn faucet handle (3) to not overtighten. the full on mixed position. Turn on hot and cold water supplies (4) and flush water lines for one minute.
  • Page 11 Setting The Handle Limit Stop (Optional) this handle limit stop will not always prevent scalding because it This faucet includes an integrated handle limit stop that has two positions. Position 1, to the left, allows full handle motion (the full range does not compensate for incoming pressure or sudden water between “all cold”...

  • Page 12: Maintenance

    Cleaning the Screen / Filtro de Limpieza: / Nettoyage du filtre Note: If red light (8) is blinking 2 seconds on then 2 seconds off, call Delta Customer Service at 1-800-345-DELTA. Nota: Si la luz roja (8) está destellando durante 2 segundos cuando está pren- dido y 2 segundos cuando está...
