EGG6042
EN
Hob
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EGG6042

Summary of Contents for Electrolux EGG6042

  • Page 1 EGG6042 User Manual...

  • Page 2: Table Of Contents

    10. ENERGY EFFICIENCY.................. 16 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
  • Page 3 ENGLISH injuries and damages. Always keep the instructions with the appliance for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 • years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 4: Safety Instructions

    If the supply cord is damaged, it must be replaced by • the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard. Where the appliance is directly connected to the • power supply, an all-pole isolating switch with a contact gap is required.
  • Page 5 ENGLISH • Do not let the electricity mains cable • The information about the gas supply tangle. is on the rating plate. • Make sure that a shock protection is • This appliance is not connected to a installed. device, which evacuates the products •...
  • Page 6 • Do not let acid liquids, for example WARNING! vinegar, lemon juice or limescale Risk of damage to the remover, touch the hob. This can appliance. cause matt patches. • Do not keep hot cookware on the 2.5 Care and cleaning control panel.

  • Page 7: Product Description

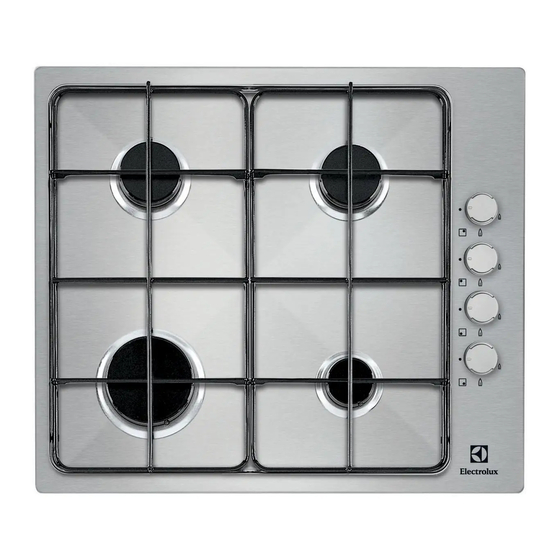

    ENGLISH 3. PRODUCT DESCRIPTION 3.1 Cooking surface layout Rapid burner Semi-rapid burner Auxiliary burner Control knobs 3.2 Control knob Symbol Description Symbol Description ignition position / maxi‐ mum gas supply no gas supply / off posi‐ tion minimum gas supply 4.

  • Page 8: Hints And Tips

    If If the burner accidentally not, the gas supply is interrupted. goes out, turn the control 3. Adjust the flame after it is regular. knob to the off position and try to light the burner again If after some tries the burner after minimum 1 minute.

  • Page 9: Care And Cleaning

    ENGLISH CAUTION! Burner Diameter of Make sure that the pots are cookware placed centrally on the (mm) burner in order to get maximum stability and to get Rapid 180 - 260 lower gas consumption. Semi-rapid 120 - 220 5.2 Diameters of cookware Auxiliary 80 - 180 Use cookware with...

  • Page 10: Troubleshooting

    6.5 Periodic maintenance Speak to your local Authorised Service Centre periodically to check the 7.

  • Page 11: Installation

    ENGLISH 7.3 Labels supplied with the accessories bag Stick the adhesive labels as indicated below: MOD. MOD. MOD. TYPE PROD.NO. IP20 PROD.NO. PROD.NO. SER.NO. 0049 SER.NO SER.NO 03 IT DATA DATA MADE IN ITALY A) Stick it on Guarantee Card and send C) Stick it on instruction booklet.
  • Page 12 However, if the room has a door which opens directly to the outside no air vent is required even if the volume is between 5 m³ and 11 m³. If there are other fuel burning appliances in the same room, B.S. 5440 Part 2...
  • Page 13 ENGLISH 8.4 Injectors replacement WARNING! Make sure the flame does 1. Remove the pan supports. not go out when you quickly 2. Remove the caps and crowns of the turn the knob from the burner. maximum position to the 3. With a socket spanner 7 remove the minimum position.
  • Page 14 8.7 Replacement of the Before carrying out the connection, make sure: connection cable 1. The limiter valve and the electrical The replacement of electric system can take the appliance load cable must be carried out (see the rating plate) exclusively by the service 2.

  • Page 15: Technical Information

    ENGLISH 8.8 Building In 8.9 Possibilities for insertion The panel installed below the hob must be easy to remove and let an easy min. 600 mm access in case a technical assistance intervention is necessary. min. 650 mm min. 100 mm Kitchen unit with door min.

  • Page 16: Energy Efficiency

    9.3 Other technical data Gas original: G20 (2H) 20 mbar = 8 kW TOTAL POWER: Gas replacement: G30 (3+) 28-30 mbar = 567 g/h G31 (3+) 37 mbar = 557 g/h Electric supply: 220-240 V ~ 50/60 Hz 3 core flexible cable with non rewireable plug fitted with a 3...
  • Page 17 ENGLISH Left rear - Semi-rapid 59.2% Right rear - Semi-rapid 59.2% Energy efficiency per gas burner (EE gas burner) Right front - Auxiliary not applicable Left front - Rapid 57.4% Energy efficiency for the gas hob 58.6% (EE gas hob) EN 30-2-1: Domestic cooking appliances burning gas - Part 2-1 : Rational use of energy - General 10.2 Energy saving...
  • Page 18 www.electrolux.com...
  • Page 19 ENGLISH...
  • Page 20 www.electrolux.com/shop...
