HP Ergo 1600 Color Display (D2845A)

(CPL November 1996)

The HP Ergo 1600 (D2845A) is a 21-inch color display. It can be used with a

Hewlett-Packard personal computer (or equivalent) equipped with an HP Ultra

VGA video solution (or equivalent).

Controls, Indicators and Adjustments

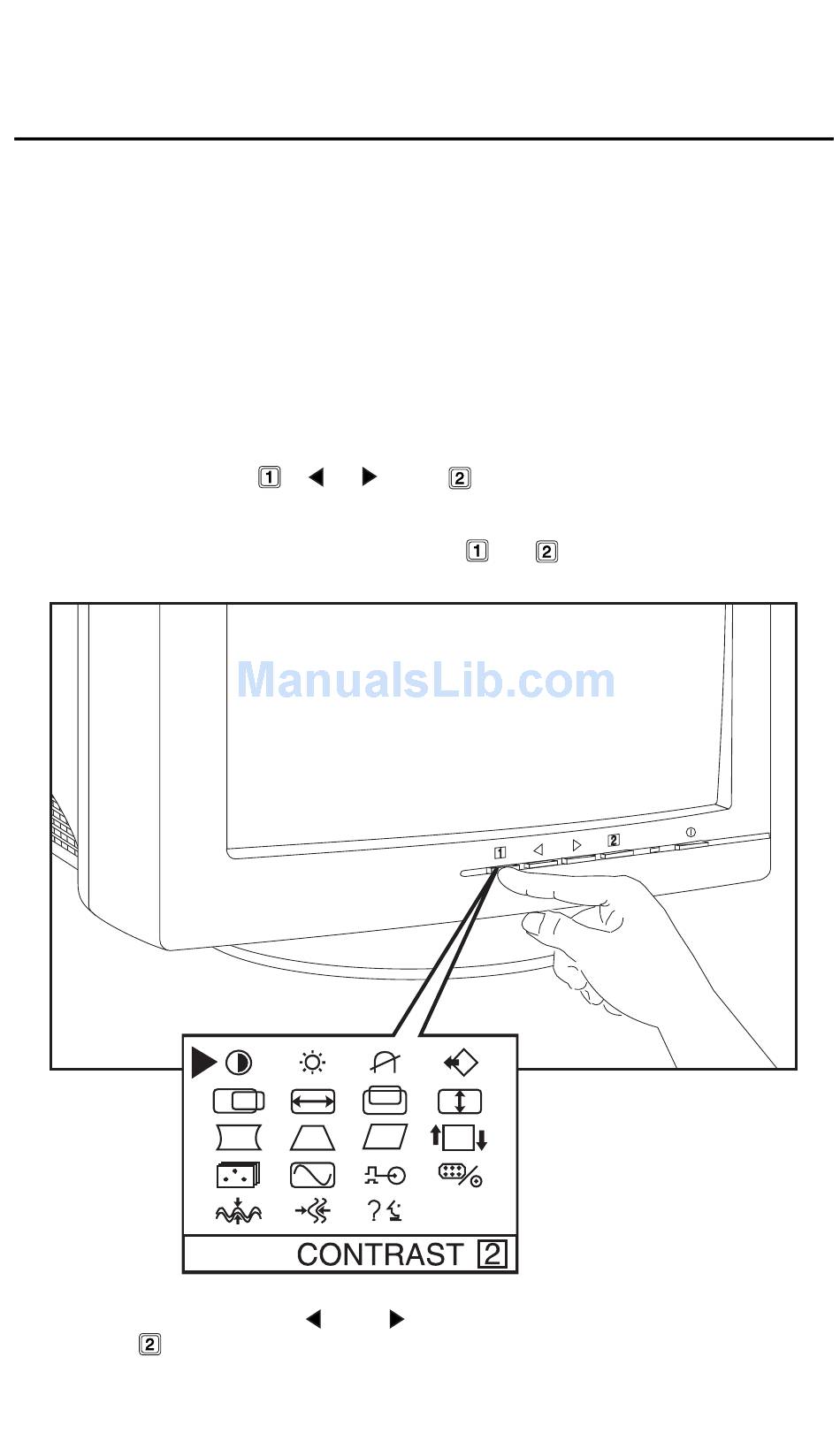

Contrast, brightness, size, position, and shape of screen image may be adjusted

using on screen menus. The on screen menus may be displayed and

manipulated using the

, and

buttons on the front panel of the

display.

To display the main menu, press either the

control buttons.

To select an option, use the

and

buttons to scroll to the icon required,

then press

to confirm your choice.

Page 1 HP Ergo 1600 Color Display (D2845A) (CPL November 1996) The HP Ergo 1600 (D2845A) is a 21-inch color display. It can be used with a Hewlett-Packard personal computer (or equivalent) equipped with an HP Ultra VGA video solution (or equivalent).
Page 2 D2845A Once selected, make any necessary adjustments to the option chosen using the Adjusting the Quality of the Displayed Image LANGUAGE CONTRAST BRIGHTNESS COLOR TEMP. DEGAUSS H MOIRE V MOIRE control buttons as directed. To select the required language, use this option. To adjust the contrast (image white level), use this option.
Page 3 Adjusting the Size, Shape and Position of the Image RECALL DISP . FREQ. To adjust the horizontal or vertical size of the displayed image, select the and use the To adjust the horizontal or vertical position of the displayed image, select the and use the To adjust the displayed image if its vertical edges appear to bow in or out, select the...
Page 4 A five BNC connector cable may also be used. VIDEO LEVEL To select the video signal level used by your PC, use this option. 0.66V is used by HP Vectra and equivalent PCs, and 1.0V is used for some other types of computers.
